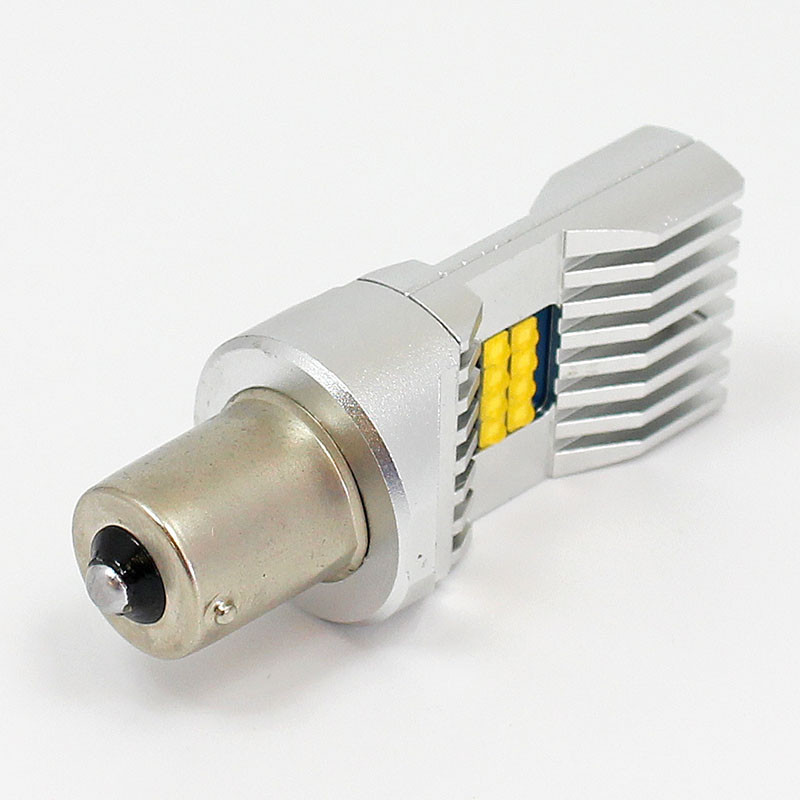

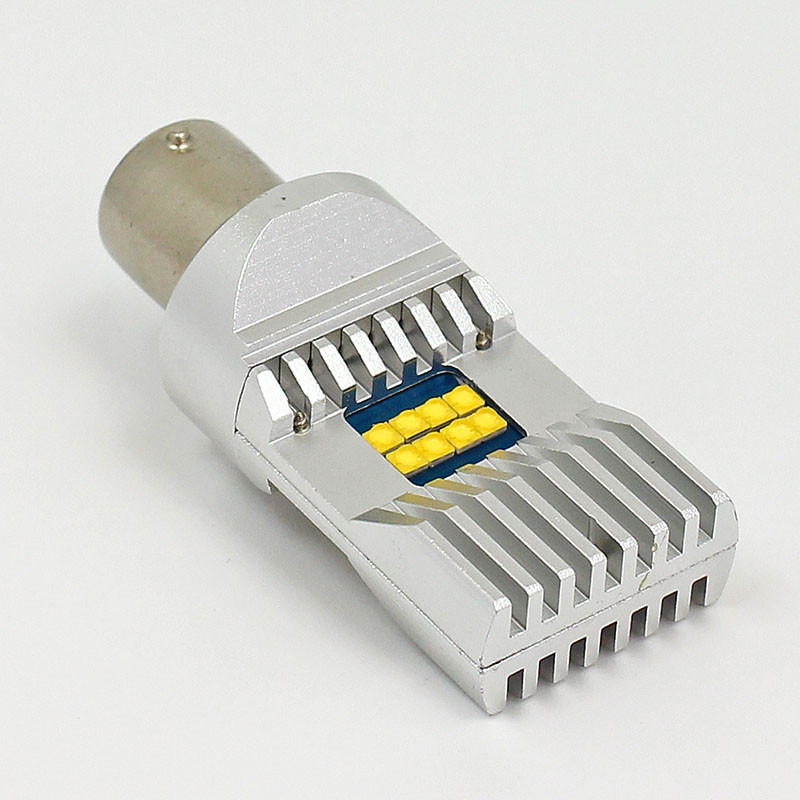

BA15SLED-S30TR - Warm White premium 12 & 24V LED Headlamp - SCC BA15S base

High quality 16 x Cree 2525 (with heatsink) LED upgrade for SCC BA15S head and spot lamp bulbs from the '20s to the '50s. Flexible application - suitable 12 or 24V vehicles and compatible with either negative or positive earth systems. Horizontal LED arrangement equivalent to Transverse filament. 1200 Lumen warm white beam with a soft beam pattern.

Brighter than 12V incandescent bulb B57 (36W) in testing. Very low current draw - over 75% less than incandescent and halogen bulbs so great for low powered, vintage electrical systems (800mA at 12V, 1.6A at 6V). 3000K warm, white colour temperature.

This bulb is a great LED upgrade alternative to a number of 12 and 24V bulbs from 24 to 36W including B57 and B796. Made from aviation grade aluminium. These bulbs don't have an integral lens so can be used in tripod type lamps.

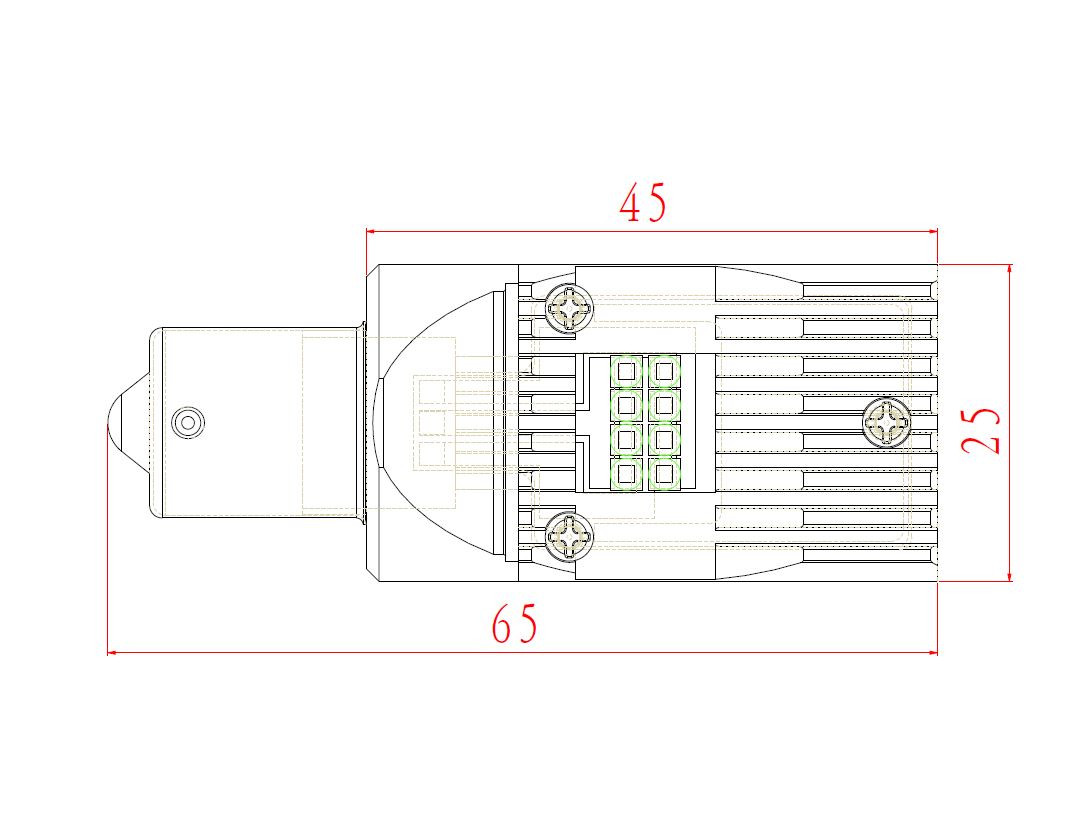

Please see part numbers BA15SLED-S30TR-6P and BA15SLED-S30TR-6N for 6V positive and negative earth applications and BA15SLED-S43TR for a 6000k bright white colour temperature. 65mm total bulb height, 12 x 25mm LED section, 15mm diameter cap.
