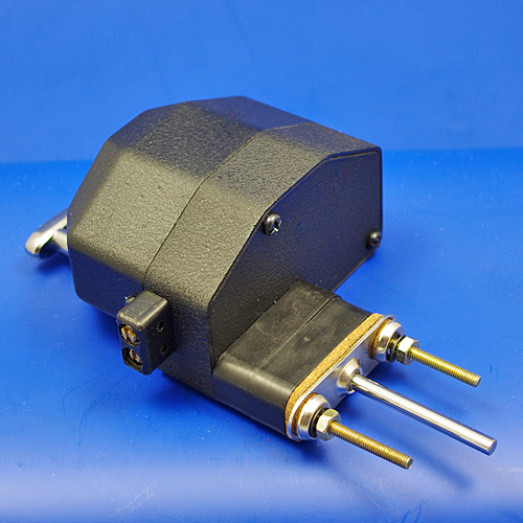

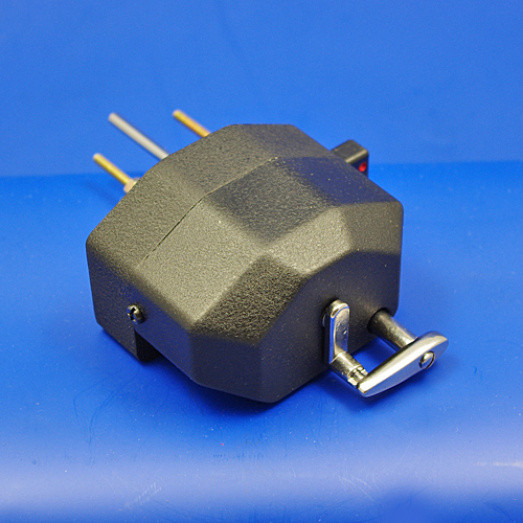

656 - wiper motor Lucas CWX type

Wiper motor, equivalent to Lucas type CW1. 12 and 6 volt, as fitted to many early cars for mounted on to windscreen frame. Only 6 volt currently available - which can be fitted on 12v vehicles in conjunction with a with a DC12V/24V to DC6V 15A 90W waterproof step-down voltage regulator available on ebay for approximately £15 - which worked very well in testing here, with a powerful wiper action. Re-manufactured item, incorporating on/off switch and 'wiper park' facility. Black crackle finish. Body size approx 90mm wide x 56mm high x 68mm deep. (knobs additional 20mm to depth). Drive shaft approx 5mm, mounting studs at 38mm centres. approx sweep of 125 degree.

After considerable problems with original units, we spent considerable time in correcting the erratic starting problems which occurred, by having a different new armature made amongst other small modifications, and our tests appear to have eliminated the previously known problems.
