836A - PLC5 ignition/light switch

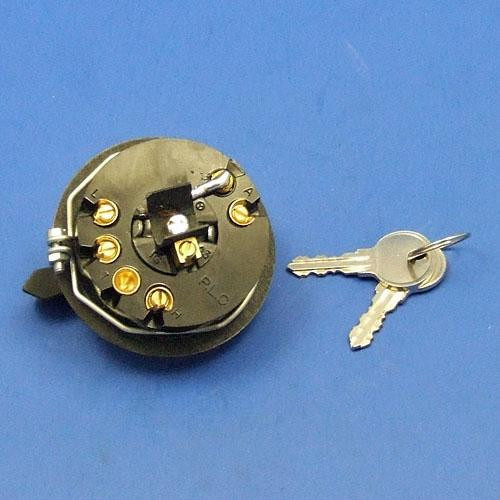

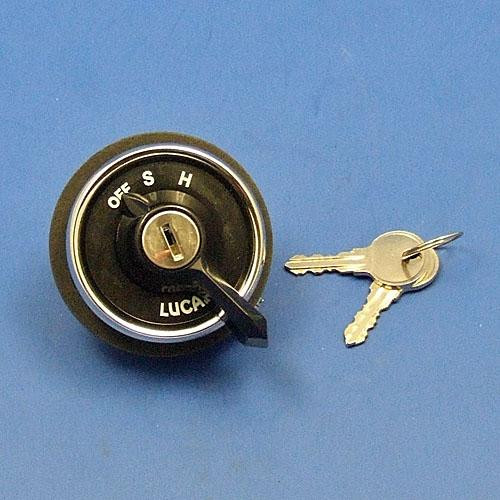

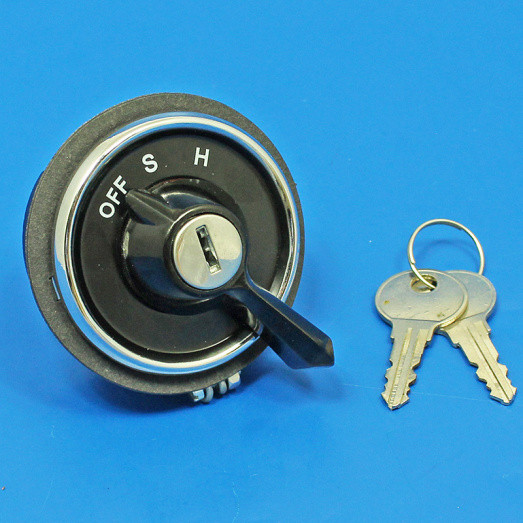

PLC5 type combined key on/off and off/side/head lamp switch. Approx 56mm diameter (requires 53mm hole in metal dash panel). The off/side/head positions are printed on the black face panel. Screw terminals to rear.

Fitting instructions

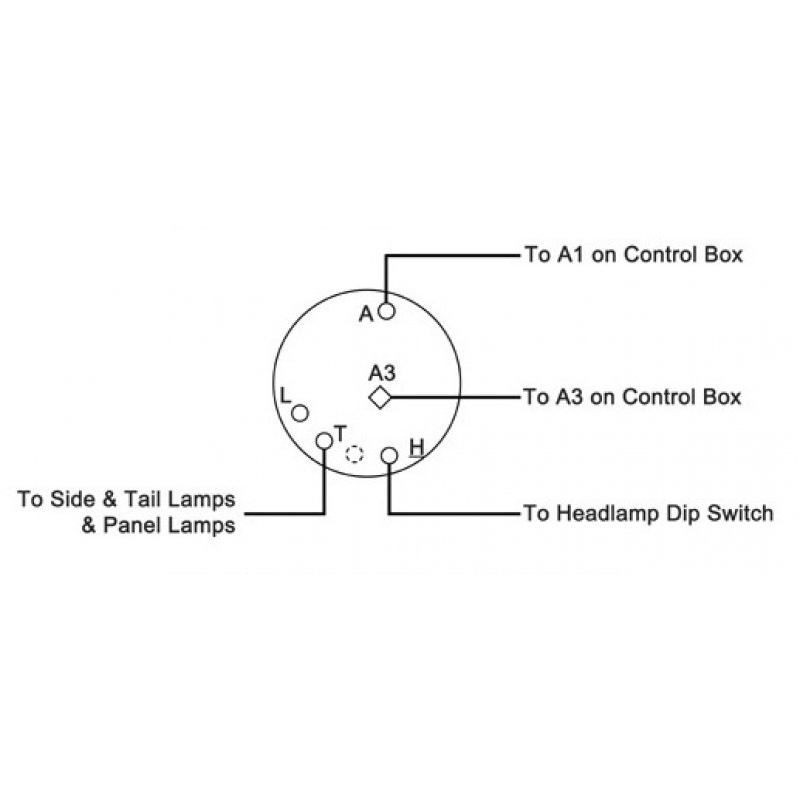

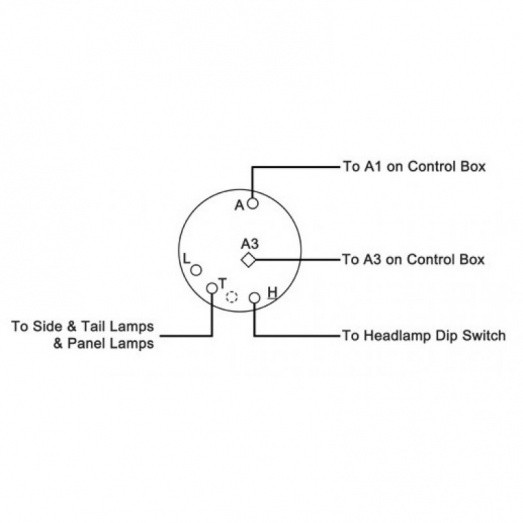

836 PLC Switch Wiring Instructions
