Andre Hartford shock absorber model 306S, powder coated, ready to fit. One blade into two blades at friction end 5" (125mm) diameter, rolled edges, early type double star springs on the front with pressure disc plate on the rear, one arm with pressed rivet end with rubber bush & inner tube, and single mounting plate 3 ½” (88mm) wide with 4 mounting holes 2 ½” (63mm) centres across, 1 3/8” (35mm) centres vertically. Mounting plate is an extension of the centre disc.

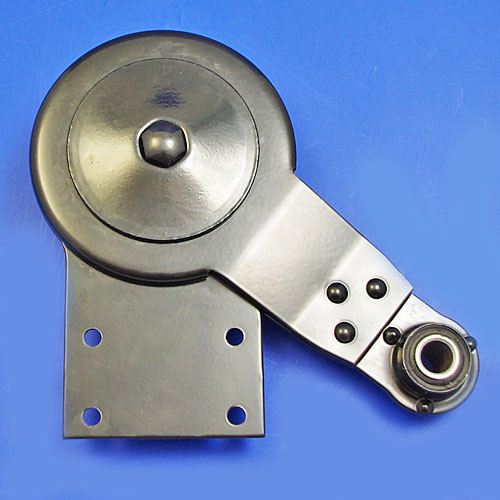

Illustration shows 306S with 6” single arm with mounting plate as fitted on the rear of MG J & P range. Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard arm length measured in full inches. An extra £9 additional charge applies for an arm length measured in 1/2 inches.
For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal lead time before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering
