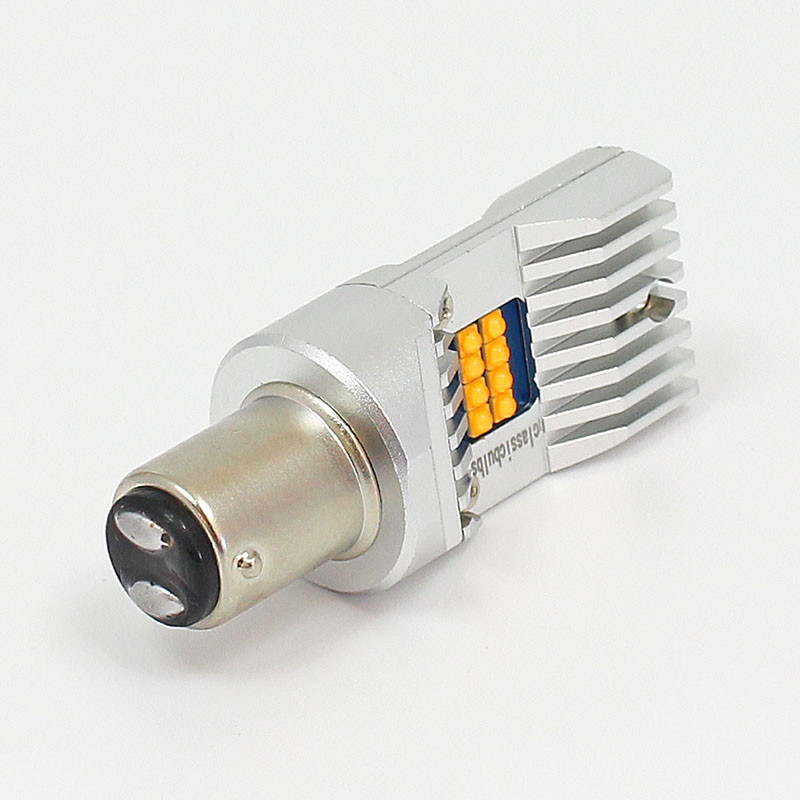

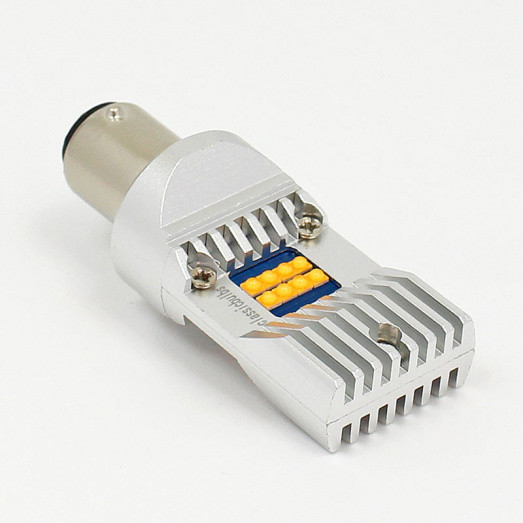

High-quality 16 x Cree 2525 (with heatsink) WARM WHITE LED upgrade for SBC BA15D headlamp bulbs from the '20s to the '50s. Flexible application - suitable 12 or 24V vehicles and compatible with either negative or positive earth systems. High and low beam - 1800 Lumen high beam, 1200 Lumen low beam - with a soft beam pattern.
One row of LEDs lights up on each side of the bulb for low beam and both rows of LEDs lights up on both sides for high beam, replicating original, unshielded, twin filament bulbs. Very low current draw - over 75% less than incandescent and halogen bulbs so great for low-powered, vintage electrical systems (800mA at 12V, 1.6A at 6V). 3000K warm, white colour temperature.
This bulb is a great LED upgrade alternative to a number of 12 and 24V bulbs from 24/24 to 45/35W including B171B, B1248B and B194. In testing, it proved significantly brighter than B1248B at 45/35W. Made from aviation-grade aluminium.

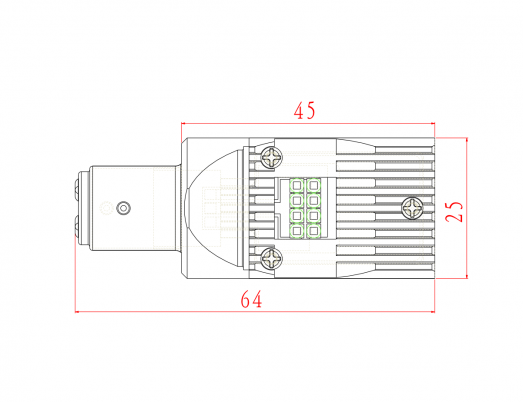

These bulbs don't have an integral lens so can be used in tripod-type lamps. Please see part number BA15DLED-H43 for a 4300k, bright white colour. Also part numbers BA15DLED-H30-6P and BA15DLED-H30-6N for 6V positive and negative earth applications respectively. Total bulb length 65mm, with a 12 x 25mm LED section. 15mm diameter cap.
| Base | Volts | Watts/Amps | Element | Colour | Application |
|---|---|---|---|---|---|
| SBC BA15D | 12, 24 | LED | Warm White | Headlamp |
