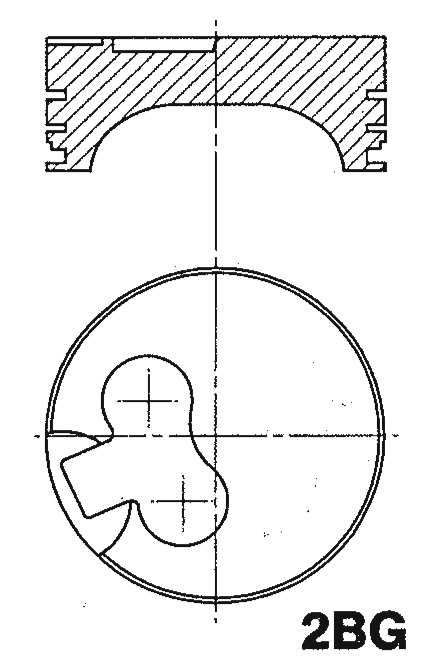

Maestro/Montego 2.0 Diesel (non turbo) Perkins prima
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
84.44 | 77 | 47.95 | 28 | 3.324409 | 3.031496 | 1.887795 | 1.102362 |
Mini 850
5 ring - dish top - pinch bolt
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
62.9158 | 69.0118 | 38.0492 | 15.875 | 2.477 | 2.717 | 1.498 | 5/8 |
4 cyl piston set 16224 for Austin - 1622cc OHV J2/J4, 10/18 Cwt. Omnivan/Omnitruck/Omnicoach. CR 7.2 to 1.
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
76.1873 | 76.99375 | 42.06875 | 2.9995 | 3 1/32 | 1 21/32 |
Bedford / Vauxhall
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
79.375 | 79.0448 | 45.593 | 19.05 | 3 1/8 | 3.112 | 1.795 | 3/4 |
Austin
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
72 | 74.6125 | 38.1 | 15.875 | 2.834646 | 2 15/16 | 1 1/2 | 5/8 |
6 cyl piston set 1965 for Chevrolet - 26h.p. LQ, LR, LT, BB, NA, NB, NC, ND, CU, 1/2, 1 1/2 Ton
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
84.1375 | 93.6625 | 47.625 | 25.146 | 3 5/16 | 3 11/16 | 1 7/8 | 0.99 |
6 cyl piston set 3766 for Morris - 17.9h.p. D, 4 cyl, 26.8h.p. Y, Viceroy 6 cyl
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
85 | 95.25 | 44.45 | 22.225 | 3.346457 | 3 3/4 | 1 3/4 | 7/8 |
1 cyl piston set 4330 for Lister - 5 h.p. B Type (Petrol)
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
114.3 | 114.3 | 50.8 | 25.4 | 4 1/2 | 4 1/2 | 2 | 1 |
6 cyl piston set 4975 for Dodge - 27.3h.p. ED, OD, JD, TD, YD, BE, DET, GE, HE, Iem JE, LE, Mem OE, RE, SE, TE, YE, F35, F36, DA120, DA130, DA133, DA140, DA150, DA165, 135, 150, 165, 185
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
85.725 | 100.0125 | 58.7375 | 21.828125 | 3 3/8 | 3 15/16 | 2 5/16 | 55/64 |
1 cyl piston set 5246 for Morris - 24.8h.p. 3519cc SV, C, CD, CV Series 1 1/2 - 5 ton
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
100 | 107.95 | 57.15 | 26.9875 | 3.937008 | 4 1/4 | 2 1/4 | 1 1/16 |
6 cyl piston set 5940 for REO - 450, 450L, 475, 475L Silver Crown 4 cyl, IA4, IA4Y, 6AP, IC4/Y, IL4, IL5, ILC5, 650, 650L, 675, 675L 6 cyl
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
80.9625 | 90.4875 | 50.8 | 21.828125 | 3 3/16 | 3 9/16 | 2 | 55/64 |
4 cyl piston set 7168 for Standard - 10h.p. in 12h.p. chassis, 4 cyl
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
63.5 | 78.75 | 45.5 | 19.05 | 2 1/2 | 3.100394 | 1.791339 | 3/4 |
6 cyl piston set 7539 for Chevrolet - 26.3h.p. AC, AD, AE, BA, CA, CC, DA, EA, ED, FA, FD, DC, EC, FC, Standard, Master
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
84.1375 | 93.6625 | 47.625 | 25.146 | 3 5/16 | 3 11/16 | 1 7/8 | 0.99 |
4 cyl piston set 7591 for Vulcan - 25.8h.p. Duchess 5VF, 6VF1/2/3 Tipper 5-6 ton
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
102 | 111.125 | 60.325 | 25.4 | 4.015748 | 4 3/8 | 2 3/8 | 1 |
6 cyl piston set 7672 for Austin - 13.9h.p. 1496cc Twelve Six, 12h/p/ 10cwt
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
61.214 | 63.5 | 33.3375 | 14.2875 | 2.41 | 2 1/2 | 1 5/16 | 9/16 |
6 cyl piston set 7683 for Vauxhall - 12h.p. 1531cc DY, Twelve Six, 6 cyl
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
57 | 75.40625 | 39.6875 | 19.05 | 2.244094 | 2 31/32 | 1 9/16 | 3/4 |
4 cyl piston set 7730 for Hercules - OHC, OOC
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
101.6 | 109.140625 | 53.975 | 25.4 | 4 | 4 19/64 | 2 1/8 | 1 |
4 cyl piston set 7761 for Singer - 8h.p. 848cc, Junior
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
56 | 66.278125 | 30.1625 | 14.2875 | 2.204724 | 2 39/64 | 1 3/16 | 9/16 |
4 cyl piston set 7788 for Triumph - 10h.p. 1097cc Gloria G10
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
62 | 74.6125 | 39.6875 | 15.875 | 2.440945 | 2 15/16 | 1 9/16 | 5/8 |
4 cyl piston set 7798 for Ford - 22h.p. V8 (Export 60h.p.) 73, 82C, 922C, )22C, 92D, 02D, 82Y, 92Y, 02Y, 75, Thames 1/2 to 6 ton C.R 6.6 to 1. Aluminium verson of piston 9036
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
66.04 | 71.040625 | 36.115625 | 17.4625 | 2.6 | 2 51/64 | 1 27/64 | 11/16 |
6 cyl piston set 7809 for Jaguar - SSI 16h.p. 2054cc
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
65.5 | 76.2 | 38.1 | 15.875 | 2.57874 | 3 8.8817841970013E-16/2 | 1 1/2 | 5/8 |
4 cyl piston set 7816 for Standard - 9h.p. 1131cc Flying Nine C.R.6.5 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
60 | 73.025 | 38.1 | 15.875 | 2.362205 | 2 7/8 | 1 1/2 | 5/8 |
4 cyl piston set 7984 for Standard - 10h.p. 1267cc Flying Ten C.R. 6.5 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
63.5 | 73.025 | 38.1 | 19.05 | 2 1/2 | 2 7/8 | 1 1/2 | 3/4 |
4 cyl piston set 8089 for Ford - V8 3.6litre, Pilot V8 {Export 85h.p.) 78, 81A, 91A, 01A, 11A
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
77.7875 | 81.75625 | 45.24375 | 19.05 | 3 1/16 | 3 7/32 | 1 25/32 | 3/4 |
4 cyl piston set 8152 for Vauxhall - 12h.p. 1442cc Twelve Four, I, C.R.6.8 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
69.5 | 93.6625 | 57.94375 | 15.875 | 2.73622 | 3 11/16 | 2 9/32 | 5/8 |
6 cyl piston set 8243 for Vauxhall - 14.6h.p. 1781cc fourteen Six from Engine No. DX 520001, Drilled con-rod type
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
61.5 | 75.40625 | 39.6875 | 19.05 | 2.42126 | 2 31/32 | 1 9/16 | 3/4 |
4 cyl piston set 8535 for Ford - 8h.p. 933cc Anglia, rings above pin
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
56.642 | 65.2526 | 31.115 | 17.4625 | 2.23 | 2.569 | 1.225 | 11/16 |
4 cyl piston set 8674 for Lanchester - 13.4h.p. 1527 cc Roadrider, Fourteen, 6 cyl
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
59.944 | 69.85 | 31.75 | 15.24 | 2.36 | 2 3/4 | 1 1/4 | 0.6 |
4 cyl piston set 8735 for Lanchester - 14.06h.p. 1809 cc Fourteen, Roadrider De Luxe, 6 cyl
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
61.468 | 80.16875 | 44.45 | 17.77 | 2.42 | 3 5/32 | 1 3/4 | 0.699606 |
6 cyl piston set 8765 for Standard - 16h.p. 16/6 2143 cc Sixteen Flying Sixteen
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
65.5 | 77.390625 | 39.290625 | 19.05 | 2.57874 | 3 3/64 | 1 35/64 | 3/4 |
1 cyl piston set 8831 for Royal Enfield - 350 cc OHV WD, Motorcycle
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
69.8754 | 73.81875 | 33.3375 | 19.05 | 2.751 | 2 29/32 | 1 5/16 | 3/4 |
6 cyl piston set 8915 for Commer - 20.9h.p. 15, 20 25cwt, B20, NI
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
75 | 92.25 | 51 | 22 | 2.952756 | 3.63189 | 2.007874 | 0.866142 |
6 cyl piston set 9012 for Austin - 28h.p. 4016cc C.R. 6 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
86.36 | 103.1875 | 58.7375 | 22.225 | 3.4 | 4 1/16 | 2 5/16 | 7/8 |
4 cyl piston set 9036 for Ford - V8 22h.p. 2227cc Utility, V8, 60h.p. Export, 74, 82A, 922A, 022A C.R.6.6 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
66.04 | 71.040625 | 36.115625 | 17.4625 | 2.6 | 2 51/64 | 1 27/64 | 11/16 |
6 cyl piston set 9301 for Austin - 28.3h.p. 6 wheeler 4-wheel drive, twin rear axle K3/YF, 4-wheel drive K3/ZD, K5. Cast Iron piston
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
87.3125 | 93.6625 | 47.625 | 22.225 | 3 7/16 | 3 11/16 | 1 7/8 | 7/8 |
4 cyl piston set 9466 for Hercules - IXK, C.I
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
79.375 | 77.7875 | 36.5125 | 19.05 | 3 1/8 | 3 1/16 | 1 7/16 | 3/4 |
1 cyl piston set 9749 for Douglas - 630cc SV Industrial Air Cooled
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
88.9 | 80.9625 | 47.625 | 22.225 | 3 1/2 | 3 3/16 | 1 7/8 | 7/8 |
4 cyl piston set 10165 for Ford - 10 h.p. 1172cc SV Prefect, Export Anglia, 10cwt. Heplex version of 8743
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
63.5 | 69.85 | 30.95625 | 17.4625 | 2 1/2 | 2 3/4 | 1 7/32 | 11/16 |
4 cyl piston set 10268 for Mercury - 100h.p. V8, 2-3 Ton
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
80.9625 | 81.75625 | 45.24375 | 19.05 | 3 3/16 | 3 7/32 | 1 25/32 | 3/4 |
1 cyl piston set 10520 for Lanchester - 10h.p. 1203 cc Car 20051 Upwards, 1287 cc OHV Ten LD10, CR 7.4 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
63.5 | 73.025 | 38.1 | 17.77 | 2 1/2 | 2 7/8 | 1 1/2 | 0.699606 |
4 cyl piston set 10705 for Morris - 13.4h.p. 1476 cc SV Oxford 1 1/2 Litre, Series MO
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
73.5 | 76.2 | 41.275 | 19.05 | 2.893701 | 3 8.8817841970013E-16/2 | 1 5/8 | 3/4 |
4 cyl piston set 11248 for Hillman - 2810 cc 20/70, 3181 cc Hawk, 80
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
75 | 93 | 51 | 24 | 2.952756 | 3.661417 | 2.007874 | 0.944882 |
4 cyl piston set 11527 for Humber - 16.25h.p. SV 2267 cc Hawk, MkIV, MkV, MkVI. 4 Cyl
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
80.9625 | 93 | 51 | 24 | 3 3/16 | 3.661417 | 2.007874 | 0.944882 |
4 cyl piston set 11613 for Morris - 11.9h.p. 1550cc SV Twelve Four S11 1936 to 37, 11.9h.p. OHV Twelve Four, 'T' Series III 1938 to 41
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
69.5 | 80.5 | 42.5 | 18 | 2.73622 | 3.169291 | 1.673228 | 0.708661 |
4 cyl piston set 11920 for Ford - 10h.p. 1172 cc SV Taunas 12M, Anglia, Prefect, Escort, Squire, 1600 Series
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
63.5 | 74.678 | 45.34 | 17.4625 | 2 1/2 | 2.940079 | 1.785039 | 11/16 |
4 cyl piston set 12380 for Standard - 803 cc OHV Eight, CR 7.25 to 1, Gold Star Power Plus, CR 8.25 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
58 | 66.1 | 38.1 | 15.875 | 2.283465 | 2.602362 | 1 1/2 | 5/8 |
1 cyl piston set 12541 for Austin - 10.6h.p. 1200 cc O.H.V. A40 Sports/A40 Somerset. CR 7.2 to 1. (RBP)
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
65.4812 | 75.184 | 40.259 | 15.875 | 2.578 | 2.96 | 1.585 | 5/8 |
4 cyl piston set 12587 for Austin - 8.3h.p. 803cc O.H.V. A30/Seven, CR 7.2 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
57.912 | 65.0875 | 33.3375 | 14.2875 | 2.28 | 2 9/16 | 1 5/16 | 9/16 |
4 cyl piston set 12682 for Hillman - 1390 cc OHV Minx, Mark VIII, Husky Series I and II, CR 8 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
76.2 | 82.55 | 46.99 | 22.225 | 3 8.8817841970013E-16/2 | 3 1/4 | 1.85 | 7/8 |
1 cyl piston set 13384 for JAP - 412 cc 5, 5B, 1 Cyl. 824 cc 55, 55C, 55CB, 2 Cyl. Air Cooled Industrial, Stationary
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
79.9846 | 76.8858 | 38.7858 | 20.6375 | 3.149 | 3.027 | 1.527 | 13/16 |
1 cyl piston set 13833 for Citroen - 425 cc OHV 2 CV, Bijou, FWD.
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
66 | 81.5 | 49.5 | 20 | 2.598425 | 3.208661 | 1.948819 | 0.787402 |
4 cyl piston set 14289 for Austin - 948 cc OHV A35/A40 Healey Sprite, High Comp CR 9.35 to 1. Healey Sprite MkII CR 9 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
62.9285 | 65.8368 | 34.0868 | 15.875 | 2.4775 | 2.592 | 1.342 | 5/8 |
6 cyl piston set 14816 for Austin - 2912 cc OHV A99 Westminster/A110 2.9 litre/ 3 litre Princess. CR 8.3 to 1 6 cyl
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
83.3247 | 87.3125 | 47.625 | 22.225 | 3.2805 | 3 7/16 | 1 7/8 | 7/8 |
1 cyl piston set 15537 for Opel - 1488 cc Rekord 1.5 litre RBP Design for 15370
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
80 | 95 | 45 | 22 | 3.149606 | 3.740157 | 1.771654 | 0.866142 |
4 cyl piston set 16156 for Simca - 1290 cc OHV Aronde 1300, Flash Engine, 3 bearing crankshaft
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
74 | 86 | 48 | 22 | 2.913386 | 3.385827 | 1.889764 | 0.866142 |
4 cyl piston set 16203 for Austin - 1098 cc OHV A40 MkII, 1100. CR 8.5 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
64.5668 | 58.1152 | 30.3276 | 15.875 | 2.542 | 2.288 | 1.194 | 5/8 |
4 cyl piston set 16224 for Austin - 1622cc OHV J2/J4, 10/18 Cwt. Omnivan/Omnitruck/Omnicoach. CR 7.2 to 1.
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
76.1873 | 76.99375 | 42.06875 | 19.05 | 2.9995 | 3 1/32 | 1 21/32 | 3/4 |
4 cyl piston set 16376 for Vauxhall - 1964/6 1057 cc OHV Viva, CR 8.5 to 1 (7.5 when thick gasket fitted). 1966 OHV Viva 90, CR 9 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
74.295 | 75.565 | 37.6174 | 20 | 2.925 | 2.975 | 1.481 | 0.787402 |
4 cyl piston set 16844 for Vauxhall - 1964/6 1057 cc OHV Viva, CR 8.5 to 1 (7.5 when thick gasket fitted). 1966 OHV Viva 90, CR 9 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
74.295 | 75.565 | 37.6174 | 20 | 2.925 | 2.975 | 1.481 | 0.787402 |
4 cyl piston set 17122 for Ford - 1699 cc OHV Taunus 17M Series 21, V4, CR 8 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
90 | 85.8 | 39.4 | 24 | 3.543307 | 3.377953 | 1.551181 | 0.944882 |
2 cyl piston set 17308 for Ford - 1663 cc OHV Transit 600/850/1100, 101 Engine V4, CR 7.8 to 1. OHV Corsair De Luxe V4 2601E Engine, Industrial V4 CR 9.1 to 1. 6 Cyl 2495 cc OHV Zodiac MkIV...
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
93.64726 | 101.0158 | 52.0954 | 23.8125 | 3.6869 | 3.977 | 2.051 | 15/16 |
4 cyl piston set 17482 for Datsun - 4 cyl 988 cc OHV 1000. CR 8 to 1. 1189 cc OHV Bluebird 1200, El Engine, 1299 cc OHV Bluebird 1300, P411, J Engine, CR 8.2 to 1. 6 cyl 1973 cc OHV Cedric De...
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
73 | 67.5 | 32.5 | 17.4498 | 2.874016 | 2.65748 | 1.279528 | 0.687 |
4 cyl piston set 17568 for Vauxhall - 1599 cc OHC Victor 1600, Viva 1600 SL, Firenza 1600 De Luxe SL, CR 8.5 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
85.7 | 83.312 | 45.3136 | 25.4 | 3.374016 | 3.28 | 1.784 | 1 |
4 cyl piston set 18111 JP for Hillman - 876 cc OHC Imp, Super Imp, Husky C.R 10 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
67.98564 | 52.1843 | 26.797 | 15.875 | 2.6766 | 2.0545 | 1.055 | 5/8 |
1 cyl piston set 18515 for Austin - 997 cc OHV Seven Cooper CR 9 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
62.4205 | 63.2968 | 31.5468 | 15.875 | 2.4575 | 2.492 | 1.242 | 5/8 |
4 cyl piston set 18648 for Ford - 1298 cc OHV Cortina 1300, Escort 1300, Capri 1300, 8 cwt Van, Low Comp. CR 8 to 1 uprated 711M Engine
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
80.98536 | 83.82 | 44.2214 | 20.6375 | 3.1884 | 3.3 | 1.741 | 13/16 |
4 cyl piston set 18698 for Austin - 1748 cc OHC Maxi 1750. CR 8.75 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
76.2 | 63.6905 | 35.84194 | 20.6375 | 3 8.8817841970013E-16/2 | 2.5075 | 1.4111 | 13/16 |
1 cyl piston set 18949 for Ford - 1599 cc OHV Cortina 1600, Escort Mexico, Capri 1600/1600GT, uprated 711M Engine, CR 10.5 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
80.9498 | 83.82 | 44.1706 | 20.6375 | 3.187 | 3.3 | 1.739 | 13/16 |
1 cyl piston set 19160 for Leyland - 2227 cc OHC 2200 E series/2200HL, CR 9 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
76.2 | 74.7776 | 43.1292 | 20.6375 | 3 8.8817841970013E-16/2 | 2.944 | 1.698 | 13/16 |
4 cyl piston set 19299 for Ford - 1663 cc OHV Transit 600/850/1100, 101 Engine V4, CR 7.8 to 1. OHV Corsair De Luxe V4 2601E Engine, Industrial V4 CR 9.1 to 1. 6 Cyl 2495 cc OHV Zodiac MkIV...
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
93.64726 | 101.0158 | 52.0954 | 23.8125 | 3.6869 | 3.977 | 2.051 | 15/16 |
1 cyl piston set 19471 for Chrysler, Hillman - 1598 cc OHV Avenger 1600 GLS/TC. High Comp CR 9.2 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
87.33536 | 75.7682 | 44.1198 | 23.8125 | 3.4384 | 2.983 | 1.737 | 15/16 |
4 cyl piston set 19691 for Datsun - 1428 cc OHC Violet 140J, Sunny 140, CR 9 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
83 | 78 | 38 | 21 | 3.267717 | 3.070866 | 1.496063 | 0.826772 |
4 cyl piston set 19828 for Saab - 1985 cc Injection Engines B20, BT20, B120, OHC, 2 Litre, 99L, 99 EMS, CR 9.25 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
90 | 75 | 40.1 | 24 | 3.543307 | 2.952756 | 1.57874 | 0.944882 |
4 cyl piston set 20009 for Datsun, Nissan - 1296 cc Bluebird 1300 for L.P.G. L13 Engine
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
83 | 78 | 38 | 21 | 3.267717 | 3.070866 | 1.496063 | 0.826772 |
1 cyl piston set 20188 for Volvo - 2127 cc B21A Engine, 242 DL, 244 DL, 245 DL, CR 8.5 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
92 | 71 | 46.1 | 24 | 3.622047 | 2.795276 | 1.814961 | 0.944882 |
4 cyl piston set 20265 for Range Rover - 3528 cc V8, Range Rover, SD1 Engine, Low Comp CR 8.13 to 1, Deeper bowl than 20264
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
88.8619 | 77.089 | 47.371 | 22.225 | 3.4985 | 3.035 | 1.865 | 7/8 |
4 cyl piston set 20395 for Austin - 1275 cc Austin 'A' Series Engine OHV 7-10 cwt Van, Morris 'A' Series Engine OHV Marina 7-0 cwt Van. CR 8 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
70.6247 | 69.6849 | 38.0365 | 20.6375 | 2.7805 | 2.7435 | 1.4975 | 13/16 |
1 cyl piston set 20556 for Yamaha - 171 cc DT175, TY175B Trial, CR 6.2 to 1 Two Stroke
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
66 | 67.3 | 34.4 | 16 | 2.598425 | 2.649606 | 1.354331 | 0.629921 |
4 cyl piston set 20768 for Isuzu - 1584 cc G161 Z Engine OHC, Bellet Gemini 1600 LD/LT/LS, CR 8.7 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
82 | 80.5 | 37.1 | 22 | 3.228346 | 3.169291 | 1.46063 | 0.866142 |
4 cyl piston set 21093 for Ford - 1558 cc twin OHC Engine, Ford Escort Twin Cam, Lotus Cortina. CR 9.5 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
82.5 | 68.6054 | 39.4462 | 20.63242 | 3.248031 | 2.701 | 1.553 | 0.8123 |
1 cyl piston set 21426 for Ford - 1993 cc Carb and Fuel Injection. Grenada 2.0i GL, Ghia, Ghia X, Sierra 2.0i S, GLS, Efi, Ghia, Capri 2000S, Granada 2000L, LX, GL, Sierra 2000 L, GL, LX, C, CL,...
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
90.8 | 69.55 | 41.6 | 24 | 3.574803 | 2.738189 | 1.637795 | 0.944882 |
1 cyl piston set 24062 for Ford - 1993 cc Escort RS Cosworth 4x4, Sierra Saphire RS Cosworth 4x4. CH20 Engine, CR 8 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
90.82 | 65.85 | 40.8 | 23.999 | 3.575591 | 2.59252 | 1.606299 | 0.944843 |
1 cyl piston set 350019 for Austin, Leyland - 2520 cc. OHV EA Series, 2 1/2 Lit. From Engines 25U/52B/D101 and 25V/597B/D101 Onwards. Diesel, CR 20.5 to 1. Al Fin Design
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
88.9 | 98.5266 | 57.2897 | 28.575 | 3 1/2 | 3.879 | 2.2555 | 1 1/8 |
1 cyl piston set 350142 for Leyland - 1798 cc OHV 185/215/220/240/250, Sherpa, Diesel
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
80.2513 | 89.916 | 50.2666 | 25.4 | 3.1595 | 3.54 | 1.979 | 1 |
6 cyl piston set 350227 for Ford - 6571 cc 401 Cu. In, 6 cyl Dexta Tractor, Series 6Y, 8000, Series 7A, 8600, 8700. CR 16 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
106.69778 | 126.9746 | 68.1228 | 38.1 | 4.2007 | 4.999 | 2.682 | 1 1/2 |
1 cyl piston set 350261 for Bedford - 8.2 litre 500 cubic inches engine, Phase 1, Direct Injection Diesel CR 17 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
115.8875 | 122.428 | 75.7936 | 44.45 | 4 9/16 | 4.82 | 2.984 | 1 3/4 |
4 cyl piston set 350318 for Opel - 2068 cc 2.1D Engine, Blitz 2.1D, Rekord 2.1D, L, Berlina, Caravan, CR 21/22/24 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
88 | 88.75 | 53.8 | 28 | 3.464567 | 3.494094 | 2.11811 | 1.102362 |
4 cyl piston set 350374 for Opel - 1598 cc OHC Direct injecton Diesel, Ascona 1.6 Luxus D, Berlina D. Kadett Luxus D, Berlina D,CR 22.5 to 1.
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
80 | 77 | 44.95 | 26 | 3.149606 | 3.031496 | 1.769685 | 1.023622 |
4 cyl piston set 350482 for Austin, Leyland, Perkins - 1994 cc Prima 65 Engine, Austin Maestro 2.0D, 500-700, City L Van, Maestro Clubman, DLX. Leyland Sherpa 200 Series, Crewbus Van. Perkins 4.20...
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
84.4423 | 77.09916 | 48.26 | 28 | 3.3245 | 3.0354 | 1.9 | 1.102362 |
4 cyl piston set 350500 for Rover - 1994 cc 86 bhp, 20 T2R (L Series) Engine, 220 D, 420 D/SD. CR 19.5 to 1, Turbo, Mechanical Direct Injection
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
84.5 | 76.95 | 48 | 30 | 3.326772 | 3.029528 | 1.889764 | 1.181102 |
1 cyl piston set 554505 for Bedford - 6 cyl 7634 cc Direct Injection Diesel ERT/ERV/EPR/EMT/EMV/HMX/KMX, KG/KH/KM and YRT Series Trucks. CR 17 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
115.824 | 122.4026 | 75.7936 | 38.1 | 4.56 | 4.819 | 2.984 | 1 1/2 |
4 cyl piston set 664162 for Fiat - 767 cc OHV 600D, Multipla
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
62 | 62 | 31 | 20 | 2.440945 | 2.440945 | 1.220472 | 0.787402 |
4 cyl piston set 665595 for Fiat - 903 cc 100 GL Engine, 127 Special, L/C/CL, 900T Pulmino, Fiorino, Panda 45. CR 9 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
65 | 61.25 | 30.75 | 20 | 2.559055 | 2.411417 | 1.21063 | 0.787402 |
4 cyl piston set 665946 for Fiat - 1438 cc 124 Coupe 2nd Series, 124 Sport, 125 2nd Series
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
80 | 81.45 | 41.95 | 22 | 3.149606 | 3.206693 | 1.651575 | 0.866142 |
4 cyl piston set 667509 for Alfa Romeo, Nissan - 1186 cc 301.00 Engine, Alfa Romeo Arna 1.2SI, Nissan Cherry 1.2, CR 9.1 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
80 | 74 | 39 | 21 | 3.149606 | 2.913386 | 1.535433 | 0.826772 |
2 cyl piston set 21209001 for Fiat - 652 cc Panda 30 L, CL, Super, CR 8 to 1
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
77 | 79.2 | 39.7 | 20 | 3.031496 | 3.11811 | 1.562992 | 0.787402 |
4 cyl piston set 18645 JP for Ford - 1098 cc OHV Escort 1100, Export Cortina 1100, 6/8 cwt Van. CR 9 to 1 Uprated 711M Engine
Metric (mm) | English (Inches) | ||||||
---|---|---|---|---|---|---|---|
Bore | Piston Height | Compression Height | Gudgeon Pin Dia. | Bore | Piston Height | Compression Height | Gudgeon Pin Dia. |
80.98536 | 83.82 | 44.2214 | 20.6375 | 3.1884 | 3.3 | 1.741 | 13/16 |
