Black soft rubber capless bulb holder - tube type. Fits in many side light apertures and also clock and gauge backs. Supplied with wired terminals to allow fitting of capless T10 and T15 wedge base bulbs such as B501, dimensions 24mm long, 11.5mm o/d increasing to 12mm under shoulder. Two locating ribs. Wires 15cm long with shrink wrap sleeve and bullet ends.

Converted bulb holder for 1142S lamps. Provides a side light and indicator conversion for lamps equivalent to the original Lucas 1142. Takes capless bulbs, part numbers B501 and B921A (12V only).

Modified bulb holder for Lucas 1142 type lamps including the new 'Toby' 1142S. Double contact 1158/SBC/BA15D holder. Takes incandescent bulb part numbers B383 (6V) or B381 (12V) for a 5W side light and clear indicator (behind the standard opaque lens, though iIdeally suited to LED conversion with the combined indicator and side light LEDs with the BA15D base - CSILEDWW and CSILEDW, providing a warm white or white side light and bright amber flashing indicator function. Each bulb holder.

Original pattern side light bulb holder for our 1142S lamps, equivalent to the original Lucas 1142 type side lamp. Takes bulb part numbers B205 (6V) or B207 (12V). Each bulb holder.

Rubber mounted flanged MCC/BA9S pilot light bulb holder. Equivalent to Lucas part number 554710. 15cm long wire tails finished in bullet connectors. shrink wrap sheath. Rubber feed through grommet locates in 14mm hole.

Hiqh quality clamp for tightening the bulb holder socket in the back of Lucas lamp refectors onto BA15 bulb holders (e.g. our part numbers 853 or 153). The clip strap is formed from steel and nickel plated. The screw is machined brass, with a plain lead in and knurled, slotted head, also nickel plated.

H4 P43T headlamp socket ceramic connector. 21mm high, 27mm wide and 24mm long. High performance connector with 10cm long blue white and black cable tails.

Wiring harness for H4 headlight fitted with side light connections with female Lucar (6.3mm spade) terminals fitted. Supplied with plastic sheathing and rubber grommet for feed through. BS specified wiring and wire colours. Approximate length 60cm.

Wiring harness for H4 headlamps fitted with push fit WEDGE T10 side light bulb holder that accepts capless T10 base bulbs (e.g. B501). Supplied with plastic sheathing and rubber grommet for feed through hole. BS specified wiring and wire colours. Approximate length 60cm.

High quality fibre board and copper contact British Pre-focus bulb holder/contact plate for Lucas 576 type spot and fog lamps (e.g. SLR and SFT576). Single contact, with wire tails and bullet connectors . 68mm by 84mm maximum board dimensions

Double ended holder which accepts a plug or standard SCC BA15S or SBC BA15D bulb at either end. Threaded outside body.  -- Nickel plated brass Double contact holder which accepts a plug or standard SBC/BA15D bulb at either end. Threaded outside body.

Double ended holder which accepts a plug or standard SCC BA15S or SBC BA15D bulb at either end. Threaded outside body.  -- Brass Double contact holder which accepts a plug or standard SBC/BA15D bulb at either end. Threaded outside body.

Compact bulb holder for 42 to 44mm long festoon bulbs with spade connections and central mounting hole. 6.3mm spade connections at either end. Compact plastic body 17mm wide x 50mm long (excluding connection tabs). Total height 19mm. Minimum bulb contact diameter 7.5mm. Centre mounting hole 3.5mm dimeter. Maximum incandescent bulb wattage 21W (noting LED festoon bulbs have a much lower power requirement than incandescent bulbs for a given brightness). Max temperature rating 130 deg C. Max intermittent temperature rating 180 deg C. Bulb not included.

Compact bulb holder for 39mm long festoon bulbs with spade connections and central mounting hole. 6.3mm spade connections at either end. Compact plastic body 17mm wide x 50mm long (excluding connection tabs). Total height 19mm. Minimum bulb contact diameter 7.5mm. Centre mounting hole 3.5mm dimeter. Maximum incandescent bulb wattage 10W (noting LED festoon bulbs have a much lower power requirement than incandescent bulbs for a given brightness). Max temperature rating 130 deg C. Max intermittent temperature rating 180 deg C. Bulb not included.

Sealed beam headlamp connector with lead, nylon block three Lucar (6,3mm spade) connector, three wires with headlamp bowl sealing grommet and soldered bullets, overall length 850mm.

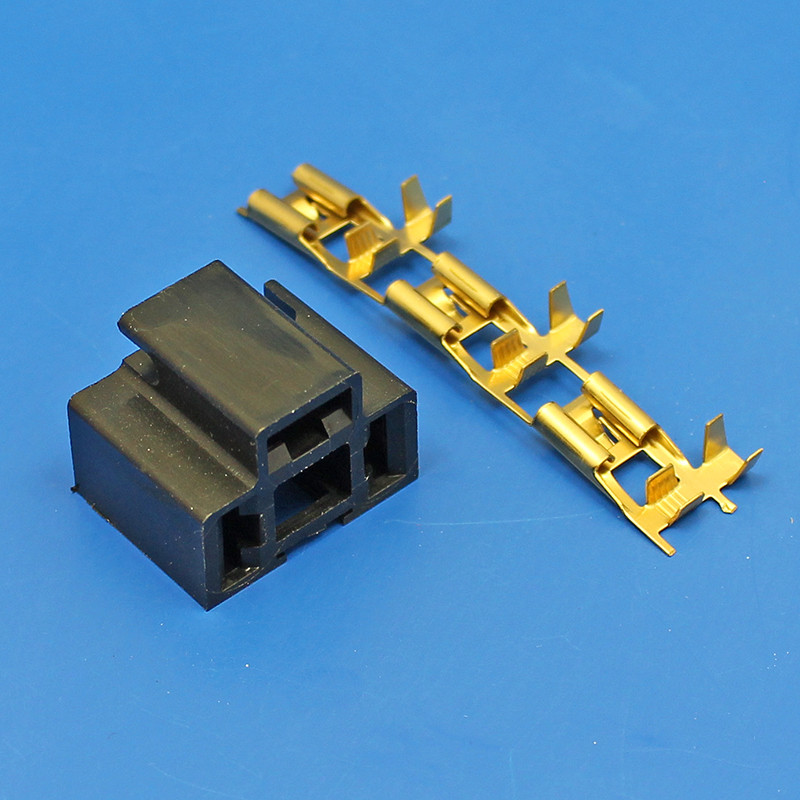

Standard plastic H4 headlamp socket. 219mm high, 26mm wide and 21mm long. Supplied with three brass flag terminals for crimping on to wire and connecting to male Lucar/spade terminals

H1 headlamp socket ceramic connector. 11mm high, 15.1mm wide and 25mm long. With 10cm long single cable tail.

High quality bakelite bulb holder for FT700 and CLR700 light units. Double contact, but one contact can be bent away to make single contact. 71.5mm OD, screw on, min ID 38.5 max ID 45mm

Twist fit bulb holder for T10 wedge base. 15mm aperture diameter.

Replacement general purpose bulb holder - accepts 15mm diameter base bulbs. Offered for various bulbs configurations - 1156/SCC/BA15S single contact parallel pin, SBC/BA15D double contact parallel pin, 1157/BAY15D double contact offset pin. Pin reference is to the side locating pins on the bulb cap. Dimensions - overall length including terminals 36mm, bulb holder body 24mm long x 16.6mm diameter, plastic base 3.6mm deep x 20mm diameter at widest point. Often held in place in the bulb holder socket in Lucas reflectors with a clamp clip (our part number 644C) not supplied. -- BAY15d fitting

Replacement general purpose bulb holder - accepts 15mm diameter base bulbs. Offered for various bulbs configurations - 1156/SCC/BA15S single contact parallel pin, SBC/BA15D double contact parallel pin, 1157/BAY15D double contact offset pin. Pin reference is to the side locating pins on the bulb cap. Dimensions - overall length including terminals 36mm, bulb holder body 24mm long x 16.6mm diameter, plastic base 3.6mm deep x 20mm diameter at widest point. Often held in place in the bulb holder socket in Lucas reflectors with a clamp clip (our part number 644C) not supplied. -- BA15d fitting

Replacement general purpose bulb holder - accepts 15mm diameter base bulbs. Offered for various bulbs configurations - 1156/SCC/BA15S single contact parallel pin, SBC/BA15D double contact parallel pin, 1157/BAY15D double contact offset pin. Pin reference is to the side locating pins on the bulb cap. Dimensions - overall length including terminals 36mm, bulb holder body 24mm long x 16.6mm diameter, plastic base 3.6mm deep x 20mm diameter at widest point. Often held in place in the bulb holder socket in Lucas reflectors with a clamp clip (our part number 644C) not supplied. -- BA15S (1156) base fitting

Replacement general purpose bulb holder - accepts 15mm diameter base bulbs. Offered for various bulbs configurations - 1156/SCC/BA15S single contact parallel pin, SBC/BA15D double contact parallel pin, 1157/BAY15D double contact offset pin. Pin reference is to the side locating pins on the bulb cap. Dimensions - overall length including terminals 36mm, bulb holder body 24mm long x 16.6mm diameter, plastic base 3.6mm deep x 20mm diameter at widest point. Often held in place in the bulb holder socket in Lucas reflectors with a clamp clip (our part number 644C) not supplied.

Double contact headlamp converter for most many headlamps which are mounted through the rear of reflector bowl - usually held in place in the bulb holder socket on Lucas reflectors with clamp clip (our part number 644C) not supplied. Dimensions: 17mm outside diameter, 27mm long (32.5mm including terminals)

Single ended, double contact bulb holder. Dimensions thread diameter 19mm, overall length 38mm, flange 28.5mm. Accepts SBC BA15D bulb, rear nut removes to expose terminal contacts.

Double contact bulb holder insert, fits our 422 bulb holder, two spring loaded brass bulb contacts at one end with two wire terminals at the other, insulator body dimensions 16mm long x 16.7mm diameter.

Black nylon capless bulb holder - tube type. Fits many side light apertures including Wipac type lights and also Smiths Gauges. Supplied with two crimp wire terminals to allow fitting of capless T10 and T15 wedge base bulbs such as B117B, B501 and B507. Dimensions 25mm long, 12mm outer diameter.

Push in plastic bulb holder for capless bulbs. Supplied with two wire crimp terminals for capless bulbs. Fits jewel lights, ST38 conversion and 1130 conversions. Dimensions main body 28mm long x 13mm x 8mm wide, fits into a 16mm hole with 22mm retaining flange.

MCC/BA9s bulb holder. 12.3mm diameter, overall length 18.5mm, useful general application spare for bayonet base 9mm cap equal pin bulbs. single contact, supplied with connectors and terminals.

MCC/BA9s bulb holder, 10.4mm diameter, useful general application spare for equal pin bayonet base 9mm cap bulbs. Single contact.

Twin wired base plate with 1156/SCC/BA15S single contact bulb holder with foam gasket for Lucas type L539 lamps. 76mm Outer diameter 46mm between fixing holes

Bulb holder for Lucas L489 type side lamps - MCC/BA9S bulb holder fitting, single contact.

Double contact BA15D bulb holder plug with solder connections - two part assembly (unscrews). To wire up, unscrew the body, push the brass connectors from the bakelite body, pass wires through the knurled cap and bakelite, solder wires to the brass connections and reassemble. Available in Brass or Nickel. --

Double contact BA15D bulb holder plug with solder connections - two part assembly (unscrews). To wire up, unscrew the body, push the brass connectors from the bakelite body, pass wires through the knurled cap and bakelite, solder wires to the brass connections and reassemble. Available in Brass or Nickel. --

Double contact BA15D bulb holder plug with solder connections - two part assembly (unscrews). To wire up, unscrew the body, push the brass connectors from the bakelite body, pass wires through the knurled cap and bakelite, solder wires to the brass connections and reassemble. Available in Brass or Nickel.

Plug for SCC and SBC type bulb holders. Offered in double contact or single contact. Cables enter through back. -- Plug for SBC BA15D type holder, double contact, cables enter through back.

Plug for SCC and SBC type bulb holders. Offered in double contact or single contact. Cables enter through back. -- Plug for SCC BA15S type holder, single contact, cables enter through back.

Plug for SCC and SBC type bulb holders. Offered in double contact or single contact. Cables enter through back.

 Double contact, double ended SBC/BA15D bulb holder insert. Four spring loaded brass contacts allow it to be adapted for various applications. Overall length 27mm, insulator 11mm long x 15.6mm diameter.

Double ended holder which accepts a plug or standard SCC BA15S or SBC BA15D bulb at either end. Threaded outside body.  -- Double contact holder which accepts a plug or standard SBC/BA15D bulb at either end. Threaded outside body.

Double ended holder which accepts a plug or standard SCC BA15S or SBC BA15D bulb at either end. Threaded outside body.  -- Single contact holder which accepts a plug or standard SCC/BA15S bulb at either end. Threaded outside body

Useful bulb holder (BA15) with bracket, (60mm x 16mm) which can be bent as necessary. --

Useful bulb holder (BA15) with bracket, (60mm x 16mm) which can be bent as necessary. --

Bulb holder sleeve (offset pin BAY15D) and cotton braid pig tail wires which will fit into part number 211 series 'Duolamp' type lamps to enable a small (19mm diameter) globe double contact bulb to be fitted. You will need to order bulb B3212-offset (B3212B) (12 volt) or B3214-offset (B3214B (6 volt) separately. To fit this, it is necessary to push the existing metal sleeve out of the lamp (interference fit) and push this sleeve in. The pig tail wires push through the centre hole with spring behind, locating the fibre disc in the side slots.

Single contact BA15s bulbholder with wire tail. Measures outside 17mm x 26mm long. Note the two barb tags to the side to hold this in place.

Metal cased replacement bulbholder. outside 16.4mm x approx 23.5mm long. Offered with single (equal pin) or double (offset pin) contacts. -- Offset pin

Metal cased replacement bulbholder. outside 16.4mm x approx 23.5mm long. Offered with single (equal pin) or double (offset pin) contacts. --

This BAY15D male socket connector, fitted with three 10cm wire tails, allows you to create a DIY wiring connection between your conventional bulb holder socket and LED clusters.

This BA15S male socket connector, fitted with two 10cm wire tails, allows you to create a DIY wiring connection between your conventional bulb holder socket and LED clusters.

Black hard nylon capless bulb holder - tube type. Fits in many side light apertures including Wipac type lights and also Smiths Gauges. Supplied with wired terminals to allow fitting of capless T10 and T15 wedge base bulbs such as B501, dimensions 25mm long, 12mm o/d. Wires 10cm long with tinned ends.

Replacement bulb holder divider plate for 776/ST38/'Pork Pie' type rear lamps. Accepts 3 x BA15S bulbs. Made to the original specification.

1130 lamp bulb holder. BA15S base for single contact, equal pin bulbs - B382 for 12v and B317 for 6V 5W

1130 lamp bulb holder. BAY15D base for double contact, offset pin bulbs - B380 for 12V and B384 for 6V 21/5w

Spring clip mounted single contact bulb holder to hold MES E10 (11mm globe diameter) 2.2W screw in bulb (B987) as back light for instrument gauges. 6 spring clips push in to a 16mm diameter hole. Supplied with wires.

Double contact bulb holder for Lucas 1130 type side lamp, accepts double contact SBC BA15D parallel pin bulbs. Please note these are made to original pattern. These bulb holders allow conversion to side light and indicator operation with dual function white/warm white and amber LED lamps - please see part numbers  CSILEDWW and CSILEDW

British Pre-focus P36D headlamp connector with lead. Double contact with three pin bayonet bulb holder, three wires with headlamp bowl sealing grommet and soldered bullet connecters, overall length 910mm.

Twin contact BAY15D bulb holder (offset pins) for Lucas L594 lamps. For stop and tail or front clear side and indicator.

Twin contact bulb holder BAY15D (offset pins) for Lucas L488 lamps

Bulb holder BA15S single contact for Lucas L594 lamps

Single contact bulb holder for Lucas L488 lamps

Fitted to the head lamp units we assemble, BS specified wiring and wire colours. Approximate length 45cm. Single H4 lamp connector block with wired brass flag terminals, wires encased in sleeve tube with rubber grommet for feed through hole.

Conversion kit to modify your 776 part number or Lucas ST38/'Pork Pie' type rear lamps to also give amber turn indication. New WEDGE T10 bulbs and bulb holders, special red and amber lens. This kit will fit original Lucas type ST38 lamps as well as our 776 part number series reproductions. Features 12V WEDGE T10 bulbs 1 x B501 (5W) (tail/number plate illumination) and 2 x B921 (21W) (stop and indicator)

Two T10 edge base bulbs (amber for flasher, clear for sidelamp) - 12 volt ONLY. Bulb holder for fitting into Lucas 1130 sidelamps (equivalent to our 297 part number series lamps). Supplied in pairs only. Mounting plate dimensions :- 64mm long x 22mm wide with fixing holes at 50mm centres. Bulb holder plinth is 36mm tall x 25mm wide. For spare bulbs please see our B921A and B501. These bulb holders can also be upgraded to LED operation with LED lamp kit 424ALEDBK. Supplied with set screws and washers.

Double ended holder which accepts a plug or standard SCC BA15S or SBC BA15D bulb at either end. Threaded outside body.

Metal cased replacement bulbholder. outside 16.4mm x approx 23.5mm long. Offered with single (equal pin) or double (offset pin) contacts.

BA7S bulb holder fitted with 12V 2W bulb. Twin 6.3mm push on/Lucar rear terminal connections. For replacement bulbs please order B282 (6V) or B281 (12V)

Useful bulb holder (BA15) with bracket, (60mm x 16mm) which can be bent as necessary.

This is a conversion kit for traditional Spot, Fog or Driving lights that use the British Pre Focus type bulbs (BPF SC P36S) - enabling use of modern H1 P14.5S base (commonly 55w) bulbs to provide more light output and bulb upgrade options. Adaptor plate, spring clip assembly and one 12V 55W H1 P14.5S clear bulb - a set of parts to upgrade ONE lamp. Not suitable for all BPF bulb sockets - please check photographs.
