Angled (90 degree) spark plug HT cap, high quality black phenolic moulding with carbon 5k ohm suppressor. Supplied with grommets making it waterproof, or can be used without grommets to better suit older vehicles. Dimensions - HT cable spur 52mm overall, spark plug spur 40mm overall without grommets. Threaded centre spur screws into core of ignition/HT cable. Brass socket snap fits onto standard 6mm diameter waisted spark plug top. Equivalent to NGK part number LB05E.
Straight spark plug HT cap, black phenolic moulding with 5K OHM carbon suppressor, overall length 70mm. Will suit older vehicles. Threaded spur screws into the core of the HT/ignition cable. 4mm diameter steel socket fits directly onto the threaded stud on top of the spark plug - meaning that the 6.3mm diameter waisted steel cap needs to be unscrewed from the top of the plug first.
Knurled brass spark plug terminal nut - for most modern plugs. 4BA thread
Folded washer for 18mm spark plug or our adaptor part number 452

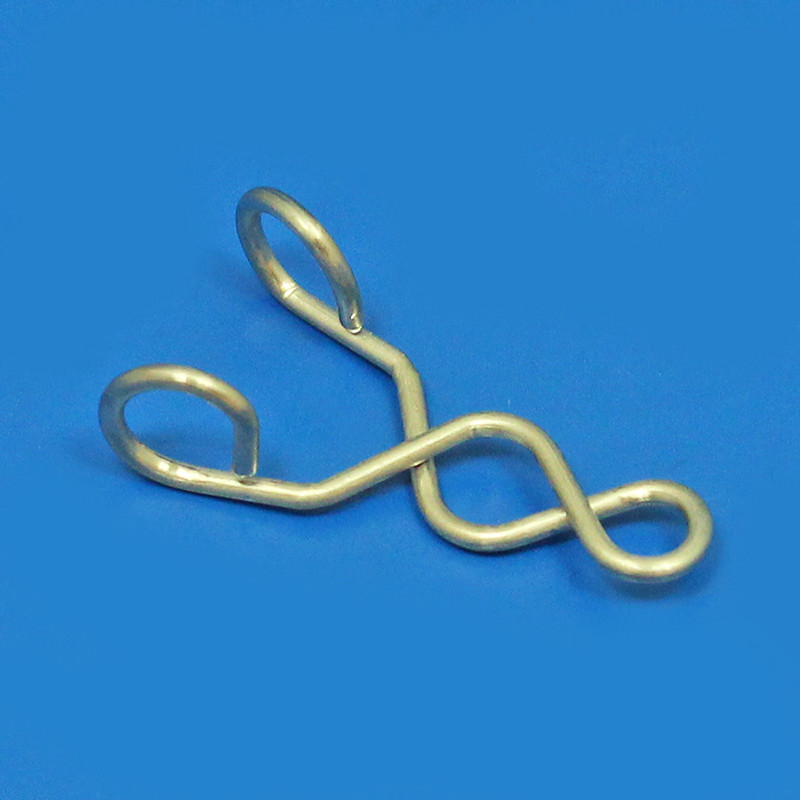

Wire clip for holding old style brass spade HT terminal on to spark plug.
Brass solder type HT plug end terminal, wire passes through centre and is held in place with a spot of solder. For standard 7mm HT lead with copper wire centre.
Straight, non-suppressed, Hypalon spark plug cap, black, complete with terminal.

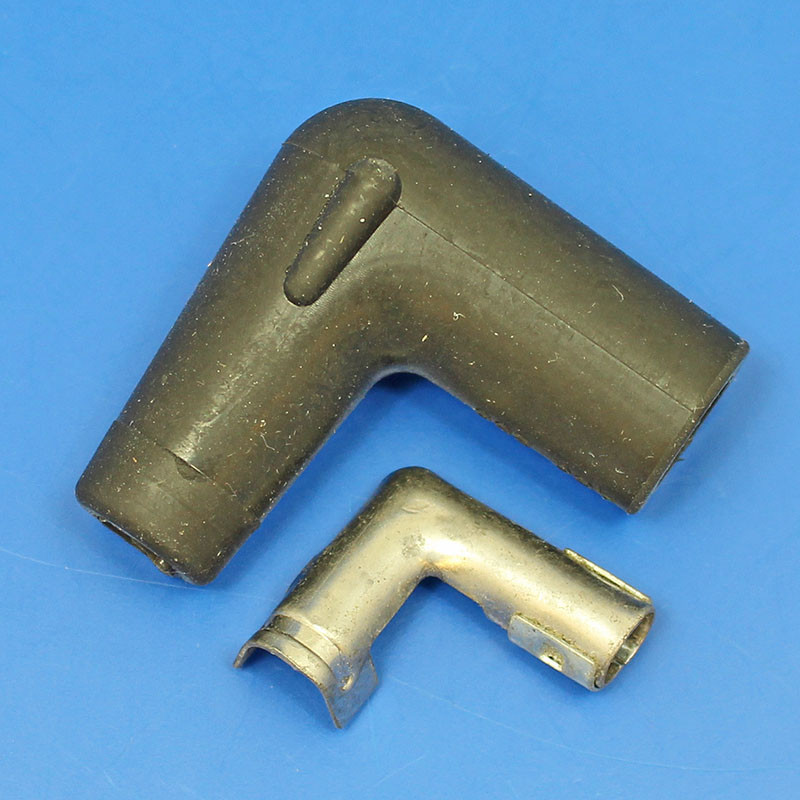

Right angled, not suppressed, Hypalon spark plug cap complete with terminal
WCX600 spark plug suppressed terminals, embossed 'CHAMPION', 90 degree angle (side entry) cable which screws on to ignition wire, black. --
HTC straight spark plug terminal, as original early Champion version. These are a non-suppressed terminal with fixed screw tip that screws into the centre core of the HT wire ends. Applications include Morris from '38, Wolseley, M.G. from '36 and Riley from '39. Dimensions :- 36mm tall x 17mm diameter at widest point, will accept a 7mm (max) diameter cable.
Angled (120 degree) spark plug HT cap, black phenolic moulding with carbon 5k ohm suppressor. Supplied with grommets making it waterproof, or can be used without grommets to better suit older vehicles. Dimensions - HT cable spur 44mm and spark plug spur 40mm (without grommets). Maximum dimension. 85mm x 60mm overall including grommets. HT cable spur screws into core of cable. Spark plug spur pushes on to standard 6mm waisted cap tops. Equivalent to NGK part number VD05E
