Useful rotary 4 position (off, side, dip, main) switch with black lever to fit a metal dash (26mm hole) with fixing nut to retain. 6 screw terminals to rear.

Surface mounted switch equivalent to Lucas type SPB140 (model HD77). Base 50mm diameter, two bolt mounting through back (35mm hole centres). Side dip switch (lever 18mm long), front horn push (button diameter 25mm). Approximately 50mm deep. Three recessed cable connections in base. A high quality reproduction.

Foot operated dip switch for mounting through floor. Base measures 55mm x 45mm. Overall height 60mm of which switch pillar is 45mm tall, fixing holes 38mm.

Lucas type 34790 floor mounted dip switch as fitted to Mini, MG, TR5 and early TR6

Floor mounted traditional dip switch for foot use, equivalent to Lucas part number 31284 (model FS22-1). Base plate measures 75mm x 40mm with 60mm hole centre fixing screws, three terminals with screw/plate connections, switch operating button 32mm diameter 35mm tall, overall height of switch from base plate 47mm. Very similar to switch no. 31226.

12 volt remote starter button. Mount under the bonnet for ease of starting the engine whilst you're working on the car. Equivalent to Lucas part numbers SRB316, 2ST. For spare rubber button cover and insulator rubber, please see part numbers 621 and 622

Compact two position switch suitable for dash mounting. A quality reproduction switch equivalent to Lucas part number 9RW (380417) originally offered with a plain black cover (or with a cover marked with an 'ON' position - part number 31291). The brass cover over the switch mechanism incorporates two 3mm diameter mounting holes at 35mm centres. A very neat period switch originally used to control fog and spot lamps, dipping reflectors and reversing lamps. Solder sockets on rear for wiring connection.

Dash rotary rheostat dimmer switch equivalent to Lucas part number 78405. 6.4mm x 21mm hexagonal shaft. 0-12.5 Ohms resistance, four 6.3mm blade connections. Excludes knob (Lucas part number 54340037). Applications include early Land Rover as well as MGA, MGB Triumph TR4 TR5 TR6 & TR7 and Aston Martin.

Thermostatic fan switch. Simple fitting switch which goes into the top hose. This switch kit is adjustable to turn your fan on between 60 and 120 degrees C.

Lucas type PRS3 or 31270 combined ignition and lighting switch as fitted to a variety of British cars, including Austin Healey Sprite and Austin A40 Countryman. Supplied without barrel and key assembly. Different knobs are available to operate the lighting function, also lock and key sets - sold separately.

Pull on / push off switch, long threaded shank (16mm long, 9mm diameter) suitable for mounting through wooden dash. Overall length 73mm, maximum diameter 18mm, requires 9.5mm panel hole. Grub screw wire connections. Black SCREW ON knob allows easier through dash fitment than CA981B (with hex shaft and cross pin). Equivalent to original Lucas part number PS7 (031218 with knob, 31201 without)

PLC switch wire retaining clip. Fits all Lucas PLC2, PLC5 and PLC6 (our 836 and 836A) switches. Overall dimensions 45mm x 55mm, 1.5mm thick wire.

Indicator switch which mounts to steering column, secured with a band clip that can be removed without leaving any extra holes etc. Body approx 56mm tall x 44mm deep, overall length approx 164mm. Please note that this part does NOT self cancel.

Remanufactured part equivalent to Lucas 31311, SPB120 panel mount indicator switch. Domed raised switch body assembly with moulded lever in black bakelite. Black, flat oval base mount (40mm high x 54mm wide) with mounting holes at 46mm centres to enable mounting on to any flat panel. Brass screw terminal connections to rear. Indicator bulb under screw down crown in centre - please specify bulb voltage required (6, 12 or 24v). Overall size 54mm wide x 60mm high. A super reproduction with a very positive switch action. Supplied with mounting kit including short link bar which can be used to make the switch equivalent to Lucas part number 31190. We also offer ivory and brown versions of this switch, colour matched to original switches - please see part numbers SPB120-IVORY and SPB120-BROWN. For bulbs - please see part numbers 6 volt - B990. 12 volt - B987. 24 volt - B650.

Small round surface mount toggle on/off switch, 28mm diameter x approx 13mm tall cover. Chrome plated cover (unscrews to get to terminals). Only suitable for 6 volt or 12 volt, maximum rating 3 amp.

As Lucas pattern 51C 'pull on' brake switch, metal body 63mm wide x 35mm deep x 40mm tall with 51mm fixing hole centres, Flange mounted, brass screw terminals on top. Ford part reference Y-13480.

Bulkhead fitting pull type starter switch (945), as Lucas model type ST19/2, applicable for 6 or 12 volt application, metal case with PVC terminal block. Terminals for heavy cables. A lower cost version of our 945 all metal switch. Ford part reference ET6-11450-B. Main body 70mm long x 33mm wide x 27mm tall, 10mm mounting stud with 3mm operating pull shaft.

Bulkhead fitting pull type starter switch (945), Lucas model type ST19/2, 76423 applicable for 6 or 12 volt application, all metal body with rubber shielded terminals for heavy cables. Ford part reference ET6-11450-B. main body 70mm long x 33mm wide x 27mm tall, 10mm mounting stud with 3mm operating pull shaft.

Remanufactured part equivalent to Lucas 31476, SPB120 panel mounted indicator switch. Domed raised switch body assembly with moulded lever in ivory bakelite. Black, flat oval base mount (40mm high x 54mm wide) with mounting holes at 46mm centres to enable mounting on to any flat panel. Brass screw terminal connections to rear. Indicator bulb under screw down crown in centre - please specify bulb voltage required (6, 12 or 24v). Overall size 54mm wide x 60mm high. A super reproduction with a very positive switch action with body in correct ivory. Supplied with mounting kit including short link bar which can be used to make the switch equivalent to Lucas part number 31190. We also offer black and brown versions of this switch - please see part number SPB120-BLACK and SPB120-BROWN. For bulbs - please see part numbers 6 volt - B990. 12 volt - B987. 24 volt - B650.

Reproduction part equivalent to Lucas TS82 panel and column mounted rotary 3-way indicator/Trafficator switch. Alternative Lucas number 31611 (also 31379 is the same switch body just with a longer lever used for column mounting only). Flat circular base mount 40mm diameter with two 3.5mm holes at 32 mm centres to enable mounting. Three brass terminal connections to rear complete with brass grub screws. Purchase with a choice of optional mounting plates - part numbers TS82-DASH for flush fitting or TS82-S58, an alternative base plate with two down-turned mounting tabs enabling the fitting of the switch to the Lucas S58 column mounted stalk that also featured a combined horn and dip switch. The switch was also fitted to other steering column-mounted control arms including the Lucas models SC60 and SC76A/1 - noting as above, that some applications featured the version with a slightly longer thumb lever - though the body, mounting arrangement and function are the same as this shorter lever version, suited to both stalk and dash fitting. Unlike SD84/SPB120 switches, the TS82 does not have a light to show that the indicators are working, so a visible 'indicator on' warning light - or buzzer for an audible warning - should be fitted. Please see example part numbers 842, 0609 or BUZZ. Domed raised body assembly with a moulded lever. Black bakelite with a very high-quality finish and positive switch action. Overall size 40mm wide x 35mm high.  Commonly used with SE62 and SE100/SF80 trafficator models with applications inluding Bedford, Citroen, Jowett, Lea Francis, Morris, Land Rover, Rover and Vauxhall

Push contact switch with general as well as Land Rover glove box applications 13mm x 20mm body with 12mm long 5mm diameter plunger. 2 x 6.3mm spade/Lucar connections

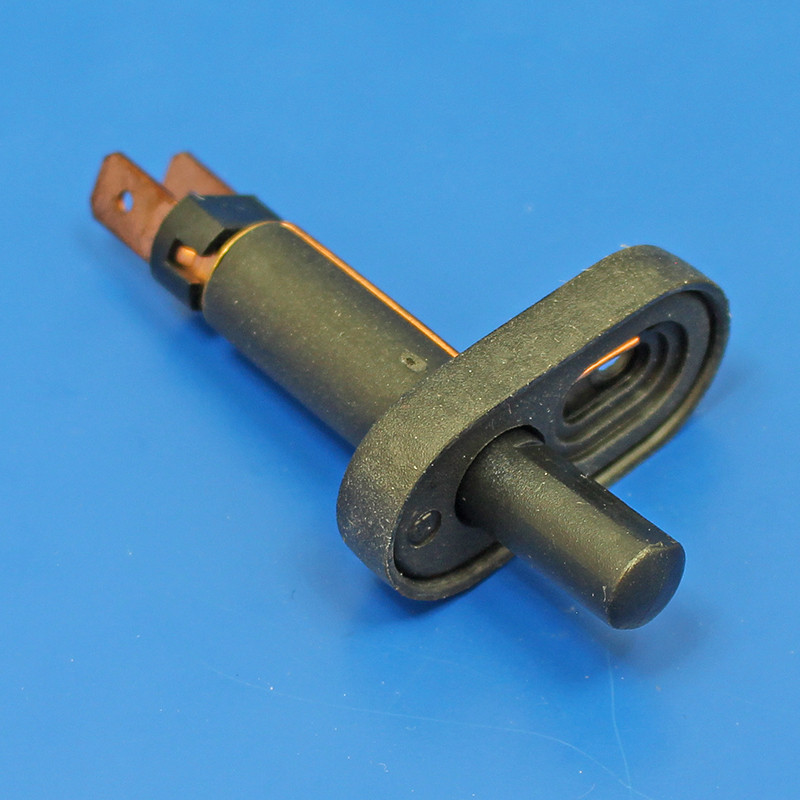

Twin terminal push switch with self-adjusting plunger. Universal vehicle application. Use on door pillars etc. Mounting flange 36mm x 18mm, rear tube and terminals 42mm long, switch plunger 17mm long, plunger on/off travel is 3mm.

Interior light switch with stainless steel cover. Slides on/off, suitable for door pillar application. Cover approx 27mm x 51mm, holes 35mm.

Rotary on-off turn switch with black knob with two flattened grips. Short shank for metal dash. Requires 19mm panel hole, bezel 22mm diameter. Black knob with chrome bezel. Equivalent to Lucas 31276, S50, PS6 type.

Starter switch that attaches to the motor case, as Lucas model type ST9, 76439, 764150. Applicable for 6 or 12 volt applications. Ford part reference BE-11450

Floor mount starter switch for connecting directly into starter/battery cables, four mounting holes, two 5/16" terminals studs with nuts, as Lucas model ST18, 76427. Flange overall diameter 63.5mm, rear body 44mm diameter x 19mm deep (excludes terminals).

FAE 24040 12V Brake light switch fitted with twin spade/Lucar connections. Supplied with slotted baseplate - slot is 8mm wide and 40mm long - and spring.

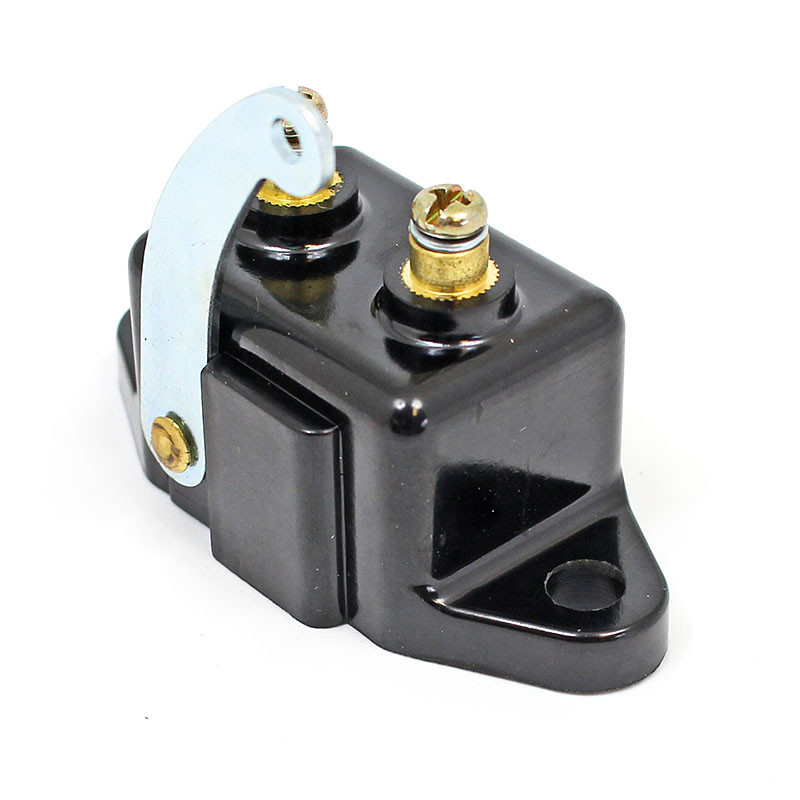

Period brake switch. Bakelite type body. Lever arm action which makes contact when pulled. Originally fitted to RHD Ford E83W and LHD cars/5cwt van.

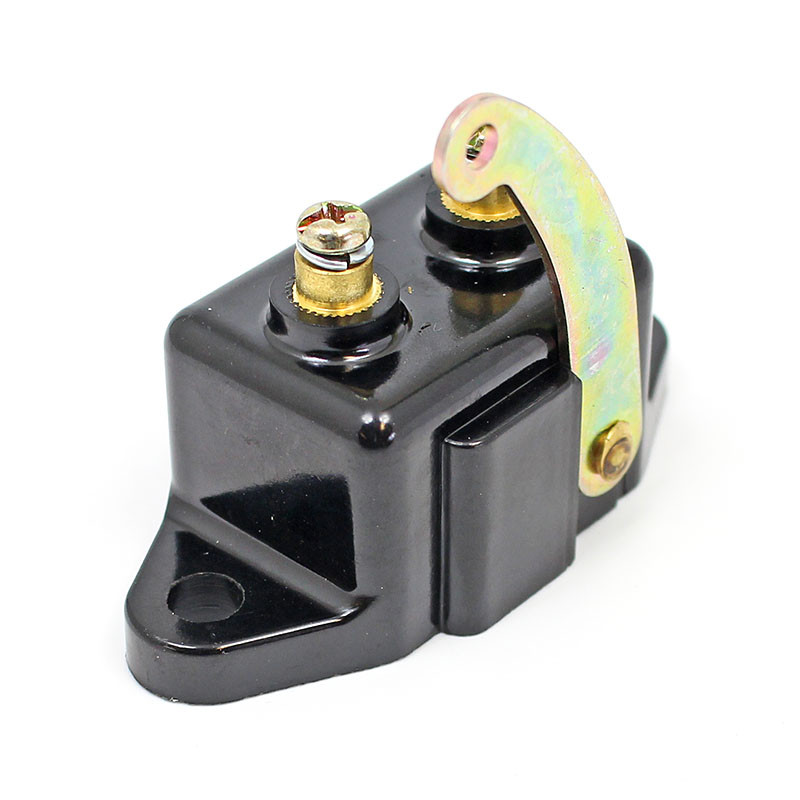

Period brake switch. Bakelite type body. Lever arm action which makes contact when pulled. Originally fitted to RHD Ford cars/5cwt van & LHD E83W.

Quickly mounts to under dash flange on most cars. Heavy duty 50 amp toggle switch with chrome handle. Use for indicator, fog lights, wiper motors etc. Universal use.

Quickly mounts to under dash flange on most cars. Heavy duty 50 amp toggle switch with chrome handle. Use for fog lights, wiper motors or any universal use.

Remanufactured switch equivalent to the Lucas 56SA type. Pull on switch with red illuminated knob, fitted with 12 volt bulb. Fits through 3/8" (10mm) panel hole on metal dash. Two push in terminals to rear, body 23mm deep x 32mm x 14mm. Black plain knob unscrews to change bulb. Equivalent to original Lucas switch number 31696

Brake light switch, terminals protected by a rubber cover, connects to linkage with a spring, switch 30mm long x 33mm wide x 30mm tall with fixing hole centres 24mm, spring length including hook 95mm relaxed.

Illuminated steering column-mounted indicator/trafficator switch. Secures around steering column using metal band clip. Base measures 30mm deep (front to back). Ivory bakelite type finish with plated stalk. Overall length of body and stalk/knob is 155mm. Green illuminated end.

Steering column mounted indicator/trafficator switch. Secures around steering column using metal band clip. Base measures 30mm deep (front to back). Ivory bakelite type finish with plated stalk. Overall length of body and stalk/knob 155mm. Plain ivory end.

Flat blade steel ignition key for the PLC2 switch used on Austin 7 and Morris 8 etc. Overall dimensions 32mm long x 19mmm wide, square tab 8mm deep x 7mm wide. 8mm hole in fob.

Large surface mounted 2 way switch, 2 5/8'' (67mm) diameter, three hole fixing. Well finished in black bakelite. Genuine new old stock - Lucas part number 31001.

Interior light toggle switch with pressed polished stainless steel or brass cover plate 43mm x 30mm with bevel edges. On/off only. 24mm between hole centres. Please note that the connection terminals will require wires to be soldered in place.  -- Two position, single pole with stainless steel cover. Chrome plated brass lever Solder terminals 6.5mm panel hole 5amp at 28 Volts DC rating

Interior light toggle switch with pressed polished stainless steel or brass cover plate 43mm x 30mm with bevel edges. On/off only. 24mm between hole centres. Please note that the connection terminals will require wires to be soldered in place.  --

Two sockets with different diameter pins, often used for inspection lamps etc. Equivalent to Lucas sockets 38605A, as supplied by Lucas for fitting Lucas plug 304919. Will fit our part 960P.

Two pin plug with different diameter pins (pins 13mm centres, plug pins 3.18mm diameter for black socket, 3.81mm diameter red socket). Often used for inspection lamps etc. Equivalent to Lucas plug 304919, as supplied by lucas for fitting sockets 38605A. Please note that we supply plug only

Two panel mount sockets (red and black) and and one plug - which has two equal size pins (pins 13mm centres, plug pins 3.18mm diameter). Often used for inspection lamps etc. Equivalent to Lucas inspection lamp plug 545025 and insulated sockets 305514.

Clockwork panel mounted flasher unit/indicator switch (suitable for 6, 12 or 24 volt systems), makes and breaks contacts for approximately 20-25 seconds then self cancels. Body size approximately 45mm x 55mm x 25mm. Requires 12mm hole in metal panel. Easy to connect input (fused) and exit terminals. This unit is neither voltage or bulb wattage sensitive.

Ivory colour - Solenoid starter (spring loaded) switch metal twin screw connectors. 22.5mm hole fixing. Short type for metal dash. Maximum dash thickness 5mm. Supplied complete with plastic lock nut

Push button (spring loaded) black knob, 22mm diameter chrome bezel, short type for metal dash. Maximum dash thickness 7mm. Requires 19mm hole. Makes contact when pushed. Equivalent to Lucas switch type SS5, 31107, SPB105, 31967. Originally available in Black ( part number 413), Ivory (part number 413-IV, equivalent to Lucas part number 31272) and Brown (Lucas part number 31107) --

Repair kit for black SPB 120 switches - black Bakelite switch base with brass terminal connections, three piece brass sprung roller contact assembly, black Bakelite screw down bezel with red lens and spring. Bulbs: 6 volt - B990, 12 volt - B987, 24 volt - B650.

Dash mounted ignition switch equivalent to Lucas part number 31973. Three position - Off/Ignition/Start. 12V universal application, supplied with two keys.

Ignition switch - panel mount with two keys. Requires 19mm diameter hole. 2 key positions - OFF/ON only. Equivalent part to Lucas part number 54316731 (lock and key) and 30608 (switch body)

HP19/SPB160 horn push button engraved 'Klaxon'. Flanged for mounting on to dash. Button head approx. 38mm diameter. Mounting flange 53mm x 35mm with two screw holes.

Aluminium body with black push button, two terminals, for wooden dash. This button is very similar to the vintage Bosch model but has a clip-on cover in place of the early threaded design. 1 3/8'' (35mm) diameter.

Toggle switch, on/off only, requires hole through metal panel 13mm. Nickel plated toggle lever, Lucar type 6.3mm spade terminals.

Simple yet effective battery master switch - fits on the battery post - no modifications needed - screw knob detaches if required.

Brake light switch which connects to linkage with a spring. Electrical contacts 'breaks' on pull, in relaxed position the switch is on. No rubber cover .

Panel mount indicator switch, suitable for any application. Requires 25mm hole through metal panel. Overall diameter 37.5mm at rear.

Steering column mounted indicator/trafficator switch. Secures around steering column using metal band clip. Base measures 30mm deep (front to back), black bakelite type finish with plated stalk. Overall length of body and stalk/knob 155mm. Plain black end

Steering column mounted indicator/trafficator switch. Secures around steering column using metal band clip. Base measures 30mm deep (front to back), black bakelite type finish with plated stalk, overall length of body and stalk/knob 155mm. Green illuminated end. Please note that this part does NOT self cancel.

Push button with flange for mounting on to dash, button head approximately 38mm diameter. Mounting flange 53mm x 35mm with two screw hole (hole centres 42mm). Equivalent to Lucas part numbers HP19, 76205 and SPB160. Most commonly used as a horn push.

Battery master switch, good value alternative, black plastic body, red removable plastic key. Usually mounted in earth lead.

Sturdy panel mounted battery master isolator switch, similar to Lucas ST360 (SSB106) model. Requires 19mm hole in panel. A well-made reproduction part.At 12 volts rated for 100 Amps continuous.Fit to the NEGATIVE side of the battery (on a negative earth vehicle).

Hazard flasher warning switch kit (12v only). Switch with illuminated knob and flasher unit mounted onto a small bracket with cover for mounting underneath the dash or steering column, which wires into the existing indicator flasher system and operates all four flasher lamps at once. Equivalent to Lucas part number SFB300 (30269). General application including classic Land Rover and Jaguar.

Pull on / push off switch (equivalent to Lucas part number SPB104). Long shank (18mm long, 9mm diameter,) suitable for wooden dash. Black plastic knob on hexagonal stem. Knob removed by depressing spring loaded pin, two brass terminals with screws, overall dimensions 80mm x 20mm. For the same switch but with a screw on knob for ease of fitting, please see part number 410.

Ignition switch equivalent to Lucas type 34680. Panel mounted with 4 key positions - Auxiliary (left), Off, Ignition and Start. 6.3mm Lucar type spade connections. Supplied with two keys. 35mm diameter barrel with 20mm clearance hole for threaded neck to pass through dash.

Original black Lucas screw on bakelite knob, plain top. No 8 NC female thread (32 tpi, 0.164" major OD). Approx. 19mm diameter x 25mm long.

Starter-solenoid terminal insulator rubber, equivalent to Lucas part 764272

Switch as Lucas PPG1 style light switch with pull/twist/pull action. Fits through 10mm hole max panel thickness 3mm with chrome retaining nut, hexagon shaft with spring loaded locating pin, three screw terminal connections application side/head light switch. Supplied without knob. Overall dimensions length 85mm width 35mm (max) 24mm (min). Shaft 27mm long, 6.4mm diameter. Three positions - 1 - Off, 2 - Pull on , 3 - Turn and pull. Applications include MGA, Triumph, Austin Healey, TR2 and TR3A

Panel mounted indicator switch, with knob which illuminates in use, 12 volt application only. Requires 25mm hole through metal panel for mounting.

PLC6 type combined key on/off and off/side/head lamp switch. Approx 56mm diameter (requires 53mm hole in metal dash panel). The off/side/head positions are displayed on a white background through a cut out in the black face panel. Screw terminals to rear. Unswept handle, chrome plated bezel. Equivalent to Lucas part number 34055. Complete with lock and keys.

Combined key on/off and off/side/head lamp switch, equivalent to the original Lucas PLC5 type switch. Approx 56mm diameter (requires 53mm hole in metal dash panel). The off/side/head positions are printed on the black face panel. Screw terminals to rear.

Pull/push switch, long shank suitable for wooden dash, maximum dash thickness 10mm. Fits through 8mm hole. Overall dimensions 58mm long x 30mm at widest point. Two brass terminals with screws. Black knob.

Battery master switch for dashboard mounting etc. Mounting flange (53mm hole centres). 'Flambeau' emblem on knob, also marked with 'OFF' and arrow. Suitable for 6v, 12v or 24 volt. The knob can be detached for installation by removal of rear C circlip. The body is 43mm in diameter. Usually mounted into Negative/earth lead. The continuous load rating at 12v is 150ampsShort/Max load at 12v (example starting) is 500amps The third (low current) terminal is optional to allow the switch to function as an emergency engine cut-off by earthing a feed from the points or coil when the switch is in the OFF position - see wiring instructions. Please also see alternative part numbers 463A and 463P. Fitting & Wiring Guide

Battery isolating switch with flange (53mm hole centres) for panel fixing. Black knob marked 'OFF' with arrow. Requires 19.5mm hole and two 4mm fixing holes. Two 10mm Copper studs with brass nuts to rear. Install on the NEGATIVE/EARTH lead Current rating = 24v 100 amp Continuous 500 amp for 5 seconds

Push button (spring loaded) black knob, 22mm diameter chromium bezel, long type for wooden dash, maximum dash thickness 20mm. Requires 19mm hole. Makes contact when pushed. Screw terminal connection, equivalent to Lucas 31363, SPB106

Starter push button switch (Ford 1937-48 style) 15A at 6V, 20A at 12V. Button diameter 11mm, overall diameter 26mm, hole size required approx. 22mm

Battery master isolator switch for dashboard mounting etc equivalent to Lucas ST330, 76605. Mounting flange (53mm hole centres). The body is 43mm in diameter. The knob is marked with 'OFF' and arrow. The knob can be detached for installation by removal of the rear C circlip. Usually mounted into earth lead. Please also see alternative part numbers 463A and 463L The continuous load rating at 12v is 150ampsShort/Max load at 12v (example starting) is 500amps The third (low current) terminal is optional to allow the switch to function as an emergency engine cut-off by earthing a feed from the points or coil when the switch is in the OFF position - see wiring instructions. Fitting & Wiring Guide

Remanufactured part equivalent to Lucas 31190D, SPB120 panel mounted indicator switch. Domed raised switch body assembly with moulded lever in brown bakelite. Black, flat oval base mount (40mm high x 54mm wide) with mounting holes at 46mm centres to enable mounting on to any flat panel. Brass screw terminal connections to rear. Indicator bulb under screw down crown in centre - please specify bulb voltage required (6, 12 or 24v). Overall size 54mm wide x 60mm high. A super reproduction with a very positive switch action with body in correct brown colour - colour matched to original switches. Supplied with mounting kit including link bar. We also offer ivory and black versions of this switch - please see part numbers SPB120-IVORY and SPB120-BLACK. For bulbs - please see part numbers 6 volt - B990. 12 volt - B987. 24 volt - B650.
