Surface mounted switch equivalent to Lucas type SPB140 (model HD77). Base 50mm diameter, two bolt mounting through back (35mm hole centres). Side dip switch (lever 18mm long), front horn push (button diameter 25mm). Approximately 50mm deep. Three recessed cable connections in base. A high quality reproduction.
Ivory colour - Solenoid starter (spring loaded) switch metal twin screw connectors. 22.5mm hole fixing. Short type for metal dash. Maximum dash thickness 5mm. Supplied complete with plastic lock nut

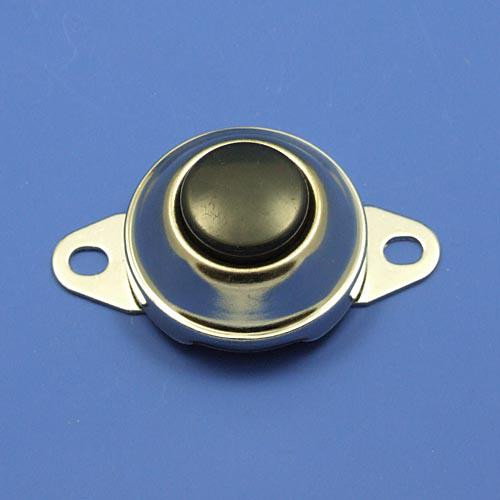

Surface mounted, metal cased push button. Suitable for horn press button etc. Mounting hole centres 53mm, chrome rim approx 41mm diameter, black button.
Push button (spring loaded) black knob, 22mm diameter chrome bezel, short type for metal dash. Maximum dash thickness 7mm. Requires 19mm hole. Makes contact when pushed. Equivalent to Lucas switch type SS5, 31107, SPB105, 31967. Originally available in Black ( part number 413), Ivory (part number 413-IV, equivalent to Lucas part number 31272) and Brown (Lucas part number 31107) --
Push button (spring loaded) black knob, 22mm diameter chrome bezel, short type for metal dash. Maximum dash thickness 7mm. Requires 19mm hole. Makes contact when pushed. Equivalent to Lucas switch type SS5, 31107, SPB105, 31967. Originally available in Black ( part number 413), Ivory (part number 413-IV, equivalent to Lucas part number 31272) and Brown (Lucas part number 31107)
HP19/SPB160 horn push button engraved 'Klaxon'. Flanged for mounting on to dash. Button head approx. 38mm diameter. Mounting flange 53mm x 35mm with two screw holes.
Aluminium body with black push button, two terminals, for wooden dash. This button is very similar to the vintage Bosch model but has a clip-on cover in place of the early threaded design. 1 3/8'' (35mm) diameter.
Push button with flange for mounting on to dash, button head approximately 38mm diameter. Mounting flange 53mm x 35mm with two screw hole (hole centres 42mm). Equivalent to Lucas part numbers HP19, 76205 and SPB160. Most commonly used as a horn push.
Push button dash switch. Equivalent to Lucas part number SPB106. Suitable for a starter solenoid. Used on many classic vehicles including on some AC cars as a horn push. 11 amps at 12v. Dash mounted, requiring an approximate 20mm hole. Two 6.3mm Lucar/ spade connections
Four position rotary switch similar to 16SA/Lucas style 34486B panel switch but with horn push function in addition. 12mm hole required to fit. 24mm stem length. 52mm overall diameter.
