Budget Radiator Electric Cooling Fan 276mm x 290mm, 65mm deep. Available for Front or Rear Fitting. Please specify when ordering. They are not interchangeable.

9" blade size, performance (S) 1010 CFM (B) 1030 CFM. (S) Suction - place behind radiator, (B) Blowing - place in front of radiator At the heart of each of these fans is the industry’s most durable DC motor. This motor is rated to temperatures of minus 40 degrees to plus 120 degrees Celsius. The dual bearing construction provides an extremely smooth performance with low amperage consumption and a significant operating life. The essence of the Comex fan is the selection of quality component parts and the use of dedicated Suction or Blower blades which maximise airflow. Each fan is plastic injection moulded using UV stable polymers which will stand the test of time.  Due to the quality of these fans they now have a very wide range of applications, suitable for off-road vehicles, classic cars, race prepared vehicles, coaches, and motor homes. CMF figures are measured at 12v DC and 0.2” / 5mm static pressure. The size relates to the diameter of the blade.

15" blade size, performance (B) 2920 CFM, (S) 3030. (S) Suction - place behind radiator, (B) Blowing - place in front of radiator At the heart of each of these fans is the industry’s most durable DC motor. This motor is rated to temperatures of minus 40 degrees to plus 120 degrees Celsius. The dual bearing construction provides an extremely smooth performance with low amperage consumption and a significant operating life. The essence of the Comex fan is the selection of quality component parts and the use of dedicated Suction or Blower blades which maximise airflow. Each fan is plastic injection moulded using UV stable polymers which will stand the test of time.  Due to the quality of these fans they now have a very wide range of applications, suitable for off-road vehicles, classic cars, race prepared vehicles, coaches, and motor homes. CMF figures are measured at 12v DC and 0.2” / 5mm static pressure. The size relates to the diameter of the blade.

12" blade size, performance (B) 1860 CFM, (S) 1580 CFM. (S) Suction - place behind radiator, (B) Blowing - place in front of radiator At the heart of each of these fans is the industry’s most durable DC motor. This motor is rated to temperatures of minus 40 degrees to plus 120 degrees Celsius. The dual bearing construction provides an extremely smooth performance with low amperage consumption and a significant operating life. The essence of the Comex fan is the selection of quality component parts and the use of dedicated Suction or Blower blades which maximise airflow. Each fan is plastic injection moulded using UV stable polymers which will stand the test of time.  Due to the quality of these fans they now have a very wide range of applications, suitable for off-road vehicles, classic cars, race prepared vehicles, coaches, and motor homes. CMF figures are measured at 12v DC and 0.2” / 5mm static pressure. The size relates to the diameter of the blade.

10" blade size, performance (S) 1440 CFM, (B) 1240 CFM. (S) Suction - place behind radiator, (B) Blowing - place in front of radiator At the heart of each of these fans is the industry’s most durable DC motor. This motor is rated to temperatures of minus 40 degrees to plus 120 degrees Celsius. The dual bearing construction provides an extremely smooth performance with low amperage consumption and a significant operating life. The essence of the Comex fan is the selection of quality component parts and the use of dedicated Suction or Blower blades which maximise airflow. Each fan is plastic injection moulded using UV stable polymers which will stand the test of time.  Due to the quality of these fans they now have a very wide range of applications, suitable for off-road vehicles, classic cars, race prepared vehicles, coaches, and motor homes. CMF figures are measured at 12v DC and 0.2” / 5mm static pressure. The size relates to the diameter of the blade.

14" blade size, performance (S) 2060 CFM, (B) 2010 CFM. (S) Suction - place behind radiator, (B) Blowing - place in front of radiator At the heart of each of these fans is the industry’s most durable DC motor. This motor is rated to temperatures of minus 40 degrees to plus 120 degrees Celsius. The dual bearing construction provides an extremely smooth performance with low amperage consumption and a significant operating life. The essence of the Comex fan is the selection of quality component parts and the use of dedicated Suction or Blower blades which maximise airflow. Each fan is plastic injection moulded using UV stable polymers which will stand the test of time.  Due to the quality of these fans they now have a very wide range of applications, suitable for off-road vehicles, classic cars, race prepared vehicles, coaches, and motor homes. CMF figures are measured at 12v DC and 0.2” / 5mm static pressure. The size relates to the diameter of the blade.

14" blade size, performance (S) 2060 CFM, (B) 2010 CFM. (S) Suction - place behind radiator, (B) Blowing - place in front of radiator At the heart of each of these fans is the industry’s most durable DC motor. This motor is rated to temperatures of minus 40 degrees to plus 120 degrees Celsius. The dual bearing construction provides an extremely smooth performance with low amperage consumption and a significant operating life. The essence of the Comex fan is the selection of quality component parts and the use of dedicated Suction or Blower blades which maximise airflow. Each fan is plastic injection moulded using UV stable polymers which will stand the test of time.  Due to the quality of these fans they now have a very wide range of applications, suitable for off-road vehicles, classic cars, race prepared vehicles, coaches, and motor homes. CMF figures are measured at 12v DC and 0.2” / 5mm static pressure. The size relates to the diameter of the blade. --

14" blade size, performance (S) 2060 CFM, (B) 2010 CFM. (S) Suction - place behind radiator, (B) Blowing - place in front of radiator At the heart of each of these fans is the industry’s most durable DC motor. This motor is rated to temperatures of minus 40 degrees to plus 120 degrees Celsius. The dual bearing construction provides an extremely smooth performance with low amperage consumption and a significant operating life. The essence of the Comex fan is the selection of quality component parts and the use of dedicated Suction or Blower blades which maximise airflow. Each fan is plastic injection moulded using UV stable polymers which will stand the test of time.  Due to the quality of these fans they now have a very wide range of applications, suitable for off-road vehicles, classic cars, race prepared vehicles, coaches, and motor homes. CMF figures are measured at 12v DC and 0.2” / 5mm static pressure. The size relates to the diameter of the blade. --

This kit comprises a unique self-sealing fitting, machined nut, washer, O ring and cutter (as pictured) - creating a 3/8 BSP female tapping point. Suitable for connection to virtually any silicone, rubber or plastic hose and will even work on semi-rigid plastic and metal. Pressure tested to 4bar. Material - Aluminium. Each kit contains a hole punch, a self sealing insert, a self sealing washer, a threaded nut and O-ring. Engineered to solve the problem of teeing into water and air hoses. This unique design forms a perfect seal and will even work on semi rigid plastic and metal. For fitting in pipe diameters of approx 32mm upwards.

45mm Hose fitting with Positive Earth Housing. Fits directly into a radiator top or bottom hose for direct water contact. Technical Information: Supply Voltage: 12v Space in hose approx: 25mm Overal length approx: 65mm Material: Aluminium Relay Rating: 30 AMPS Wire Length: 700mm Supplied With - 2 x Hose Clamps, Relay, Cap, 3 x Cable Ties, Fitting Instructions

35mm hose fitting Positive Earth Housing. Fits directly into a radiator top or bottom hose for direct water contact. Technical Information: Supply Voltage: 12v Space in hose approx: 25mm Overal length approx: 65mm Material: Aluminium Relay Rating: 30 AMPS Wire Length: 700mm Supplied With - 2 x Hose Clamps, Relay, Cap, 3 x Cable Ties, Fitting Instructions

2 way Classic Smiths style toggle switch for use with a Revotec Fan Controller enabling the fan to be manually controlled either On or Automatic, allowing you to override your controller. Supplied with - Classic Smiths style toggle switch, black anodised mounting bracket, retro and modern style decals, wiring, crimps, mounting screws and connection diagram. Although this product is primarily designed to override electronic fan controllers, it can be used in conjunction with our COMINST relay kit to simply turn an electric fan on or off.

3 Way rotary switch for use with a Revotec Fan Controller enabling the fan to be manually controlled either On, Off or Automatic. Perfect for 4X4 applications such as wading. Supplied with black anodised mounting bracket kit. Position decal. Sealed 3m wiring loom and connection diagram. This product must be used with a Revotec Electronic Fan Controller.

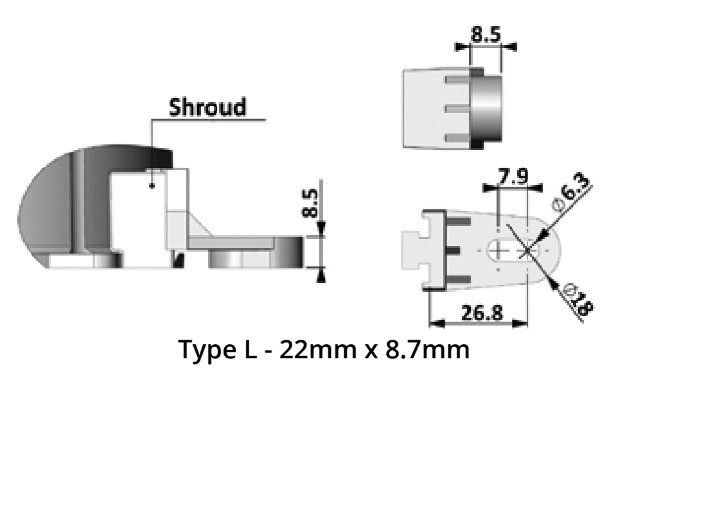

Supplied as each. To suit 14" Fans Only. 22mm x 8.7mm

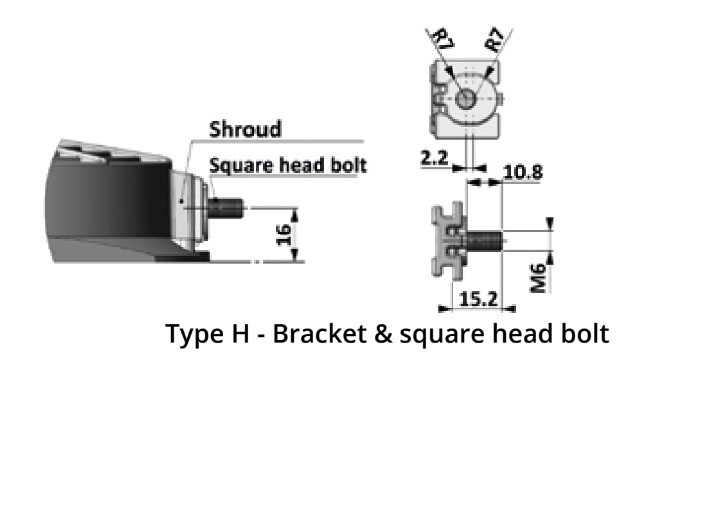

Supplied as each. Requires M5 bolt (Not Supplied). To suit 13 & 14" Fans Only. 27mm x 12.6mm

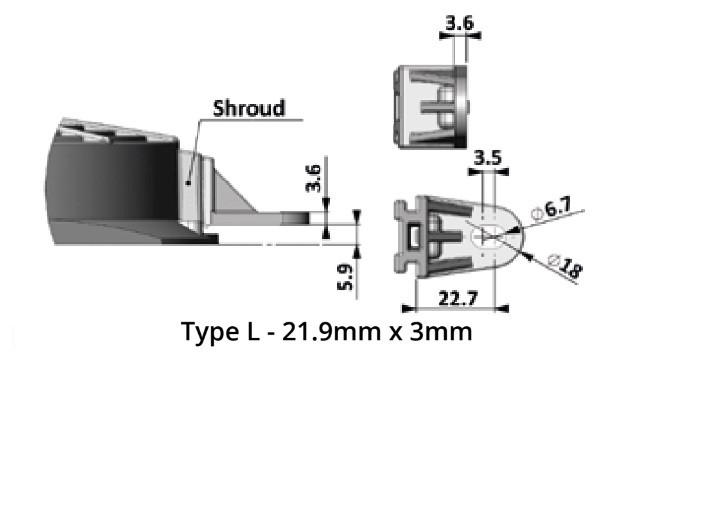

Supplied as each. To suit 6, 7.5, 9, 10, 11, 12, 15.2" Fans Only. 21.90mm x 3.6mm.

Supplied as each. To suit 6, 7.5, 9, 10, 11, 12, 15.2" Fans Only.

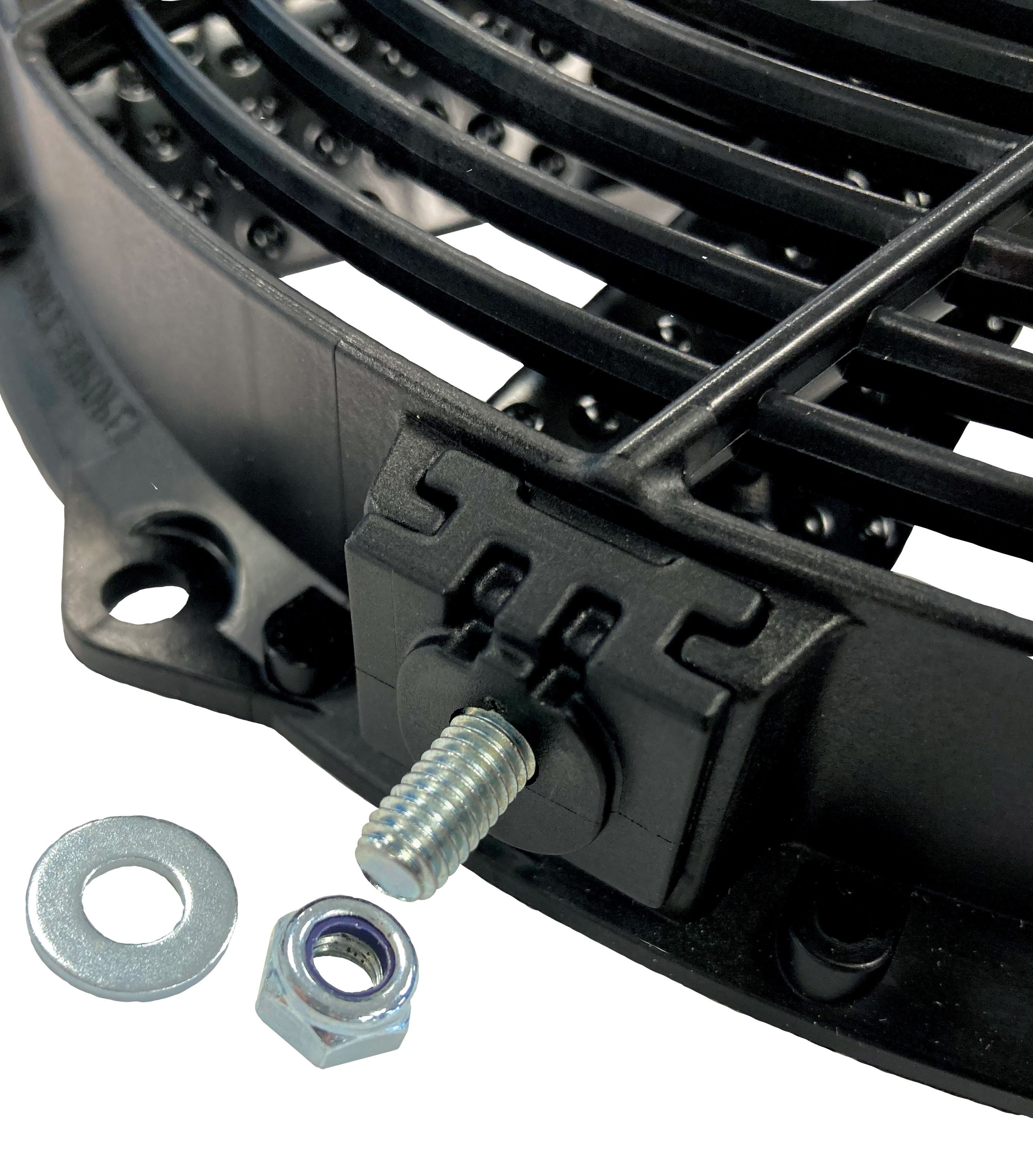

Supplied as each. To suit 6, 7.5, 9, 10, 11, 12, 15.2" Fans Only. 21.90mm x 3.6mm. Supplied with M6 Square Bolt, Nyloc & Washer.

Fan installation kits - perfect when installing without a Revotec Electronic Fan Controller. Each kit comes complete with relay and loom, Fan Earth Kit, Fan Pull Through Kit and Tie Wraps.

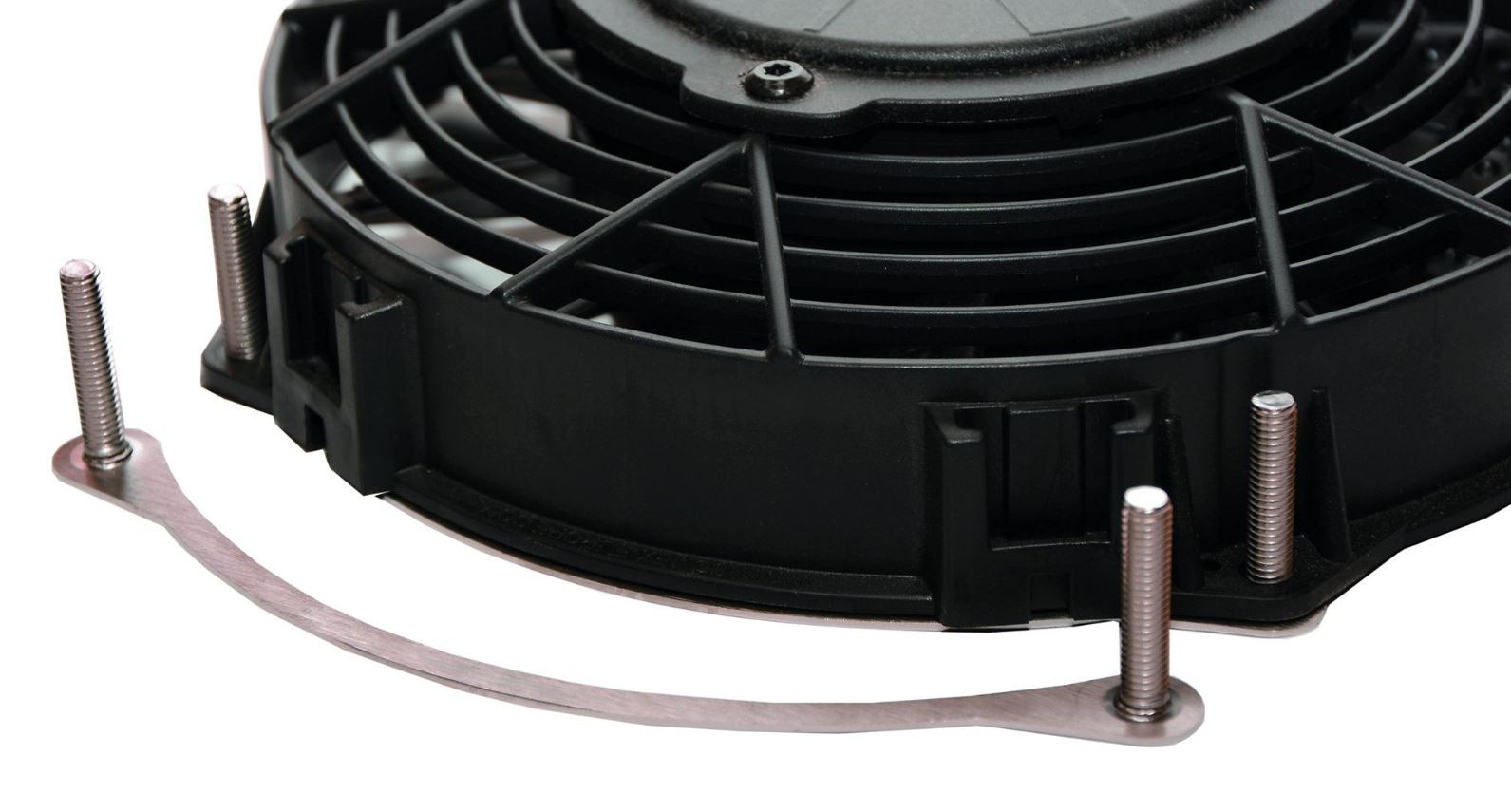

Ideal for sitting a 15.2" fan flush onto a radiator core with no damage. Each Flush Mount kit is supplied with 2x Flush Mounts, 4x M6 Nyloc Nuts and 4x M6 Washers. Supplied in Pairs

Ideal for sitting a fan flush on to a radiator core with no damage. Each Flush Mount kit is supplied with 2x Flush Mounts, 4x M6 Nyloc Nuts and 4x M6 Washers. Supplied in Pairs

Ideal for sitting a 12" fan flush onto a radiator core with no damage. Each Flush Mount kit is supplied with 2x Flush Mounts, 4x M6 Nyloc Nuts and 4x M6 Washers. Supplied in Pairs

Ideal for sitting a 10" fan flush onto a radiator core with no damage. Each Flush Mount kit is supplied with 2x Flush Mounts, 4x M6 Nyloc Nuts and 4x M6 Washers. Supplied in Pairs

Ideal for sitting a 9" fan flush onto a radiator core with no damage. Each Flush Mount kit is supplied with 2x Flush Mounts, 4x M6 Nyloc Nuts and 4x M6 Washers. Supplied in Pairs

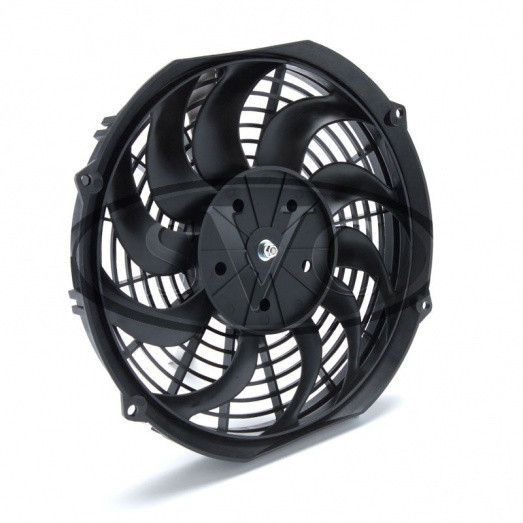

The simple solution to earthing a COMEX fan - Kit Contains: 1m Black 2.5m Cable, Crimp Terminals, Fan Connection Male Terminal, Heat Shrink, Clip

Universal bracket for 15.2" fans. Perfect for securely mounting a fan to the radiator. Made from aluminium, these are laser cut with 200mm long legs to suit the stated fan size. Each kit is supplied with 2x Brackets, 4x M6 Nyloc Nuts & 4x M6 Washers.

14" fan bracket. Perfect for securely mounting a fan to the radiator. Made from aluminium, these are laser cut with 200mm long legs to suit the stated fan size. Each kit is supplied with 2x Brackets, 4x M6 Nyloc Nuts & 4x M6 Washers.

Bracket to suit 12" electric fans. Perfect for securely mounting a fan to the radiator. Made from aluminium, these are laser cut with 200mm long legs to suit the stated fan size. Each kit is supplied with 2x Brackets, 4x M6 Nyloc Nuts & 4x M6 Washers.

Universal fan bracket for 10" electric fan. Perfect for securely mounting a fan to the radiator. Made from aluminium, these are laser cut with 200mm long legs to suit the stated fan size. Each kit is supplied with 2x Brackets, 4x M6 Nyloc Nuts & 4x M6 Washers.

9" universal fan bracket. Perfect for securely mounting a fan to the radiator. Made from aluminium, these are laser cut with 200mm long legs to suit the stated fan size. Each kit is supplied with 2x Brackets, 4x M6 Nyloc Nuts & 4x M6 Washers.

10" blade size, performance (S) 1440 CFM, (B) 1240 CFM. (S) Suction - place behind radiator, (B) Blowing - place in front of radiator At the heart of each of these fans is the industry’s most durable DC motor. This motor is rated to temperatures of minus 40 degrees to plus 120 degrees Celsius. The dual bearing construction provides an extremely smooth performance with low amperage consumption and a significant operating life. The essence of the Comex fan is the selection of quality component parts and the use of dedicated Suction or Blower blades which maximise airflow. Each fan is plastic injection moulded using UV stable polymers which will stand the test of time.  Due to the quality of these fans they now have a very wide range of applications, suitable for off-road vehicles, classic cars, race prepared vehicles, coaches, and motor homes. CMF figures are measured at 12v DC and 0.2” / 5mm static pressure. The size relates to the diameter of the blade. --

9" blade size, performance (S) 1010 CFM (B) 1030 CFM. (S) Suction - place behind radiator, (B) Blowing - place in front of radiator At the heart of each of these fans is the industry’s most durable DC motor. This motor is rated to temperatures of minus 40 degrees to plus 120 degrees Celsius. The dual bearing construction provides an extremely smooth performance with low amperage consumption and a significant operating life. The essence of the Comex fan is the selection of quality component parts and the use of dedicated Suction or Blower blades which maximise airflow. Each fan is plastic injection moulded using UV stable polymers which will stand the test of time.  Due to the quality of these fans they now have a very wide range of applications, suitable for off-road vehicles, classic cars, race prepared vehicles, coaches, and motor homes. CMF figures are measured at 12v DC and 0.2” / 5mm static pressure. The size relates to the diameter of the blade. --

15" blade size, performance (B) 2920 CFM, (S) 3030. (S) Suction - place behind radiator, (B) Blowing - place in front of radiator At the heart of each of these fans is the industry’s most durable DC motor. This motor is rated to temperatures of minus 40 degrees to plus 120 degrees Celsius. The dual bearing construction provides an extremely smooth performance with low amperage consumption and a significant operating life. The essence of the Comex fan is the selection of quality component parts and the use of dedicated Suction or Blower blades which maximise airflow. Each fan is plastic injection moulded using UV stable polymers which will stand the test of time.  Due to the quality of these fans they now have a very wide range of applications, suitable for off-road vehicles, classic cars, race prepared vehicles, coaches, and motor homes. CMF figures are measured at 12v DC and 0.2” / 5mm static pressure. The size relates to the diameter of the blade. --

12" blade size, performance (B) 1860 CFM, (S) 1580 CFM. (S) Suction - place behind radiator, (B) Blowing - place in front of radiator At the heart of each of these fans is the industry’s most durable DC motor. This motor is rated to temperatures of minus 40 degrees to plus 120 degrees Celsius. The dual bearing construction provides an extremely smooth performance with low amperage consumption and a significant operating life. The essence of the Comex fan is the selection of quality component parts and the use of dedicated Suction or Blower blades which maximise airflow. Each fan is plastic injection moulded using UV stable polymers which will stand the test of time.  Due to the quality of these fans they now have a very wide range of applications, suitable for off-road vehicles, classic cars, race prepared vehicles, coaches, and motor homes. CMF figures are measured at 12v DC and 0.2” / 5mm static pressure. The size relates to the diameter of the blade. --

Pull Through Kits are an ideal quick fix solutions. Perfect for motorsport applications or for fans under 12". Each kit is supplied with 4x Pull Throughs, 4x 3mm Rubber Washers, 4x Foam Pads and 4x Push on Buttons.

9" blade size, performance (S) 1010 CFM (B) 1030 CFM. (S) Suction - place behind radiator, (B) Blowing - place in front of radiator At the heart of each of these fans is the industry’s most durable DC motor. This motor is rated to temperatures of minus 40 degrees to plus 120 degrees Celsius. The dual bearing construction provides an extremely smooth performance with low amperage consumption and a significant operating life. The essence of the Comex fan is the selection of quality component parts and the use of dedicated Suction or Blower blades which maximise airflow. Each fan is plastic injection moulded using UV stable polymers which will stand the test of time.  Due to the quality of these fans they now have a very wide range of applications, suitable for off-road vehicles, classic cars, race prepared vehicles, coaches, and motor homes. CMF figures are measured at 12v DC and 0.2” / 5mm static pressure. The size relates to the diameter of the blade. --

15" blade size, performance (B) 2920 CFM, (S) 3030. (S) Suction - place behind radiator, (B) Blowing - place in front of radiator At the heart of each of these fans is the industry’s most durable DC motor. This motor is rated to temperatures of minus 40 degrees to plus 120 degrees Celsius. The dual bearing construction provides an extremely smooth performance with low amperage consumption and a significant operating life. The essence of the Comex fan is the selection of quality component parts and the use of dedicated Suction or Blower blades which maximise airflow. Each fan is plastic injection moulded using UV stable polymers which will stand the test of time.  Due to the quality of these fans they now have a very wide range of applications, suitable for off-road vehicles, classic cars, race prepared vehicles, coaches, and motor homes. CMF figures are measured at 12v DC and 0.2” / 5mm static pressure. The size relates to the diameter of the blade. --

12" blade size, performance (B) 1860 CFM, (S) 1580 CFM. (S) Suction - place behind radiator, (B) Blowing - place in front of radiator At the heart of each of these fans is the industry’s most durable DC motor. This motor is rated to temperatures of minus 40 degrees to plus 120 degrees Celsius. The dual bearing construction provides an extremely smooth performance with low amperage consumption and a significant operating life. The essence of the Comex fan is the selection of quality component parts and the use of dedicated Suction or Blower blades which maximise airflow. Each fan is plastic injection moulded using UV stable polymers which will stand the test of time.  Due to the quality of these fans they now have a very wide range of applications, suitable for off-road vehicles, classic cars, race prepared vehicles, coaches, and motor homes. CMF figures are measured at 12v DC and 0.2” / 5mm static pressure. The size relates to the diameter of the blade. --

10" blade size, performance (S) 1440 CFM, (B) 1240 CFM. (S) Suction - place behind radiator, (B) Blowing - place in front of radiator At the heart of each of these fans is the industry’s most durable DC motor. This motor is rated to temperatures of minus 40 degrees to plus 120 degrees Celsius. The dual bearing construction provides an extremely smooth performance with low amperage consumption and a significant operating life. The essence of the Comex fan is the selection of quality component parts and the use of dedicated Suction or Blower blades which maximise airflow. Each fan is plastic injection moulded using UV stable polymers which will stand the test of time.  Due to the quality of these fans they now have a very wide range of applications, suitable for off-road vehicles, classic cars, race prepared vehicles, coaches, and motor homes. CMF figures are measured at 12v DC and 0.2” / 5mm static pressure. The size relates to the diameter of the blade. --

Budget Electric Cooling Fan for Radiators. 295mm x 318mm. Available for Front or Rear Fitting. Please specify when ordering. They are not interchangeable.

Negative Earth Housing. Fits directly in to a radiator top or bottom hose for direct water contact.Technical Information: Supply Voltage: 12v Space in hose approx: 25mm Overall length approx.: 65mm Material: Aluminium Relay Rating: 30 AMPS Wire Length: 700mm Supplied With:2 x Hose Clamps, Relay, Cap, 3 x Cable Ties, Fitting Instructions

25mm Hose fitting with Positive Earth Housing. Fits directly into a radiator top or bottom hose for direct water contact. Technical Information: Supply Voltage: 12v Space in hose approx: 25mm Overal length approx: 65mm Material: Aluminium Relay Rating: 30 AMPS Wire Length: 700mm Supplied With - 2 x Hose Clamps, Relay, Cap, 3 x Cable Ties, Fitting Instructions

28mm hose size. These universal thermostats provide an easy retrofit solution for controlling an electric cooling fan. Electronic Fan Controller for fitment into a coolant hose. Adjustable so the fan can be switched on anywhere between 70 and 120°C. Negative Earth Housing. Fits directly into a radiator top or bottom hose for direct water contact. Technical Information: Supply Voltage: 12v Space in hose approx.: 28mm  Overall length approx: 65mm  Material: Aluminium Relay Rating: 30 AMPS  Wire Length: 700mm Supplied with 2 x Hose Clamps, Relay, Cap, 3 x Cable Ties, Fitting Instructions

28mm hose fitting Positive Earth Housing. Fits directly into a radiator top or bottom hose for direct water contact. Technical Information: Supply Voltage: 12v Space in hose approx: 25mm Overal length approx: 65mm Material: Aluminium Relay Rating: 30 AMPS Wire Length: 700mm Supplied With - 2 x Hose Clamps, Relay, Cap, 3 x Cable Ties, Fitting Instructions

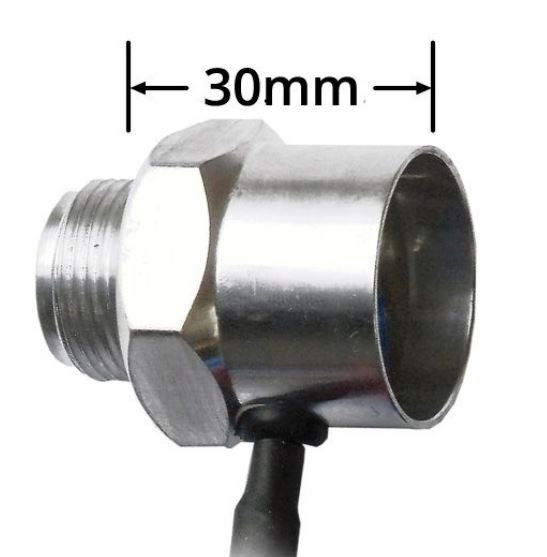

Negative Earth Housing. Screws directly into the radiator with 3/8" BSP thread. Technical Information: Supply Voltage: 12v Body Length Approx: 32mm Thread Length Approx: 12mm Material: Aluminium Relay Rating: 30 AMPS Wire Length: 700mm Supplied With - Relay, Cap, 3 x Cable Ties, Fitting Instructions

To fit 32mm bore hose size. These universal thermostats provide an easy retrofit solution for controlling an electric cooling fan. Electronic Fan Controller for fitment into a coolant hose. Adjustable so the fan can be switched on anywhere between 70 and 120°C. Negative Earth Housing. Fits directly into a radiator top or bottom hose for direct water contact. Technical Information: Supply Voltage: 12v Space in hose approx.: 32mm  Overall length approx.: 65mm  Material: Aluminium Relay Rating: 30 AMPS  Wire Length: 700mm Supplied with 2 x Hose Clamps, Relay, Cap, 3 x Cable Ties, Fitting Instructions

32mm hose fitting with Positive Earth Housing. Fits directly into a radiator top or bottom hose for direct water contact. Technical Information: Supply Voltage: 12v Space in hose approx: 25mm Overal length approx: 65mm Material: Aluminium Relay Rating: 30 AMPS Wire Length: 700mm Supplied With - 2 x Hose Clamps, Relay, Cap, 3 x Cable Ties, Fitting Instructions

35mm hose size. These universal thermostats provide an easy retrofit solution for controlling an electric cooling fan. Electronic Fan Controller for fitment into a coolant hose. Adjustable so the fan can be switched on anywhere between 70 and 120°C. Negative Earth Housing. Fits directly into a radiator top or bottom hose for direct water contact. Technical Information: Supply Voltage: 12v Space in hose approx.: 35mm  Overall length approx.: 65mm  Material: Aluminium Relay Rating: 30 AMPS  Wire Length: 700mm Supplied With: 2 x Hose Clamps, Relay, Cap, 3 x Cable Ties, Fitting Instructions

38mm hose size. These universal thermostats provide an easy retrofit solution for controlling an electric cooling fan. Electronic Fan Controller for fitment into a coolant hose. Adjustable so the fan can be switched on anywhere between 70 and 120°C. Negative Earth Housing. Fits directly in to a radiator top or bottom hose for direct water contact. Technical Information: Supply Voltage: 12v Space in hose approx.: 38mm  Overall length approx.: 65mm  Material: Aluminium Relay Rating: 30 AMPS  Wire Length: 700mm Supplied With: 2 x Hose Clamps, Relay, Cap, 3 x Cable Ties, Fitting Instructions

38mm hose fitting with Positive Earth Housing. Fits directly into a radiator top or bottom hose for direct water contact. Technical Information: Supply Voltage: 12v Space in hose approx: 25mm Overal length approx: 65mm Material: Aluminium Relay Rating: 30 AMPS Wire Length: 700mm Supplied With - 2 x Hose Clamps, Relay, Cap, 3 x Cable Ties, Fitting Instructions

Large 45mm hose size. These universal thermostats provide an easy retrofit solution for controlling an electric cooling fan. Electronic Fan Controller for fitment into a coolant hose. Adjustable so the fan can be switched on anywhere between 70 and 120°C. Negative Earth Housing. Fits directly into a radiator top or bottom hose for direct water contact. Technical Information: Supply Voltage: 12v Space in hose approx: 45mm Overall length approx: 65mm  Material: Aluminium Relay Rating: 30 AMPS  Wire Length: 700mm Supplied With: 2 x Hose Clamps, Relay, Cap, 3 x Cable Ties, Fitting Instructions

Fan Feet to suit 6, 7.5, 9, 10, 11, 12, 15.2" Fans Only. 21.90mm x 9.0mm. Supplied individually

Supplied as each. To suit 13" Fans Only. 22mm x 8.4mm
