H4 Flat lens, halogen headlamp upgrade set complete with side/pilot lights, wide application including rubber bumper MG owners upgrading from sealed beam headlamps. Offered for right hand drive vehicles only, designed for an original appearance, with superior light distribution and optimal fit. Type approved ('E' marked). Headlamps are supplied as a PAIR inclusive of B472 60/55w H4 halogen headlamp bulbs, B501 5W side light bulbs and rubber weatherproof boots. High qlaity glass lens and metal lamp body/reflector. Wiring harnesses also included complete with Wedge T10 bulb holder, H4 connector, rubber grommet, shrink fit cover and four bullet end connections. Supplied as a PAIR.

8" headlamp unit with chrome body and rim, complete with pre-focus light unit fitted with headlamp and sidelight bulb holders, equivalent to the Lucas DU142. All chrome body with single wiring hole in the base. It was fitted to many classic British motorcycles, including those from BSA, Matchless, Norton Triumph etc.

7" headlamp unit with black body and chrome rim, complete with pre-focus light unit fitted with headlamp and sidelight bulb holders, equivalent to the Lucas SSU700. Plain black body with single wiring hole in the base. It was fitted to many classic British motorcycles, including those from BSA, Matchless, Norton Triumph etc.

7" headlamp unit with chrome body and rim, complete with pre-focus light unit fitted with headlamp and sidelight bulb holders, equivalent to the Lucas SS700P - 5 hole model lamp popular in the1950's and early1960's., 4 apertures on the top of the lamp for Ammeter, two warning lights and one switch (not supplied) 1 aperture in the base.  It was fitted to many classic British motorcycles, including those from BSA, Matchless, Norton Triumph etc.

7" headlamp unit with black body and chrome rim, complete with switch panel (U39) and ammeter, equivalent to the Lucas SSU700 model. The SSU700 was introduced in 1950, following on from the MU42 model. The SSU700 was fitted to many classic British motorcycles, including those from BSA, Matchless, Norton Triumph etc but is suitable for others.

7" headlamp unit with black body and chrome rim, complete with switch panel (U39) and ammeter, equivalent to the Lucas SSU700 P1 model with underslung pilot light. The SSU700 was introduced in 1950, following on from the MU42 model. The SSU700 was fitted to many classic British motorcycles, including those from BSA, AJS, Royal Enfield, Matchless, Norton, Triumph etc but is suitable for others.

7" headlamp unit with chrome body and rim, complete with switch panel (U39) and ammeter, equivalent to the Lucas SSU700 model lamp. The SSU700 was introduced in 1950, following on from the MU42 model. It was fitted to many classic British motorcycles, including those from BSA, Matchless, Norton Triumph etc but is suitable for others.

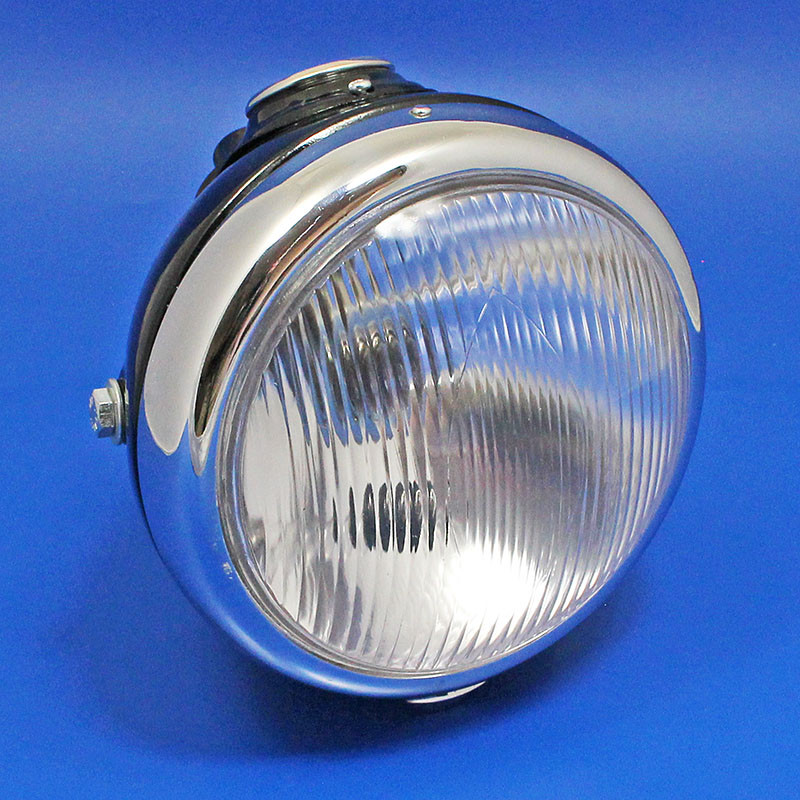

6 1/2" headlamp unit with black body and chrome rim, complete with OFF/L/H switch panel, ammeter and wire feed cover, equivalent to the Lucas MU42 model. The MU42 lamp is similar to the earlier DU42, but with a different rim fixing. It was widely used post-war from 1947 until the SSU700 was introduced in 1950. British pre-focus light unit with 35mm deep (out from rim) domed 'cat's eye' lens, retained in chrome rim with four headlamp wires. Complete with 6V British pre-focus P36D bulb with twin transverse filament and wired bulb holder. Also BA9S pilot light bulb in wired bulb holder. Rim catch arrangement is cast rim catch equivalent to Lucas part 509936 plus spectacle wire. Two side bolt fixing - approx 160mm minimum mounting width required. 150mm lens aperture, 175mm max rim diameter, 180mm max length.

The assembly consists of a plastic UK spec nest fitted with a "Tripod" P700 7" lens, with a side (parking) light. Offered in PAIRS only (2 assemblies). Supplied with 12V 60/55W halogen H4 bulb and T10 WEDGE base side light bulb holder fitted with 5W bulb. RIGHT-HAND DRIVE. These light units feature the standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs, including upgraded ones providing up to 150% more light on the road if required. See part numbers B910A, B472 and B475 for the most popular 6, 12 and 24V H4 spare bulbs. For the full range of H4 bulbs available, please see Halogen H4 P43t base options.  Suitable for LEDs on pre-1986 vehicles - a range of H4 LEDs are also available! - please search the LED Headlamps category for H4 P43T base options without integral lenses. For spare side light bulbs see B501, B117B or B507.

The assembly consists of a plastic Euro/USA spec nest fitted with a "Tripod" P700 7" lens, with a side (parking) light. Offered in PAIRS only (2 assemblies). Supplied with 12V 60/55W halogen H4 bulb and T10 WEDGE base side light bulb holder fitted with 5W bulb. LEFT-HAND DRIVE. These light units feature the standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs, including upgraded ones providing up to 150% more light on the road if required. See part numbers B910A, B472, B475 and H4-150 for the most popular 6, 12 and 24V H4 spare bulbs. For the full range of H4 bulbs available, please see Halogen H4 P43t base options. Suitable for LED conversion on pre-1986 vehicles - a range of H4 LEDs are also available! - please search the LED headlamps category for H4 P43T base options without integral lenses. For spare side light bulbs see B501, B117B or B507.

Metal headlamp bowl for standard 7" Lucas 700 series type light units. Two adjuster type. Supplied with metal back shell, chrome retaining rim holder and adjusters. Includes nest to body gasket.

6 1/2" headlamp unit with black body and chrome rim, complete with lighting and charging switch (U39) panel and ammeter, equivalent to the Lucas DU42 model. 6" glass aperture. The DU42 lamp is similar to the later MU42, but with a different rim fixing and a return on the rim. The DU42 was widely used pre 1947, when the MU42 was introduced. Supplied without bracket and cable. Fitted to many vintage motorcycles. British pre-focus light unit with 25mm deep (out from rim) domed 'cat's eye' lens, retained in chrome rim with three headlamp wires. Complete with 6V British pre-focus P36D bulb with twin transverse filament and wired bulb holder. Also BA9S pilot light bulb in wired bulb holder. Rim catch arrangement is a hinged chrome flap with a rolled end that latches around the front of a rim plus a stud that locates in the rim. Two side bolt fixing - approx 160mm minimum mounting width required. 150mm lens aperture, 175mm max rim diameter, 175mm max length.

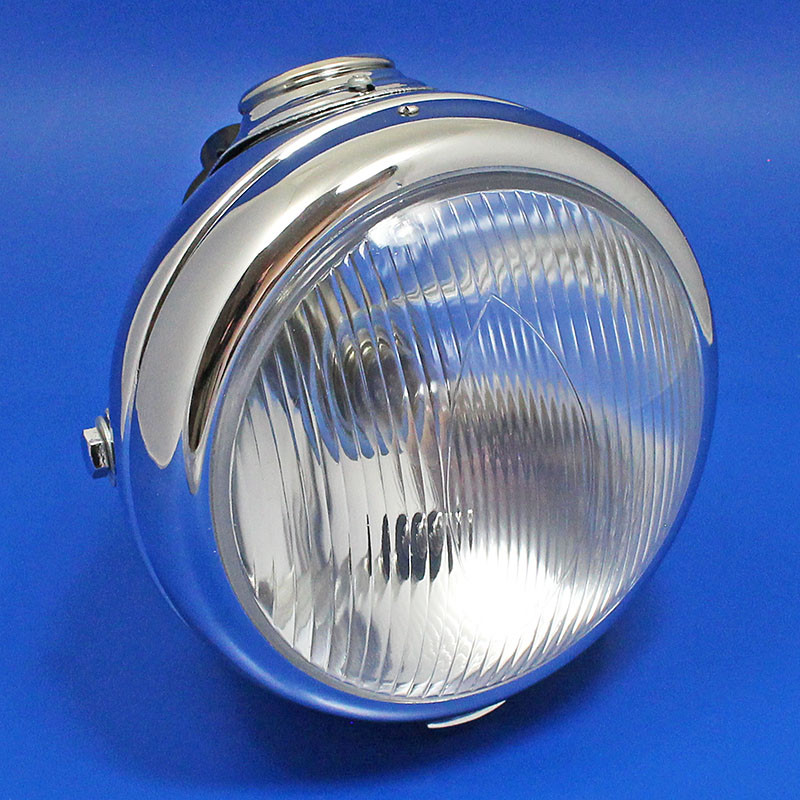

Chrome 6 1/2" headlamp unit, complete with switch panel and ammeter, equivalent to the Lucas MU42 model. The MU42 lamp is similar to the earlier DU42, but with a different rim fixing. It was widely used post-war from 1947 until the SSU700 was introduced in 1950. British pre-focus light unit with 35mm deep (out from rim) domed 'cat's eye' lens, retained in chrome rim with four headlamp wires. Complete with 6V British pre-focus P36D bulb with twin transverse filament and wired bulb holder. Also BA9S pilot light bulb in wired bulb holder. Rim catch arrangement is cast rim catch equivalent to Lucas part 509936 plus spectacle wire. Two side bolt fixing - approx 160mm minimum mounting width required. 150mm lens aperture, 175mm max rim diameter, 180mm max length.

6 1/2" headlamp unit in military green with blackout hood over lens cover with ut out/holes for head and side light. Complete with lighting and charging switch panel (U39) and ammeter, equivalent to the Lucas DU42 model. 6" glass aperture. The DU42 lamp is similar to the later MU42, but with a different rim fixing. The DU42 was widely used pre 1947, when the MU42 was introduced. Supplied without bracket and cable. Suitable for all WD machines, BSA, AJS, Matchless, Norton, Royal Enfield and Triumph. Approximate distace between mounting bolts 6 3/8" (162mm) British pre-focus light unit with flat lens cover and 8 x 95mm slot cut out under 120mm wide, 75mm long and 40mm (max) high hood. Light unit retained in chrome rim with three headlamp wires. Complete with 6V British pre-focus P36D bulb with twin transverse filament and wired bulb holder. Also BA9S pilot light bulb in wired bulb holder behind 6 hole pattern in lens cover. Rim catch arrangement is a hinged flap with a rolled end that latches around the front of the rim, plus a stud that locates in the rim. Two side bolt fixing - approx 160mm minimum mounting width required. 150mm lens aperture, 175mm max rim diameter, 240mm max length including hood.

7" Headlamp unit for British Pre-focus type bulbs, equivalent to the Lucas 700 type. With pilot hole for side lamp - push fit T10 WEDGE base bulb holder - please see part numbers B117B and B501 for spare bulbs. Please note that this part is marked for right hand drive though the actual bulb fitted can govern the dip pattern. Please search the BPF DC P36D base in 'All Bulbs' on www.classicbulbs.co.uk to see LHD, RHD and vertical dip pattern bulbs. Most commonly used with incandescent bulbs B312B (6V), B370 or B414 (12V) and B437 (24V). For halogen upgrades, please see part numbers B6721BHB (6V) and B414BH (45/40W 12V) or B463BH (60/55W 12V) - also B463BHT, a 60/55W halogen upgrade bulb with a 36mm British Pre Focus base plate but an H4 (3 spade) connection for convenience. Suitable for LED conversion on pre-1986 vehicles - a range of British Pre Focus LEDs are also available! - please search the LED headlamps category for P36D base options - popular part numbers include P36DLED-S30 and P36DLED-S30L and now P36DLED-P43 available in 6 and 12V

7" Headlamp unit for British Pre-focus type bulbs, equivalent to Lucas 700 type. Please note that this part is marked right hand drive, though the actual bulb fitted can govern the dip pattern. Please search the BPF DC P36D base in 'All Bulbs' caltegory on www.classicbulbs.co.uk to see LHD, RHD and vertical dip pattern bulbs. Most commonly used with incandescent bulbs B312B (6V), B370 or B414 (12V) and B437 (24V). For Halogen upgrades, please see part numbers B6721BHB (6V) and B414BH (45/40W 12V) or B463BH (60/55W 12V) - also B463BHT, a 60/55W halogen upgrade bulb with a 36mm British Pre Focus base plate but an H4 (3 spade) connection for convenience. Suitable for LED conversion on pre-1986 vehicles - a range of British Pre Focus LEDs are also available! - please search the LED Headlamps category for P36D base options - popular part numbers include P36DLED-S30 and P36DLED-S30L and now the popular P36DLED-P43 available in 6 and 12V.

7" sealed beam headlamp unit 12v 65/55watt, RHD, with side light window, three spade terminal connection. LHD unit also available.

7" sealed beam headlamp unit 12v 65/55watt, LHD, with side light window, three spade terminal connection. RHD unit also available.

5 3/4" Round, domed headlamp lens, without sidelight. UK Right Hand Drive specification. Equivalent to Lucas part number LUB223. These lenses feature the standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs, including upgraded ones providing up to 150% more light on the road if required. See part numbers B910A, B472, B475 and H4-150 for the most popular 6, 12 and 24V H4 spare bulbs. For the full range of H4 bulbs available, please see halogen and LED bulb options with the H4 P43t Base. Suitable for LEDs on pre-1986 vehicles - A range of H4 LEDs are also available! - please search the LED headlamps category for H4 P43T base options.

5 3/4" Round domed headlight lens, with sidelight. Fitted with a BA9S sidelight bulb holder, with two 6.3mm spade connections. Equivalent to Lucas part number LUB225. Please see part numbers B293B (6V), B233B (12V), B249 (24V) and B989LEDW-B for spare sidelight bulbs. These lenses feature the standard H4 P43T headlamp fitting and can be fitted with 6V, 12V or 24V bulbs, including upgraded ones providing up to 150% more light on the road if required. See part numbers B910A, B472, B475 and H4-150 for the most popular 6, 12 and 24V H4 spare bulbs. For the full range of H4 bulbs available, please see halogen and LED options with the H4 P43t base. Suitable for LED bulbs on pre-1986 vehicles - a range of H4 LEDs are also available! - please search the LED Headlamps category for H4 P43T base options.

5 3/4" Round domed headlamp lens for EURO/USA Left Hand Drive specification, with sidelight. Fitted with a BA9S sidelight bulb holder - with two 6.3mm spade connections. These lenses feature the standard H4 P43T headlamp fitting and can be fitted with 6V, 12V or 24V bulbs, including upgraded ones providing up to 150% more light on the road if required. See part numbers B910A, B472, B475 and H1-150 for the most popular 6, 12 and 24V H4 spare bulbs. For the full range of H4 bulbs available, please see halogen and LED bulbs with the H4 P43t base. Suitable for LED bulbs on pre-1986 vehicles - a range of H4 LEDs are also available! - please search the LED headlamps category for H4 P43T base options. For spare sidelight bulbs see B293B (6V), B233B (12V), B249 (24V) or B989LEDW-B.

PL700 light unit. RHD 7" reflector. This reproduction PL700 unit with the 'LUCAS PL' 'Shield' badge takes the popular H4 halogen bulb. It is a high quality reproduction of the original PL700 unit and like the original, is not "E" marked. A side (parking) light aperture can be specified at an additional cost, in which case a T10 WEDGE base side light bulb holder complete with 5W bulb will be fitted. RIGHT HAND DRIVE. These light units feature the standard H4 P43t fitting and can be fitted with 6V, 12V or 24V bulbs. See part numbers B910A, B472, B475 and H4-150 for the most popular 6, 12 and 24V H4 bulbs. For side light bubs see B501, B117B or B507. Search the H4 P43t bulb base for other options. Suitable for LED conversion on pre-1986 vehicles - a range ofH4 LEDs are also available! - please search the LED Headlamps category for H4 P43T base options without integral lenses (LED lamps with lenses are not compatible with tripod lamp designs). See also part number PL700RHD-HAL for an equivalent quality, great value alternative.

PL700 light unit. LHD 7" reflector. Reproduction PL700 unit with tripod design featuring a 'Lucas PL' 'Shield' badge - takes the popular H4 halogen bulb. This is a high quality reproduction of the original PL700 unit and, like the original, is not "E" marked. A side (parking) light aperture can be specified at an additional cost, in which case a T10 WEDGE base side light bulb holder complete with 5W bulb will be fitted. LEFT HAND DRIVE. These light units feature the standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs. See part numbers B910A, B472 and B475 for the most popular 6, 12 and 24V H4 bulbs. For side light bulbs see B501 (12V), B117B (6V) or B507 (24V). For the full range of H4 bulbs available, please search the H4 P43t bulb base. Suitable for LED conversion on pre-1986 vehicles - a range of H4 (and WEDGE T10) LEDs are now available! - please search the LED Headlamps category for H4 P43T and (WEDGE T10) base options without integral lenses, as LEDs with lenses are not compatible with tripod lamp designs. See also part number PL700LHD-HAL for an equivalent quality, great value alternative.

Hiqh quality 7" light unit. This reproduction PL700 unit with tripod design featuring the LUCAS PL 'Shield' badge takes the popular H4 halogen bulb. It is a high quality reproduction of the original PL700 and like the original, is not "E" marked. Side (parking) lights can be ordered at an additional cost of £5 per reflector unit - in which case a T10 WEDGE base side light bulb holder, complete with 5W bulb will be fitted. RIGHT or LEFT HAND DRIVE - please select which you require from the 'drop down' option box. These light units feature the standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs. See part numbers B910B, B472 and B475 for the most popular 6, 12 and 24V H4 spare bulbs.  For side light bulbs see B117B (6V), B501 (12V) or B507 (24V). Suitable for LED conversion on pre-1986 vehicles - H4 LEDs are also available! - please search the LED Headlamps category for suitable H4 P43T base options without integral lenses.

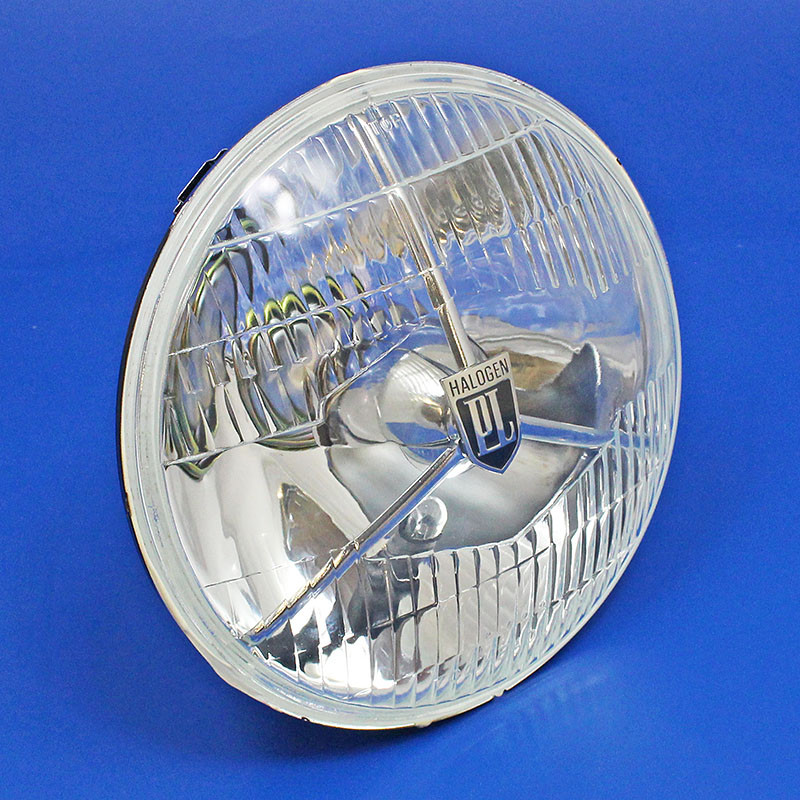

A PAIR of PL700 type light units. LHD 7" reflector unit with side lights. Reproduction PL700 type unit with tripod design featuring a 'Halogen PL' 'Shield' badge - takes the popular H4 halogen bulb. This is a high quality reproduction of the original PL700 reflector unit and like the original, is not "E" marked. T10 WEDGE base side light bulb holder complete with 12V 5W bulb fitted as standard. LEFT HAND DRIVE. These light units feature the standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs. See part numbers B910A, B472, B475 and H4-150 for the most popular 6, 12 and 24V H4 bulbs. For side light bulbs see B501 (12V), B117B (6V) or B507 (24V). For the full range of H4 bulbs available, please search the H4 P43t bulb base. Suitable for LED conversion on pre-1986 vehicles - a range of H4 (and T10) LEDs are now available! - please search the LED Headlamps category for H4 P43T base options without integral lenses, as LEDs with lenses are not compatible with tripod design lamps.

A PAIR of PL700 design light units. RHD 7" reflector units WITH side lights. A  quality reproduction of the PL700 type unit with tripod design featuring a 'Halogen PL' 'Shield' badge - takes the popular H4 halogen bulb. This is a great reproduction of the original PL700 reflector unit and like the original, is not "E" marked. T10 WEDGE base side light bulb holder complete with 12V 5W bulb fitted as standard. RIGHT HAND DRIVE. These light units feature the standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs. See part numbers B910B, B472, B475 and H4-150 for the most popular 6, 12 and 24V H4 bulbs. For side light bulbs see B501 (12V), B117B (6V) or B507 (24V). For the full range of H4 bulbs available, please search the H4 P43t bulb base. Suitable for LED conversion on pre-1986 vehicles - a range of H4 (and WEDGE T10) LEDs are now available! - please search the LED Headlamps category for H4 P43T base options without integral lenses, as LED's with lenses are not compatible with tripod design light units .

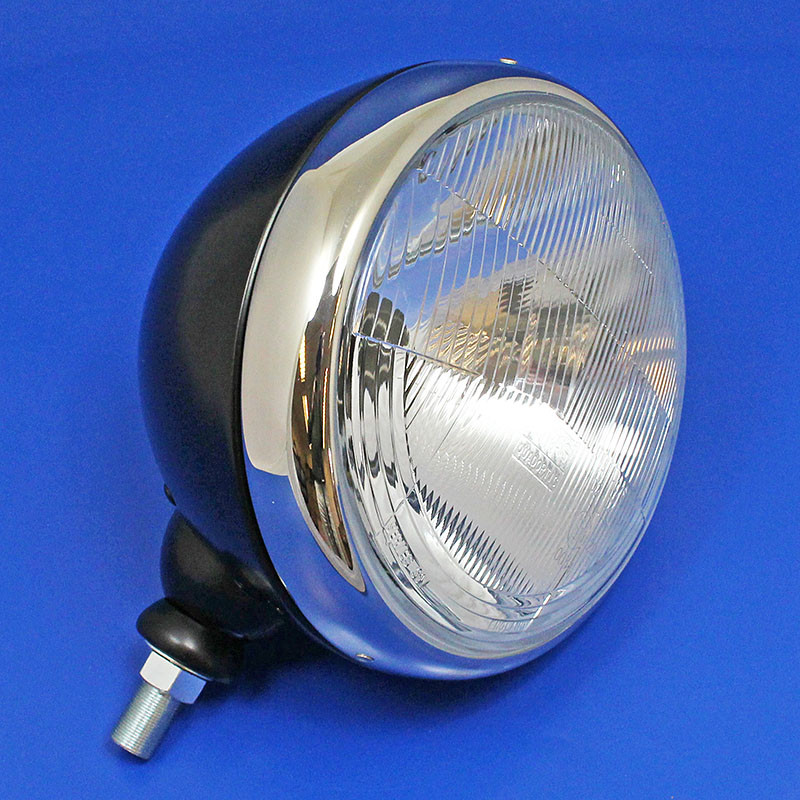

Pair of 7" free standing lamp with a highly polished stainless steel rim and satin black, powder coated body - ideal for painting body colour if needed. These lamps are modelled on the Lucas S700 headlight, used on the MG TD amongst other cars. We use the high quality Wipac Quadoptic lens that gives a fantastic light output - 7" round domed headlight lens, with or without sidelight. These lenses feature standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs. No bulb included. Either browse the bulb category for your preferred H4 bulb, or select one of our most popular options from the drop down box below. Part numbers B910A (6V Halogen), B472 (12V Halogen), B475 (24V Halogen), H4-150 (12V Halogen upgrade bulbs with up to 150% more light), P43TLED-H43L (6, 12 and 24V, positive and negative earth with integral lens) Classic White LED with projector lens, P43TLED-PP43 (12 and 24V, negative earth) Classic White LED with Heat Sink cooling, P43TLED-PP60 (12 and 24V negative Earth) Bright White LED with Mini Fan cooling. Side light bulb options B117B (6V capless), B501 (12V capless) B117LEDW-A (6, 12 and 24V, positive and negative earth). Fitted with chrome on brass 'Toby' medallion for a period look, as applied to our best vintage and classic lamp and mirror recreations. 'Toby Mitchell - London NW1' is the mark applied to our authentic reproductions of period accessories for over 30 years, continuing the manufacture and development of John Mitchell high quality 'Toby' branded product range.

Pair of 7" free standing lamps with a highly polished stainless steel shell and rim. We use the high quality Wipac Quadoptic lens that gives a fantastic light output, 7" Round Domed Headlight lens, with or without sidelight. These lamps are a recreation of the Lucas S700 headlight that were used on the MG TD amongst other cars. These lenses feature standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs. No bulbs included. Either browse the bulb category for your preferred H4 bulb, or select one of our most popular options from the drop down box below. Part numbers B910A (6V Halogen), B472 (12V Halogen), B475 (24V Halogen), H4-150 (12V Halogen upgrade bulbs with up to 150% more light), P43TLED-H43L (6, 12 and 24V, positive and negative earth with integral lens) Classic White LED with projector lens, P43TLED-PP43 (12 and 24V, negative earth) Classic White LED with Heat Sink cooling, P43TLED-PP60 (12 and 24V negative Earth) Bright White LED with Mini Fan cooling. Side light bulb options B117B (6V capless), B501 (12V capless) B117LEDW-A(6, 12 and 24V, positive and negative earth). Fitted with chrome on brass 'Toby' medallion for a period look as applied to our best vintage and classic lamp and mirror recreations. 'Toby Mitchell - London NW1' is the mark applied to our authentic reproductions of period accessories for over 30 years, continuing the manufacture and development of John Mitchell high quality 'Toby' branded product range.

Freestanding chrome plated headlamp unit fitted with 12 volt light unit providing main beam, dipped beam and sidelight). These lamps measure approx 182mm diameter x 140mm deep overall. Single 12mm bolt mounting. Supplied in PAIRS only. We offer these lamps for either left dip for right hand drive vehicles OR right dip for left hand drive vehicles. 6 volt units are available at additional cost - please enquire for details.

Headlamp EPDM rim seal for many Lucas lamps including the L140, L148, L150 and L165 and L166. The flap locates in the 3mm wide groove in the bowl rim, behind where the reflector (bead type, rather than hemispherical cut out tab type) meets the bowl, holding both the bowl and reflector together, also creating a seal onto the glass in the rim. The seal can be cut to the exact length required and superglued into a ring, for a neat finsh and ease of installation. Priced per 0.5m (50cm) though we cut the length you require off the roll. Please indicate amount required. Approximate lengths required for popular Lucas lamps (per lamp): L140/L148 - 64cm L150 - 68.5cm L166/L165 - 73cm

Plastic front lens for our 297 (Lucas 1130) type sidelamps. Purchase with O-ring seal part number 361A. Fixed in position with retaining screw part number 865 - please order seperately if required. -- Clear lens

Pair of 7" free standing stainless steel headlamps (PAIR) with side lights, with a highly polished stainless steel body shell and rim, suitable for many classic and kit cars. We use the high quality Wipac Quadoptic lens that gives a fantastic light output - 7" round domed headlight lens, with sidelight. These lamps are a recreation of the Lucas S700 headlight that were used on the MG TD amongst other cars. These lenses feature standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs, No Bulb included. Either browse the Bulb category for your preferred H4 bulb, or select one of our most popular options from the drop down box below. Part numbers B910A (6V Halogen), B472 (12V Halogen), B475 (24V Halogen), H4-150 (12V Halogen upgrade bulbs with up to 150% more light), P43TLED-H43L (6, 12 and 24V, positive and negative earth with integral lens) Classic White LED with projector lens, P43TLED-PP43 (12 and 24V,negative earth) Classic White LED with Heat Sink cooling, P43TLED-PP60 (12 and 24V Negative Earth) Bright White LED with Mini Fan cooling. Side light bulb options B117B (6V capless), B501 (12V capless) B117LEDW-A (6, 12 and 24V, positive and negative earth).

Sealed beam headlamp connector with lead, nylon block three Lucar (6,3mm spade) connector, three wires with headlamp bowl sealing grommet and soldered bullets, overall length 850mm.

British Pre-focus headlamp unit complete with mounting kit. The reflector is equivalent to the Lucas 700 series unit. For Right Hand Drive (dip to left) vehicles. Complete and ready to install with metal wing mounting bowl, adjuster screws, 12 volt bulb, retaining rims and gasket seals!

Euro/USA Left hand Drive specification 7" round, rust-proof glass fibre reinforced plastic reflector with sidelight. These lenses offer superb all-round levels of performance. They are a direct replacement for standard 7" lenses. These units feature the standard H4 P43T bulb socket and can be fitted with 6V, 12V or 24V bulbs, including upgraded ones providing up to 150% more light on the road if required. See part numbers B910A, B472, B475 and H4-150 for the most popular 6, 12 and 24V H4 bulbs. For the full range of H4 bulbs available, please see halogen bulb options with the H4 P43t base. Suitable for LED bulbs on pre-1986 vehicles - a range of H4 LEDs are also available! - please search the LED headlamps category for H4 P43T base options. For side light bubs see B117B (6V), B501 (12V), B507 (24V) or B117LEDW-A. For Left Hand Drive vehicles - lights dip to the right.

UK specification 7" round, rust-proof glass fibre reinforced plastic reflector with sidelight. Headlamps dip to the left. These lenses offer superb all-round levels of performance. They are a direct replacement for standard 7" reflector units. H4 P43t headlamp socket and T10 WEDGE 5W sidelight. As fitted to Morgan plus four models, plus many other British vehicles. These units can be fitted with 6V, 12V or 24V bulbs, including upgraded ones providing up to 150% more light on the road if required. See part numbers B910A, B472, B475 and H4-150 for the most popular 6, 12 and 24V H4 spare bulb options. For the full range of H4 bulbs available, please see halogen bulb options with the H4 P43t Base. Suitable for LED bulbs on pre-1986 vehicles - a range of H4 LEDs are also available! - please search the LED headlamps category for H4 P43T base options. For spare side light bubs see B117B (6V), B501 (12V) or B507 (24V) or B117LEDW-A.

Euro/USA Left Hand Drive specification 7" round, rust-proof glass fibre reinforced plastic reflector without sidelight. These lenses offer superb all-around levels of performance. They are a direct replacement for standard 7" lenses. These lamps feature the standard H4 P43T headlamp socket and can be fitted with 6V, 12V or 24V bulbs, including upgraded ones providing up to 150% more light on the road if required. See part numbers B910A, B472, B475 and H4-150 for the most popular 6, 12 and 24V H4 spare bulbs. For the full range of H4 bulbs available, please see halogen bulb options with the H4 P43t base. Suitable for LED bulbs on pre-1986 vehicles - a range of H4 LEDs are also available! - please search the LED headlamps category for H4 P43T base options. For Left Hand Drive vehicles - lights dip to the right.

UK 7" round, rust proof glass fibre reinforced plastic reflector without sidelight. These lenses offer superb all-round levels of performance. They are a direct replacement for standard 7" lenses. These lamps feature the standard H4 P43T headlamp socket and can be fitted with 6V, 12V or 24V bulbs, including upgraded ones providing up to 150% more light on the road if required. See part numbers B910A, B472, B475 and H4-150 for the most popular 6, 12 and 24V H4 spare bulbs. For the full range of H4 bulbs available, please see halogen bulb options with the H4 P43t base. Suitable for LED bulbs on pre-1986 vehicles - a range of H4 LEDs are also available! - please search the LED headlamps category for H4 P43T base options. For UK Right-Hand Drive vehicles, the lights dip to the left.

PAIR - 7" Round Euro/USA (LHD) Wipac Quadoptic headlamp with metal reflector. Supplied complete with dust cover and 12V bulbs - H4 P43t 60/55W and T10 WEDGE 5W sidelight. These units feature the standard H4 P43T bulb socket and can be fitted with 6V, 12V or 24V bulbs, including upgraded ones providing up to 150% more light on the road if required. See part numbers B910A, B472, B475 and H4-150 for the most popular 6, 12 and 24V H4 spare bulbs. For the full range of H4 bulbs available, please see halogen bulb options with the H4 P43t base. Suitable for LED bulbs on pre-1986 vehicles - a range of H4 LEDs are also available! - please search the LED Headlamps category for H4 P43T base options. For spare side light bubs see B117B (6V), B501 (12V), B507 (24V) or B117LEDW-A.

PAIR - 7" Round UK (RHD) Wipac Quadoptic headlamp with metal reflector. Supplied complete with dust cover and 12V bulbs - H4 P43t 60/55W and T10 WEDGE 5W sidelight. These units feature the standard H4 P43T bulb socket and can be fitted with 6V, 12V or 24V bulbs, including upgraded ones providing up to 150% more light on the road if required. See part numbers B910A, B472, B475 and H4-150 for the most popular 6, 12 and 24V H4 spare bulbs. For the full range of H4 bulbs available, please see halogen bulb options with the H4 P43t base. Suitable for LED bulbs on pre-1986 vehicles - a range of H4 LEDs are also available! - please search the LED headlamps category for H4 P43T base options. For spare side light bubs see B117B (6V), B501 (12V), B507 (24V) or B117LEDW-A.

PAIR - 7" Round Euro/USA (LHD) Wipac Quadoptic headlamps with metal reflector. Supplied complete with dust cover and 12V H4 P43t 60/55W bulb. These lamps feature the standard H4 P43T headlamp socket and can be fitted with 6V, 12V or 24V bulbs, including upgraded ones providing up to 150% more light on the road if required. See part numbers B910A, B472, B475 and H4-150 for the most popular 6, 12 and 24V H4 spare bulbs. For the full range of H4 bulbs available, please see halogen bulb options with the H4 P43t base. Suitable for LED bulbs on pre-1986 vehicles - A range of H4 LEDs are also available! - please search the LED Headlamps category for H4 P43T base options.

PAIR - 7" Round UK (RHD) Wipac Quadoptic headlamps with metal reflector. Supplied complete with dust cover and 12V H4 P43t 60/55W bulb. These lamps feature the standard H4 P43T headlamp socket and can be fitted with 6V, 12V or 24V bulbs, including upgraded ones providing up to 150% more light on the road if required. See part numbers B910A, B472, B475 and H4-150 for the most popular 6, 12 and 24V H4 spare bulbs. For the full range of H4 bulbs available, please see halogen bulb options with the H4 P43t base. Suitable for LED bulbs on pre-1986 vehicles - H4 LEDs are also available! - please search the LED Headlamps category for H4 P43T base options.

Replacement part equivalent to Lucas type P700 (7") 'Tripod' bar headlamp reflector unit. Supplied with 12V 60/55W halogen H4 bulb and T10 WEDGE base side light bulb holder fitted with 5W bulb. RIGHT HAND DRIVE. Offered in PAIRS only (2 pieces). These light units feature the standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs, including upgraded ones providing up to 150% more light on the road if required. See part numbers B910A, B472, B475, H4-150 for the most popular 6, 12 and 24V H4 spare bulbs. For the full range of H4 bulbs available, please see bulb types for the Halogen H4 P43t Base. Suitable for LEDs on pre-1986 vehicles - a range of H4 LEDs are also available! - please search the LED headlamps category for H4 P43T base options without integral lenses (as they are not compatible with the tripod design). For spare side light bubs see B501, B117B or B507.

Replacement part equivalent to Lucas type P700 (7") 'Tripod' bar headlamp reflector unit. Supplied with 12V 60/55W halogen H4 bulb and T10 WEDGE base side light bulb holder fitted with 5W bulb. LEFT HAND DRIVE. Offered in PAIRS only (2 pieces). These light units feature the standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs, including upgraded ones providing up to 150% more light on the road if required. See part numbers B910A, B472, B475 and H4-150 for the most popular 6, 12 and 24V H4 spare bulbs. For the full range of H4 bulbs available, please see the Halogen H4 P43t base options. Suitable for LEDs on pre-1986 vehicles - a range of H4 LEDs are also available! - please search the LED Headlamps category for H4 P43T base options without integral lenses (as these are not comnpatible with the tripod design). For spare side light bubs see B501, B117B or B507.

Brass headlamp stud mounting nut for Lucas RB160, P100, P80 etc. type lamps. Thread 1/2" x 26 tpi. Equivalent to Lucas part number 500357

Hexagonal brass nut for headlamp, 5/8" x 26 tpi (fine thread). Approx 16mm bore. 10mm deep. 13/16" AF.

Headlamp glass to rim rubber dust gasket for 7" Lucas 700 series type lamps. Equivalent to Lucas part number 552906.

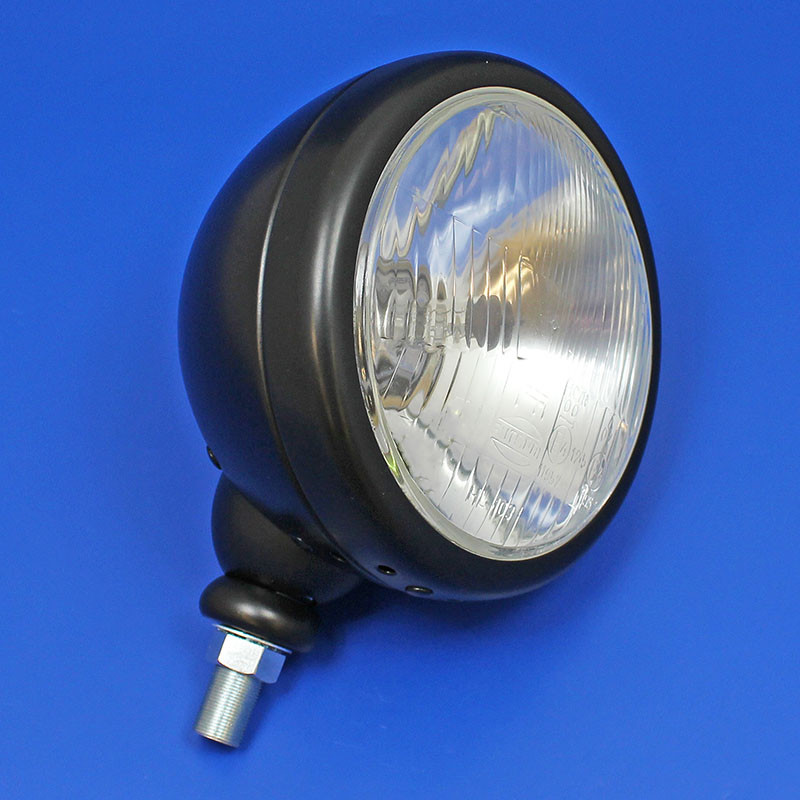

Pair of 7" free standing black headlamps. Satin black plastic powder coating (ideal for painting body colour if needed), suitable for many classic and kit cars. We use the high quality Wipac Quadoptic lens that gives a fantastic light output, 7" round domed headlight lens, with sidelight. These lamps are a recreation of the Lucas S700 headlight that were used on the MG TD amongst other cars. These lenses feature standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs. No bulbs included. Either browse the bulb category for your preferred H4 bulb, or select one of our most popular options from the drop down box below. Part numbers B910A (6V Halogen), B472 (12V Halogen), B475 (24V Halogen), H4-150 (12V Halogen upgrade bulbs with up to 150% more light), P43TLED-H43L (6, 12 and 24V, positive and negative earth with integral lens) Classic White LED with projector lens, P43TLED-PP43 (12 and 24V, negative earth) Classic White LED with Heat Sink cooling, P43TLED-PP60 (12 and 24V negative Earth) Bright White LED with Mini Fan cooling. Side light bulb options B117B (6V capless), B501 (12V capless) B117LEDW-A (6, 12 and 24V, positive and negative earth)

Pair of 5 3/4" Freestanding headlights with sidelights, with a highly polished stainless steel housing. Fitted with 5 3/4" round domed headlamp lens, with sidelight. These lenses feature the standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs. No bulb included. Either browse the bulb category for your preferred H4 bulb, or select one of our most popular options from the drop down box below. Part numbers B910A (6V Halogen), B472 (12V Halogen), B475 (24V Halogen), H4-150 (12V Halogen upgrade bulbs with up to 150% more light), P43TLED-H43L (6, 12 and 24V, positive and negative earth with integral lens) Classic White LED with projector lens, P43TLED-PP43 (12 and 24V, negative earth) Classic White LED with Heat Sink cooling, P43TLED-PP60 (12 and 24V negative Earth) Bright White LED with Mini Fan cooling. Side light bulb options B293B (6V MCC/BA9S), B989BB (12V MCC/BA9S) or LEDs white B989LEDW-B or warm white B989LEDWW-B (LEDs 6, 12 and 24V, positive and negative earth compatible). These are ideal for Morgan 3 wheelers, Austin 7's and 7 type kit cars amongst others.

Pair of 5 3/4" free standing headlights WITH side lights. Satin black powder coated steel body, ideal for painting body colour if needed, with polished stainless steel rim. Fitted with 5 3/4" round domed headlight lens with sidelight. These lenses feature the standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs. No bulb included. Either browse the bulb category for your preferred H4 bulb, or select one of our most popular options from the drop down box below. Part numbers B910A (6V Halogen), B472 (12V Halogen), B475 (24V Halogen), H4-150 (12V Halogen upgrade bulbs with up to 150% more light), P43TLED-H43L (6, 12 and 24V, positive and negative earth with integral lens) Classic White LED with projector lens, P43TLED-PP43 (12 and 24V, negative earth) Classic White LED with Heat Sink cooling, P43TLED-PP60 (12 and 24V negative Earth) Bright White LED with Mini Fan cooling. Side light bulb options B293B (6V MCC/BA9S), B989BB (12V MCC/BA9S) or LEDs white B989LEDW-B or warm white B989LEDWW-B (LEDs 6, 12 and 24V, positive and negative earth compatible). These are ideal for Morgan 3 wheelers, Austin 7's and 7 type kit cars amongst others.

Pair of 5 3/4" Free Standing headlights WITHOUT side lights. Satin black powder coated steel body, ideal for painting body colour if needed, with polished stainless steel rim. Fitted with 5 3/4" round domed headlamp lens, without sidelight. These lenses feature the standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs. No bulb included. Either browse the bulb category for your preferred H4 bulb, or select one of our most popular options from the drop down box below. Part numbers B910A (6V Halogen), B472 (12V Halogen), B475 (24V Halogen), H4-150 (12V Halogen upgrade bulbs with up to 150% more light), P43TLED-H43L (6, 12 and 24V, positive and negative earth with integral lens) Classic White LED with projector lens, P43TLED-PP43 (12 and 24V, negative earth) Classic White LED with Heat Sink cooling, P43TLED-PP60 (12 and 24V negative Earth) Bright White LED with Mini Fan cooling. These are ideal for Morgan 3 wheelers, Austin 7's and 7 type kit cars amongst others. PLEASE NOTE if LHD light units are selected these can only be supplied with the side light function.

A pair of 5 3/4" free standing headlights WITH side lights. Satin black powder coated steel body, ideal for painting body colour if needed. Fitted with 5 3/4" round domed headlamp lens with sidelight. These lenses feature the standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs. No bulb included. Either browse the bulb category for your preferred H4 bulb, or select one of our most popular options from the drop down box below. Part numbers B910A (6V Halogen), B472 (12V Halogen), B475 (24V Halogen), H4-150 (12V Halogen upgrade bulbs with up to 150% more light) P43TLED-H43L (6, 12 and 24V, positive and negative earth with integral lens) Classic White LED with projector lens P43TLED-PP43 (12 and 24V, negative earth) Classic White LED with Heat Sink cooling, P43TLED-PP60 (12 and 24V negative Earth) Bright White LED with Mini Fan cooling. Side light bulb options B293B (6V MCC/BA9S), B989BB (12V MCC/BA9S) or LEDs white B989LEDW-B or warm white B989LEDWW-B (LEDs 6, 12 and 24V, positive and negative earth compatible). These lamps are ideal for Morgan 3 wheelers, Austin 7's and 7 type kit cars amongst others.

Pair of small free standing headlamp unit with single mounting stem bolt, metal bucket back, all chrome, approx 150mm overall diameter. a solid and robust unit which has various applications. Fitted with 5 3/4" Round Domed Headlight lens, with or without sidelights. These lenses feature standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs. No bulb included,  Either browse the Bulb category for your preferred H4 bulb, or select one of our most popular options from the ‘drop down’ box below – part numbers B910B (6V Halogen), B472 (12V Halogen), B475 (24V Halogen), H4-150 (12V Halogen upgrade bulbs with up to 150% more light), P43TLED-H43L (6, 12 and 24V, positive and negative earth with integral lens) Classic White LED with projector lens, P43TLED-PP43 (12 and 24V,negative earth) Classic White LED – with Heat Sink cooling, P43TLED-PP60 (12 and 24V Negative Earth) Bright White LED – with Mini Fan cooling. ALL left hand drive units have a pilot (NO option of no pilot) Side light bulb options B117B (6V Capless), B501 (12V capless) B117LEDW-A  (6, 12 and 24V, positive and negative earth).

Rubber lens 'O' ring seal for Lucas 1130 type sidelamps (297 series lamps) fitted with the plastic lens (part number 361).

British Pre-focus P36D headlamp connector with lead. Double contact with three pin bayonet bulb holder, three wires with headlamp bowl sealing grommet and soldered bullet connecters, overall length 910mm.

Headlamp bowl to body rubber gasket for all two screw adjuster 7" (700 type) lamps. Equivalent to Lucas part number 54521487.

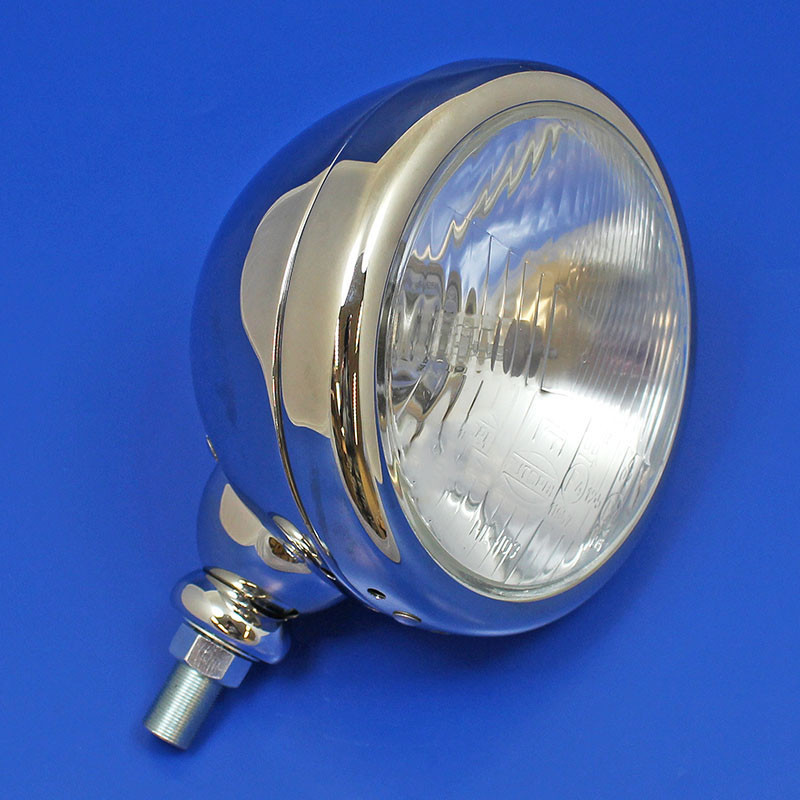

Pair of 7" free standing polished stainless steel headlamps, with a highly polished stainless steel shell and rim, suitable for many classic and kit cars. We use the high quality Wipac Quadoptic lens that gives a fantastic light output, 7" round domed headlight lens, without sidelight. These lamps are a recreation of the Lucas S700 headlight that were used on the MG TD amongst other cars. These lenses feature standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs. No bulb included. Either browse the bulb category for your preferred H4 bulb, or select one of our most popular options from the drop down box below. Part numbers B910A (6V Halogen), B472 (12V Halogen), B475 (24V Halogen), H4-150 (12V Halogen upgrade bulbs with up to 150% more light), P43TLED-H43L (6, 12 and 24V, positive and negative earth with integral lens) Classic White LED with projector lens, P43TLED-PP43 (12 and 24V, negative earth) Classic White LED with Heat Sink cooling, P43TLED-PP60 (12 and 24V negative Earth) Bright White LED with Mini Fan cooling.

Pair of 7" free standing black headlamps. Satin black plastic powder coating (ideal for painting body colour if needed), suitable for many classic and kit cars. We use the high quality Wipac Quadoptic lens that gives a fantastic light output, 7" round domed headlight lens, without sidelight. These lamps are a recreation of the Lucas S700 headlight that were used on the MG TD amongst other cars. These lenses feature standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs, No Bulb included, Either browse the Bulb category for your preferred H4 bulb, or select one of our most popular options from the drop down box below. Part numbers B910A (6V Halogen), B472 (12V Halogen), B475 (24V Halogen), H4-150 (12V Halogen upgrade bulbs with up to 150% more light), P43TLED-H43L (6, 12 and 24V, positive and negative earth with integral lens) Classic White LED with projector lens, P43TLED-PP43 (12 and 24V, negative earth) Classic White LED with Heat Sink cooling, P43TLED-PP60 (12 and 24V negative Earth) Bright White LED with Mini Fan cooling.

Headlight peak for 7" lights. Stainless steel with clips for behind inner headlight rim.

New manufactured chrome on brass peaked headlamp bezel, really nice deep chrome finish, weighs 1.08kgs,

Nest with black plastic back shell for 7" light units - includes nest to body sealing ring/gasket, plated retaining rim holder and adjusters. This is a direct replacement for the Lucas type metal nest (see part numbers 357A and 357B) and suits nearly all 7" (700 series) light units.

Large, 10" diameter, polished stainless steel headlamp units. Approximately 255mm diameter x approximately 135mm deep. Single mounting bolt, cables enter from lower rear. Patterned shallow dome glass lens. Offered in 12 volt only. Priced and supplied as PAIR

Metal headlamp bowl for standard 7" Lucas 700 series type light units. Three adjuster version. Supplied with metal back shell, chrome retaining rim holder and adjusters.

An authentic reproduction of the Lucas L140 type headlamp used on many British cars in the 1930s and 40s, including those manufactured by Armstrong Siddeley, Austin, Hillman, Jowett, Lanchester, MG, Morris, Riley, Rover, Singer, Standard, Triumph and Wolseley. Over 150 pre-War applications. Supplied as a PAIR of lamps. We have worked with our specialist suppliers to re-tool these lamps from original Lucas lamp patterns. The bodies are spun in 18 gauge brass, with the reflector and bulb holder assembly, lamp rim and hinged stone guard rim (where fitted) in 20 gauge brass. The ball shell mounting base is lost wax cast in bronze. We finish all components in our workshop before polishing and plating, then final assembly. Lamp and stoneguard rims are chrome plated and shells are either chrome plated or finished with a gloss black powder coat. A polished brass/bronze finish is available by special request. The reflector finish is high quality silver plate as standard. Daisy head screw and rim catch arrangement. We offer a choice of incandescent or LED bulbs. Overall diameter 8 1/2", glass aperture 7 1/4", overall depth (excluding lens) 6 1/4". Offered with upright mounting arrangement only. The lamp shell is fitted with chrome on brass 'Toby' medallion, as used on our finest period lamp and mirror recreations. 'Toby Mitchell - London NW1' is the mark Vintage Supplies has applied to its authentic reproductions of select CAV and Lucas pattern lamps and mirrors for over 30 years, continuing the manufacture and development of John Mitchell high-quality 'Toby' branded product range. These superb lamps are available in a range of options: Black or Chrome shell - in line with the original 'Ebony black/chrome rim' or 'All chrome' offer, we manufacture these lamps with a gloss black powder-coated shell and chrome rim, or all chrome finish. 'Difusa' or two styles of Domed and Fluted lens - Diffused glass lenses have a finely textured surface on the inner side of the lens, which makes the beam more uniform, wider and deeper. They stop only a small amount of light compared to plain, clear glass lenses. They give a softer appearance, with light that covers a wider area, noting it does not penetrate as far. Diffused glass lenses were replaced by fluted lenses, which refract a wide-angle beam of light while providing good long-distance illumination. We offer two types of domed and fluted lens - a fully fluted 'U' flute design and a half-fluted/half-plain lens. Lamps with flat, diffused glass lenses feature an angled return on the inner rim aperture. Lamps with domed and fluted lenses feature a flat rim. Bi-flex bar - This bar, which spans the reflector and obscures the bulb, is cast in bronze then plated. It features a spun and polished aluminium auxiliary reflector on the rear of the bar, to aid long-distance illumination. The front centre section houses a polished brass 'Toby' badge, along with BI-FLEX, LONG RANGE wording. Bi-flex bars are only offered with domed and fluted lens options so that the centre detail of the bar is visible in the clear section of the lens - so please select one of these designs from the lens 'drop down' option box if you would like Bi-flex bars. Reflector finish - Silvered reflectors as standard, providing the best standard of lighting performance with incandescent bulbs and LEDs. Stoneguards - The lamps are supplied without a stoneguard as standard. We offer a choice of fitted stone-guard options, all handmade in brass with chrome plate finish - our CA800 series flat guards, with 18 gauge spun rims, traditional pattern brackets and polished stainless steel nuts and fixings - offered with standard or narrow rim, and hinged 20 gauge stone-guard rims with hand made hinges and bottom catch fittings. All styles of guard feature 16 swg brass wire mesh (approx. 12mm aperture) soft soldered into the guard rim. The mesh on hinged guards is flat for diffused glass lenses and slightly domed for the fluted lenses. Lighting options - The lamps come fitted with our 853 part number BA15D double contact bulb holder, which slides in and out the socket in the rear of the reflector to aid the focussing of the light beam. Please select your desired lighting option: incandescent bulb - 6V 36/36W, 12V 36/36W or 12V 45/35W, or LED light - 6 & 12V Dip & Main with integral lens (diffused glass lens only) or dip/main 6V or 12V LED with shield (any lens and Bi-flex) Please configure your lamps using the drop-down option boxes below. Your selections should produce a final product cost for the pair of lamps, including your chosen options. If you require any assistance then please email or contact us by 'phone. For further information on the specification and manufacture of our reproduction vintage headlamp range, please visit www.tobyvintage.com While we aim to hold all componentry in stock, these lamps are assembled and finished to order, so please allow at least two weeks for this work prior to despatch, or get in touch for a delivery date for your exact configuration.

An authentic reproduction of the Lucas L148 type headlamp used on a number of British cars in the 1930's and 40's, including those manufactured by Morgan, Rover, Talbot and Wolseley. This lamp has the same rim and reflector as the L140, but a signifantly deeper lamp shell. Supplied as a PAIR of lamps. We have worked with our specialist suppliers to re-tool these lamps from original Lucas lamp patterns. The bodies are spun in 18 gauge brass, with the reflector and bulb holder assembly, lamp rim and hinged stone guard rim (where fitted) in 20 gauge brass. The ball shell mounting base is lost wax cast in bronze. We finish all components in our workshop before polishing and plating, then final assembly. Lamp shells, rims and stoneguard rims are chrome plated. Gloss black powder coat or polished brass/bronze finish is available by special request. The reflector finish is silver plate as standard. Cast bronze rim catch arrangement as original. We offer a choice of incandescent or LED bulbs. Overall diameter 8 1/2", glass apperture 7 1/4", overall depth (excluding lens) 7 1/2". Offered with upright mounting arrangement and with ball shell mounting base fitted at 35 degrees from upright, to valance. The lamp shell is fitted with a chrome on brass 'Toby' medallion, as used on our finest period lamp and mirror recreations. 'Toby Mitchell - London NW1' is the mark Vintage Supplies has applied to its authentic reproductions of select CAV and Lucas pattern lamps and mirrors for over 30 years, continuing the manufacture and development of John Mitchell’s high quality 'Toby' branded product range. These superb lamps are available with a range of options: Black or Chrome shell - in line with the original 'Ebony black/chrome rim' or 'All chrome' offer, we manufacture these lamps with a gloss black powder-coated shell and chrome rim, or all chrome finish. 'Difusa' or two styles of Domed and Fluted lens - Diffused glass lenses have a finely textured surface on the inner side of the lens, that makes the beam more uniform, wider and deeper. They stop only a small amount of light compared to plain, clear glass lenses. They give a softer appearance, with light that covers a wider area, noting it does not pentrate as far.  Diffused glass lenses were replaced by fluted lenses, which refract a wide angle beam of light while providing good long distance illumination. We offer two types of domed and fluted lens for this lamp - a fully fluted 'U' flute design lens and a half fluted/half plain lens. Lamps with flat, diffused glass lenses feature an angled return on the rim apperture. Lamps with domed and fluted lenses feature a flat rim. Bi-flex bar - This bar, that spans the reflector and obscures the bulb, is cast in bronze then plated. It features a spun and polished aluminium auxiliary reflector on the rear of the bar, to aid long distance illumination. The front centre section houses a polished brass 'Toby' badge, along with BI-FLEX, LONG RANGE wording. Bi-flex bars are only offered with domed and fluted lens options, so that the centre detail of the bar is visible in the clear section of the lens - so please select one of these designs from the lens drop down option box if you would like Bi-flex bars. Reflector finish - Silvered reflectors as standard, providing the best standard of lighting performance with incandescent bulbs and LEDs. Mounting angle - These lamps can be specified with upright mounting or with the ball shell mounting base fitted at 35 degrees from upright, to valance. Stoneguards - The lamps are supplied without a stoneguard as standard. We offer a choice of fitted stoneguard options, all hand made in brass with chrome plate finish - our CA800 series flat guards, with 18 gauge spun rims, traditional pattern brackets and polished stainless steel nuts and fixings - offered with standard or narrow rim, and hinged 20 gauge stoneguard rims with hand made hinges and bottom catch fittings. All styles of guard feature 16 swg brass wire mesh (approx. 12mm aperture) soft soldered into the guard rim. The mesh on hinged guards is flat for diffused glass lenses and slightly domed for the fluted lenses. Lighting options - The lamps come fitted with our 853 part number BA15D double contact bulb holder, which can slide in and out the socket in the rear of the reflector to aid focussing of the light beam. Please select your desired lighting option: incandescent bulb - 6V 36/36W, 12V 36/36W or 12V 45/35W, or LED light - 6 & 12V Dip & Main with integral lens (diffused glass lens only) or dip/main 6V or 12V LED with shield (any lens and Bi-flex) Please configure your lamp using the drop down option boxes below. Your selections should produce a final product cost for the pair of lamps, including you chosen options. If you require any assistance then please email or contact us by 'phone. For further information on the specification and manufacture of Vintage Supplies' reproduction headlamp range, please visit www.tobyvintage.com While we aim to hold all componentry in stock, these lamps are assembled and finished to order, so please allow at least two weeks for this work prior to despatch, or get in touch for a delivery date for your exact configuration.

An authentic reproduction of the Lucas L150 type headlamp used on a number of British cars in the 1930's and 40's, including those manufactured by Armstrong Siddeley, Austin, Commer, Daimler, Hillman, Lanchester, MG, Morris, Riley, Rover, Singer, SS, Triumph and Wolseley. Supplied as a PAIR of lamps. We have worked with our specialist suppliers to re-tool these lamps from original Lucas lamp patterns. The bodies are spun in 18 gauge brass, with the reflector and bulb holder assembly, lamp rim and hinged stone guard rim (where fitted) in 20 gauge brass. The ball shell mounting base is lost wax cast in bronze. We finish all components in our workshop before polishing and plating, then final assembly. Lamp and stoneguard rims are chrome plated and shells are either chrome plated or finished with a gloss black powder coat. A polished brass/bronze finish is available by special request. The reflector finish is silver plate as standard. Daisy head screw and rim catch arrangement. We offer a choice of incandescent or LED bulbs. Overall diameter 9", glass aperture 7 7/8", overall depth (excluding lens) 6 1/2". Offered with an upright mounting arrangement and with ball shell mounting base fitted at 35 degrees from upright, to the valance. The lamp shell is fitted with chrome on brass 'Toby' medallion, as used on our finest period lamp and mirror recreations. 'Toby Mitchell - London NW1' is the mark Vintage Supplies has applied to its authentic reproductions of select CAV and Lucas pattern lamps and mirrors for over 30 years, continuing the manufacture and development of John Mitchell’s high quality 'Toby' branded product range. These superb lamps are available with a range of options: Black or Chrome shell - in line with the original 'Ebony black/chrome rim' or 'All chrome' offer, we manufacture these lamps with a gloss black powder coated shell and chrome rim, or all chrome finish.  'Difusa' or Domed and Fluted lens - Diffused glass lenses have a finely textured surface on the inner side of the lens, that makes the beam more uniform, wider and deeper. They stop only a small amount of light compared to plain, clear glass lenses. They give a softer appearance, with light that covers a wider area, noting it does not pentrate as far.  Diffused glass lenses were replaced by fluted lenses, which refract a wide angle beam of light while providing good long distance illumination. We also offer a fully fluted 'U' flute design lens for this lamp. Lamps with flat, diffused glass lenses feature an angled return on the rim apperture. Lamps with domed and fluted lenses feature a flat rim. Bi-flex bar - This bar, that spans the reflector and obscures the bulb, is cast in bronze then plated. It features a spun and polished aluminium auxiliary reflector on the rear of the bar, to aid long distance illumination. The front centre section houses a polished brass 'Toby' badge, along with BI-FLEX, LONG RANGE wording. Bi-flex bars are only offered with the domed and fluted lens options, so that the centre detail of the bar is visible in the clear section of the lens - so please select domed and fluted lenses from the lens 'drop down' option box if you would like Bi-flex bars. Reflector finish - Silvered reflectors as standard, providing the best standard of lighting performance with incandescent bulbs and LEDs. Mounting angle - These lamps can be specified with upright mounting or with the ball shell mounting base fitted at 35 degrees from upright, to valance. Stoneguards - The lamps are supplied without a stoneguard as standard. We offer a choice of fitted stoneguard options, all hand made in brass with chrome plate finish - our CA800 series flat guards, with 18 gauge spun rims, traditional pattern brackets and polished stainless steel nuts and fixings, or hinged 20 gauge stoneguard rims with hand made hinges and bottom catch fittings. All styles of guard feature 16 swg brass wire mesh (approx. 12mm aperture) soft soldered into the guard rim. The mesh on hinged guards is flat for diffused glass lenses and slightly domed for the fluted lenses. Lighting options - The lamps come fitted with our 853 part number BA15D double contact bulb holder, which can slide in and out the socket in the rear of the reflector to aid focussing of the light beam. Please select your desired lighting option: incandescent bulb - 6V 36/36W, 12V 36/36W or 12V 45/35W, or LED light - 6 & 12V Dip & Main with integral lens (diffused glass lens only) or dip/main 6V or 12V LED with shield (any lens and Bi-flex) Please configure your lamp using the drop down option boxes below. Your selections should produce a final product cost for the pair of lamps, including you chosen options. If you require any assistance then please email or contact us by 'phone. For further information on the specification and manufacture of Vintage Supplies' reproduction headlamp range, please visit www.tobyvintage.com While we aim to hold all componentry in stock, these lamps are assembled and finished to order, so please allow at least two weeks for this work prior to despatch, or get in touch for a delivery date for your exact configuration.

An authentic reproduction of the Lucas L166 type headlamp used on a number of British cars in the 1930's and 40's, including those manufactured by Daimler, Humber, MG, Rover, SS Triumph and Wolseley. This lamp has the same rim and reflector as the L165, but a significantly deeper lamp shell. Supplied as a PAIR of lamps. We have worked with our specialist suppliers to re-tool these lamps from original Lucas lamp patterns. The bodies are spun in 18 gauge brass, with the reflector and bulb holder assembly, lamp rim and hinged stone guard rim (where fitted) in 20 gauge brass. The ball shell mounting base is lost wax cast in bronze. We finish all components in our workshop before polishing and plating, then final assembly. Lamp and stone-guard rims are chrome plated and shells are either chrome plated or finished with a gloss black powder coat. A polished brass/bronze finish is available by special request. The reflector finish is silver plate as standard. Cast bronze rim catch arrangement as original. We offer a choice of incandescent or LED bulbs. Overall diameter 9 7/8", glass aperture 8 5/8", overall depth (excluding lens) 9". Offered with an upright mounting arrangement and with ball shell mounting base fitted at 35 degrees from upright, to the valance. The lamp shell is fitted with a chrome on brass 'Toby' medallion, as used on our finest period lamp and mirror recreations. 'Toby Mitchell - London NW1' is the mark Vintage Supplies has applied to its authentic reproductions of select CAV and Lucas pattern lamps and mirrors for over 30 years, continuing the manufacture and development of John Mitchell’s high quality 'Toby' branded product range. These superb lamps are available with a range of options: Black or Chrome shell - in line with the original 'Ebony black/chrome rim' or 'All chrome' offer, we manufacture these lamps with a gloss black powder coated shell and chrome rim, or all chrome finish.  'Difusa' or Domed and Fluted lens - Diffused glass lenses have a finely textured surface on the inner side of the lens, that makes the beam more uniform, wider and deeper. They stop only a small amount of light compared to plain, clear glass lenses. They give a softer appearance, with light that covers a wider area, noting it does not pentrate as far.  Diffused glass lenses were replaced by fluted lenses, which refract a wide angle beam of light while providing good long distance illumination. We also offer a fully fluted 'U' flute design lens for this lamp. Lamps with flat, diffused glass lenses feature an angled return on the rim apperture. Lamps with domed and fluted lenses feature a flat rim. Bi-flex bar - This bar, that spans the reflector and obscures the bulb, is cast in bronze then plated. It features a spun and polished aluminium auxiliary reflector on the rear of the bar, to aid long distance illumination. The front centre section houses a polished brass 'Toby' badge, along with BI-FLEX, LONG RANGE wording. Bi-flex bars are only offered with the domed and fluted lens options, so that the centre detail of the bar is visible in the clear section of the lens - so please select domed and fluted lenses from the lens 'drop down' option box if you would like Bi-flex bars. Reflector finish - Silvered reflectors as standard, providing the best standard of lighting performance with incandescent bulbs and LEDs. Mounting angle - These lamps can be specified with upright mounting or with the ball shell mounting base fitted at 35 degrees from upright, to valance. Stoneguards - The lamps are supplied without a stoneguard as standard. We offer a choice of fitted stoneguard options, all hand made in brass with chrome plate finish - our CA800 series flat guards, with 18 gauge spun rims, traditional pattern brackets and polished stainless steel nuts and fixings, or hinged 20 gauge stoneguard rims with hand made hinges and bottom catch fittings. All styles of guard feature 16 swg brass wire mesh (approx. 12mm aperture) soft soldered into the guard rim. The mesh on hinged guards is flat for diffused glass lenses and slightly domed for the fluted lenses. Lighting options - The lamps come fitted with our 853 part number BA15D double contact bulb holder, which can slide in and out the socket in the rear of the reflector to aid focussing of the light beam. Please select your desired lighting option: incandescent bulb - 6V 36/36W, 12V 36/36W or 12V 45/35W, or LED light - 6 & 12V Dip & Main with integral lens (diffused glass lens only) or dip/main 6V or 12V LED with shield (any lens and Bi-flex) Please configure your lamp using the drop down option boxes below. Your selections should produce a final product cost for the pair of lamps, including you chosen options. If you require any assistance then please email or contact us by 'phone. For further information on the specification and manufacture of Vintage Supplies' reproduction headlamp range, please visit www.tobyvintage.com While we aim to hold all componentry in stock, these lamps are assembled and finished to order, so please allow at least two weeks for this work prior to despatch, or get in touch for a delivery date for your exact configuration.

An authentic reproduction of the Lucas L165 type headlamp used on a number of British cars in the 1930's and 40's, including those manufactured by Armstrong Siddeley, Austin,  Daimler, Humber, Lanchester, Morris, Riley, Rover, Singer, Standard, Triumph and Wolseley. Supplied as a PAIR of lamps. We have worked with our specialist suppliers to re-tool these lamps from original Lucas lamp patterns. The bodies are spun in 18 gauge brass, with the reflector and bulb holder assembly, lamp rim and hinged stone guard rim (where fitted) in 20 gauge brass. The ball shell mounting base is lost wax cast in bronze. We finish all components in our workshop before polishing and plating, then final assembly. Lamp and stoneguard rims are chrome plated and shells are either chrome plated or finished with gloss black powder coat. Polished brass/bronze finish is available by special request. The reflector finish is silver plate as standard. Cast bronze rim catch arrangement as original. We offer a choice of incandescent or LED bulbs. Overall diameter 9 7/8", glass apperture 8 5/8", overall depth (excluding lens) 7". Offered with upright mounting arrangement and with ball shell mounting base fitted at 35 degrees from upright, to valance. The lamp shell is fitted with a chrome on brass 'Toby' medallion, as used on our finest period lamp and mirror recreations. 'Toby Mitchell - London NW1' is the mark Vintage Supplies has applied to its authentic reproductions of select CAV and Lucas pattern lamps and mirrors for over 30 years, continuing the manufacture and development of John Mitchell’s high quality 'Toby' branded product range. These superb lamps are available with a range of options: Black or Chrome shell - in line with the original 'Ebony black/chrome rim' or 'All chrome' offer, we manufacture these lamps with a gloss black powder coated shell and chrome rim, or all chrome finish.  'Difusa' or Domed and Fluted lens - Diffused glass lenses have a finely textured surface on the inner side of the lens, that makes the beam more uniform, wider and deeper. They stop only a small amount of light compared to plain, clear glass lenses. They give a softer appearance, with light that covers a wider area, noting it does not pentrate as far.  Diffused glass lenses were replaced by fluted lenses, which refract a wide angle beam of light while providing good long distance illumination. We also offer a fully fluted 'U' flute design lens for this lamp. Lamps with flat, diffused glass lenses feature an angled return on the rim apperture. Lamps with domed and fluted lenses feature a flat rim. Bi-flex bar - This bar, that spans the reflector and obscures the bulb, is cast in bronze then plated. It features a spun and polished aluminium auxiliary reflector on the rear of the bar, to aid long distance illumination. The front centre section houses a polished brass 'Toby' badge, along with BI-FLEX, LONG RANGE wording. Bi-flex bars are only offered with the domed and fluted lens options, so that the centre detail of the bar is visible in the clear section of the lens - so please select domed and fluted lenses from the lens 'drop down' option box if you would like Bi-flex bars. Reflector finish - Silvered reflectors as standard, providing the best standard of lighting performance with incandescent bulbs and LEDs. Mounting angle - These lamps can be specified with upright mounting or with the ball shell mounting base fitted at 35 degrees from upright, to valance. Stoneguards - The lamps are supplied without a stoneguard as standard. We offer a choice of fitted stoneguard options, all hand made in brass with chrome plate finish - our CA800 series flat guards, with 18 gauge spun rims, traditional pattern brackets and polished stainless steel nuts and fixings, or hinged 20 gauge stoneguard rims with hand made hinges and bottom catch fittings. All styles of guard feature 16 swg brass wire mesh (approx. 12mm aperture) soft soldered into the guard rim. The mesh on hinged guards is flat for diffused glass lenses and slightly domed for the fluted lenses. Lighting options - The lamps come fitted with our 853 part number BA15D double contact bulb holder, which can slide in and out the socket in the rear of the reflector to aid focussing of the light beam. Please select your desired lighting option: incandescent bulb - 6V 36/36W, 12V 36/36W or 12V 45/35W, or LED light - 6 & 12V Dip & Main with integral lens (diffused glass lens only) or dip/main 6V or 12V LED with shield (any lens and Bi-flex) Please configure your lamp using the drop down option boxes below. Your selections should produce a final product cost for the pair of lamps, including you chosen options. If you require any assistance then please email or contact us by 'phone. For further information on the specification and manufacture of Vintage Supplies' reproduction headlamp range, please visit www.tobyvintage.com While we aim to hold all componentry in stock, these lamps are assembled and finished to order, so please allow at least two weeks for this work prior to despatch, or get in touch for a delivery date for your exact configuration.

Pair of 5-3/4" free standing headlights WITHOUT side lights. Satin black powder coated steel body, ideal for painting body colour if needed. Fitted with 5 3/4" round domed headlamp lens, without sidelight. These lenses feature the standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs. No bulb included. Either browse the bulb category for your preferred H4 bulb, or select one of our most popular options from the drop down box below. Part numbers B910A (6V Halogen), B472 (12V Halogen), B475 (24V Halogen), H4-150 (12V Halogen upgrade bulbs with up to 150% more light), P43TLED-H43L (6, 12 and 24V, positive and negative earth with integral lens) Classic White LED with projector lens, P43TLED-PP43 (12 and 24V, negative earth) Classic White LED with Heat Sink cooling, P43TLED-PP60 (12 and 24V negative Earth) Bright White LED with Mini Fan cooling. These are ideal for Morgan 3 wheelers, Austin 7's and 7 type kit cars amongst others. PLEASE NOTE if Left Hand Drive (for driving on the right hand side of the road) light units are selected these can only be supplied with the side light function.

Pair of 5 3/4" free standing headlights without sidelights, with a highly polished stainless steel housing and rim. Fitted with 5 3/4" round domed headlamp lens, without sidelight. These lenses feature the standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs. No bulb included. Either browse the bulb category for your preferred H4 bulb, or select one of our most popular options from the drop down box below. Part numbers B910A (6V Halogen), B472 (12V Halogen), B475 (24V Halogen), H4-150 (12V Halogen upgrade bulbs with up to 150% more light), P43TLED-H43L (6, 12 and 24V, positive and negative earth with integral lens) Classic White LED with projector lens, P43TLED-PP43 (12 and 24V, negative earth) Classic White LED with Heat Sink cooling, P43TLED-PP60 (12 and 24V negative Earth) Bright White LED with Mini Fan cooling. These are ideal for Morgan 3 wheelers, Austin 7's and 7 type kit cars amongst others. PLEASE NOTE if LHD light units are selected these can only be supplied with the side light function.

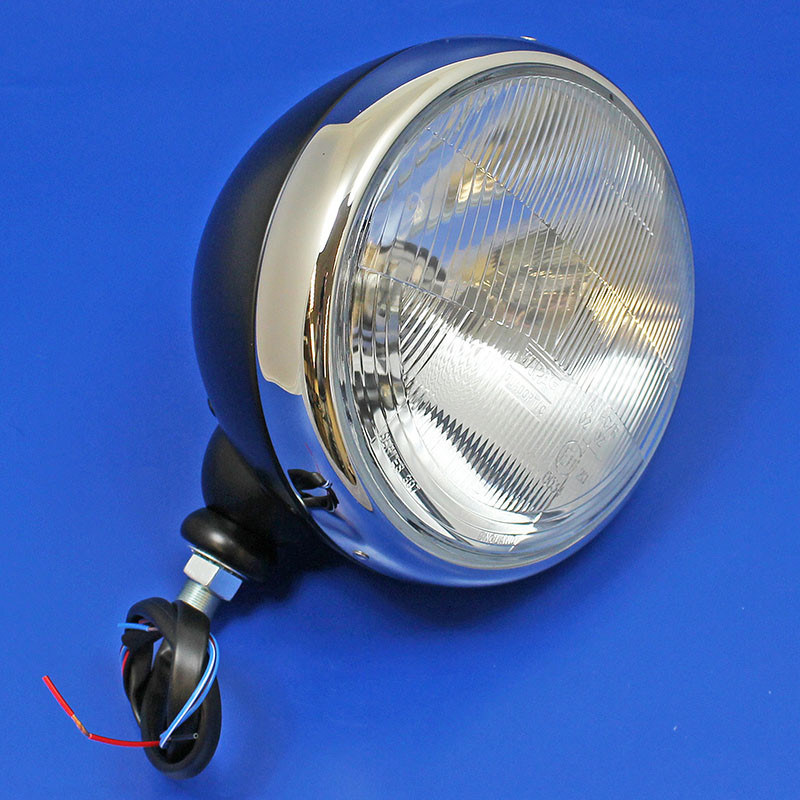

Pair 7" Free Standing Black Headlamps, satin black plastics powder coating body (ideal for painting body colour if needed) and a highly polished stainless steel rim, suitable for many classic and kit cars. We use the high quality Wipac Quadoptic lens that gives a fantastic light output, 7" Round Domed Headlight lens, with or without sidelight. These lenses feature standard H4 P43T fitting and can be fitted with 6V, 12V or 24V bulbs, No Bulb included. Either browse the Bulb category for your preferred H4 bulb, or select one of our most popular options from the drop down box below. Part numbers B910B (6V Halogen), B472 (12V Halogen), B475 (24V Halogen), H4-150 (12V Halogen upgrade bulbs with up to 150% more light), P43TLED-H43L (6, 12 and 24V, positive and negative earth with integral lens) Classic White LED with projector lens, P43TLED-PP43 (12 and 24V, negative earth) Classic White LED with Heat Sink cooling, P43TLED-PP60 (12 and 24V negative Earth) Bright White LED with Mini Fan cooling. Side light bulb options B117B (6V capless), B501 (12V capless) B117LEDW-A  (6, 12 and 24V, positive and negative earth).
