Replacement shaped rubber bush at end of early Armstrong friction shock absorbers. Approximate dimensions base (foot print) 46mm x 23mm, height 37mm, 26mm wide at widest point with 12mm hole through centre. This rubber bush is supplied to us in a roll and cut in-house, the length may vary (minimum 46mm). You will need to cut the slit into the base.

Transfer only for 506 models. Red, black, white colours. High quality sticker with strong adhesive.

Transfer only for 502 model. Red, black white colours. High quality sticker with strong adhesive.

Andre Hartford shock absorber model 302M, powder coated, ready to fit. Two blades into three blades at friction end 4" (100mm) diameter, rolled edges, early type double star springs on the front with pressure disc plate on the rear, pressed rivet ends with rubber bush & inner tube. Illustration shows 302M with 9” equal arms as fitted on the front of Alvis 12/50, 12/60, Silver Eagle and SP20. Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard equal length arm units only. Additional charges apply for unequal length arms and 1/2" measurements: Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal leadtime before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering

Suitable for the medium size vehicle of approx 1500kg weight. Enamel finish, ready to fit. External round pressure bag fitted under Hydro dial with copper pipe connection fitted, one blade into two blades at friction end 4 1/2" (104mm) diameter. Minimum arm (blade) lengths 4 1/2", maximum length 10". Single arm ( blade) normally the longest on un-equal arm units.  Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard equal length arm units only. Additional charges apply for unequal length arms and 1/2" measurements: Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal lead time before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering.

Andre Hartford shock absorber model 302S, powder coated, ready to fit. One blade into two blades at friction end 4" (100mm) diameter, rolled edges, early type double star springs on the front with pressure disc plate on the rear, pressed rivet ends with rubber bush & inner tube. Please specify 5 to 8" arm length. Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard equal length arm units only. Additional charges apply for unequal length arms and 1/2" measurements: Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal leadtime before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering

Type 101 shock absorber indicator dial. 89mm diameter, F Repusseau & Cie. Paris. Black print on aluminium.

Andre Hartford shock absorber model 298, powder coated, ready to fit. Two blade into three blades at friction end with four wooden discs 3-1/2" (89mm) diameter, rolled edges, early type star spring on the front with pressure disc plate on the rear, pressed rivet ends with rubber bush & inner tube. Please specify 5 to 10" arm length. Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard equal length arm units only. Additional charges apply for unequal length arms and 1/2" measurements: Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal lead time before despatch is about 6/8 weeks. occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering.

Andre Hartford shock absorber model 298, powder coated, ready to fit. One blade into two blades at friction end with two wooden discs 3-1/2" (89mm) diameter, rolled edges, early type star spring on the front with pressure disc plate on the rear, pressed rivet ends with rubber bush & inner tube. Specify 5" to 10" arm lengths. Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard equal length arm units only. Additional charges apply for unequal length arms and 1/2" measurements: Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal lead time before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering.

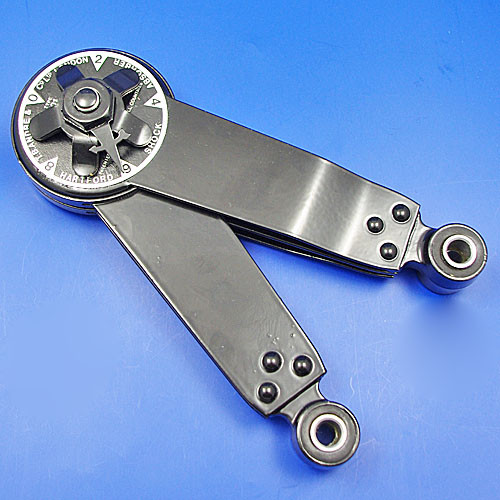

Repusseau Hartford shock absorber model 101M, powder coated, ready to fit. Four blades into two blades with two dirt bands at friction end 4" (100mm) diameter, fitted with European cast eye end with offset bushes (offered in 40mm long or 42mm long). Please specify arm lengths between 5" and 10" arm lengths. Repusseau shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard equal length arm units only. Additional charges apply for unequal length arms and 1/2" measurements: Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal lead time before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering.

Andre Telecontrol pump reservoir. Dimensions: overall length 6.25", main body 4.8" long, 1.75" diameter, end caps 1.8" diameter. Supplied with T piece & non return ball & spring.

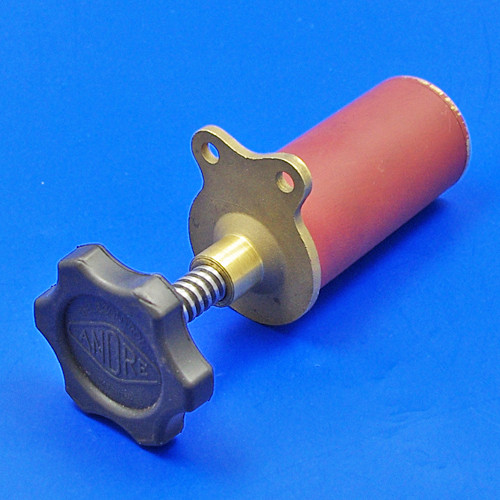

Andre telecontrol dash hand control unit, complete with knob and pre-filled internal regulator bag and housing. Dimensions:- body length 4.562", body diameter 1.75", mounting hole centres 1.15". To fit, pre-fill pipes leading to regulator, unwind knob to release pressure, remove blanking plug (keep this end uppermost so as to not lose fluid) and connect pipework, bleed system as a brake system. USE ONLY 30% GLYCERINE/WATER OR ANTIFREEZE MIX. DO NOT USE BRAKE FLUID, MINERAL OIL, ATF etc.

Andre telecontrol front and rear pressure gauges for mounting in dash panel. White digits on black background. Chrome rim. Gauge body diameter 1.575", bezel diameter 1.73". -- rear pressure gauge

Andre telecontrol front and rear pressure gauges for mounting in dash panel. White digits on black background. Chrome rim. Gauge body diameter 1.575", bezel diameter 1.73". -- front pressure gauge

Andre Hartford shock absorber model 506M, matt aluminium finish, ready to fit. Two blades into three blades at friction end 4 1/2" (102mm) diameter. Later type star springs on front and rear, with rubber bush & inner tube. Illustration shows 506M with 7” equal arms, without brass disc's which are normally fitted. Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard equal length arm units only. Additional charges for unequal length arms in inches and half inches - please see drop down box. Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal lead time before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering.

Andre Hartford shock absorber model 502M, matt aluminium finish, ready to fit. Two blades into three blades at friction end 3.1/2" (88mm) diameter. Later type star springs on front and rear, with rubber bush & inner tube. Illustration shows 502M with 6” equal arms. Please pecify 5" to 8" arm lengths. Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard equal length arm units only. Additional charges apply for unequal length arms and 1/2" measurements: Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal lead time before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering

Andre Hartford shock absorber model 306M, powder coated, ready to fit. Two blades into three blades at friction end 5" (125mm) diameter, rolled edges, early type double star springs on the front with pressure disc plate on the rear, one arm with pressed rivet end with rubber bush & inner tube, and tripe mounting plate 3 ½” (88mm) wide with 4 mounting holes 2 ½” (63mm) centres across, 1 3/8” (35mm) centres vertically. Mounting plates are an extension of the two outer and centre discs, the outer plates being folded over inwards . Illustration shows 306M with 6” single arm with mounting plates as fitted on the rear of MG K3, N and J4 range. Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard arm length measured in full inches. An extra £9 additional charge applies for an arm length measured in 1/2 inches. For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal lead time before despatch is about 6/9 weeks. occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering

Andre Hartford shock absorber model 306M, powder coated, ready to fit. Two blades into three blades at friction end 5" (125mm) diameter, rolled edges, early type double star springs on the front with pressure disc plate on the rear, pressed rivet ends with rubber bush & inner tube. Illustration shows 306M with 6” equal arms as fitted on the front of MG K3, N and J4 range. Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard equal length arm units only. Additional charges apply for unequal length arms and 1/2" measurements: Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 2.50kg per unit before any packaging weight. Normal lead time before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering

Andre Hartford shock absorber model 306S, powder coated, ready to fit. One blade into two blades at friction end 5" (125mm) diameter, rolled edges, early type double star springs on the front with pressure disc plate on the rear, one arm with pressed rivet end with rubber bush & inner tube, and single mounting plate 3-1/2" (88mm) wide with 4 mounting holes 2-1/2" (63mm) centres across, 1-3/8” (35mm) centres vertically. Mounting plate is an extension of the centre disc. Illustration shows 306S with 6” single arm with mounting plate as fitted on the rear of MG J & P range. Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard arm length measured in full inches. An extra £9 additional charge applies for an arm length measured in 1/2 inches. For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal lead time before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering

Andre Hartford shock absorber model 306S, powder coated, ready to fit. One blade into two blades at friction end 5" (125mm) diameter, rolled edges, early type double star springs on the front with pressure disc plate on the rear, pressed rivet ends with rubber bush & inner tube. Illustration shows 306S with 6” equal arms as fitted on the front of MG J & P range. Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard equal length arm units only. Additional charges apply for unequal length arms and 1/2" measurements: Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal lead time before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering .

Suitable for the medium size vehicle of approx 2000kg or competition vehicles. Enamel finish, ready to fit. Two blades into three blades at friction end 4.1/2" (102mm) diameter, minimum arm (blade) length 4.1/2", maximum length 10". Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard equal length arm units only. Additional charges apply for unequal length arms and 1/2" measurements: Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal lead time before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering.

Early style arrow pointer -- Suits later type units

Early style arrow pointer -- Suits early units with larger, 9/16" diameter centre bolt

Silentbloc bush 22.2mm outer diameter x 9.5mm inner diameter, 50.0mm inner length, 44.6mm outer length

Steel inner sleeve tube to be used with 1164R bush, fits over standard mounting studs, dimensions 41mm long x 19mm diameter x 14mm bore.

Round Andre Telecontrol pressure bag. Fits on outside of Telecontrol unit under the metal rounded cover. 91mm diameter, 9mm thick at edge, 17mm thick at centre.

Rectangular type expander bag for shock absorber. 98mm long x 44mm wide x 9mm thick, with 19mm diameter in centre.

Type 103 shock absorber indicator dial 101mm diameter, T.B. Andre & Co Ltd London. Black print on aluminium.

Type 101 shock absorber indicator dial. 89mm diameter, T.B. Andre & Co Ltd London. Black print on aluminium.

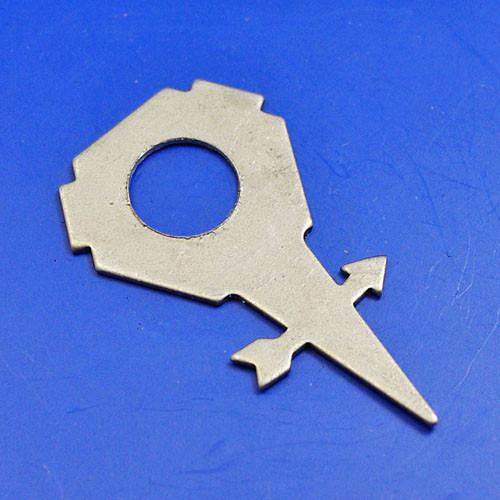

Locking tag/pointer.

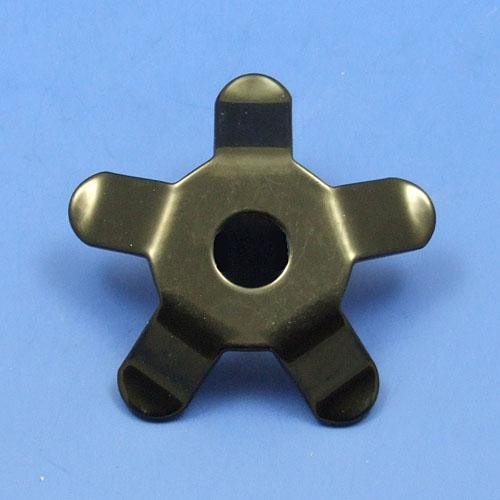

Early style small rounded end pressure spring, approx. 75mm diameter, as fitted to type 302 shock absorber units

Early style small rounded end pressure spring, in black enamal approx. 70mm dia, with 14mm hole, as fitted to type 298 shock absorber units

Pressure spring, 70mm diameter, used on shock absorber model 502. 1/2" centre hole.

Small raised edge printed Andre Hartford Shock Absorber London dial, 63mm diameter. Colour black, red and white on tinned backing plate. Used on motorcycles etc.

Silentbloc rubber/metal bush 1 1/4“ (31.83mm) outside diameter x 9/16" (14.37mm) inside diameter x 1 5/8" (40mm) long.

Silentbloc rubber/steel bush 1 1/8" (28.65mm) outside x 9/16” (14.37mm) inside x 1 9/16" (40mm) long.

Silentbloc rubber/steel bush 15/16" (24mm) outside x 7/16" (11mm) inside x 1 1/8" (28mm) long.

Steel rivets to secure the centre washer and brass friction disc (types 12611, 859 and 12602) to the steel backing. Per packet of 3 pieces.

Centre washer - pressure fit or riveted to backplate

Locking tag for bolt head.

Early style large rounded end pressure spring, approx. 90mm diameter, as fitted to type 306 shock absorber units

Pressure spring, 90mm diameter, used on model 506 shock absorbers. 1/2" centre hole.

Later style large wood friction disc - 106mm OD x 39mm ID - Available in approximately 3.5mm (thin) or 5.0mm (thick) thickness --

Later style large wood friction disc - 106mm OD x 39mm ID - Available in approximately 3.5mm (thin) or 5.0mm (thick) thickness --

Later type small wood friction disc/wood - 82mm OD x 41mm ID  -Available in approximate 3.5mm (thin) or 5.00mm (thick) thickness. --

Later type small wood friction disc/wood - 82mm OD x 41mm ID  -Available in approximate 3.5mm (thin) or 5.00mm (thick) thickness. --

Early type wood friction disc. 112mm x 38mm x 5mm thick

Early style wood friction disc - 88mm x 38mm x 5mm thick

Early type wood friction disc. 80mm x 38mm x 5mm thick

Early type brass "rivet-on" friction disc. 115mm diameter with single folded up edge. For rivet pack, see part number 893.

Early type brass "rivet-on" friction disc. 90mm diameter with single turned up edge. For rivet pack, see part number 893.

Early type brass "rivet-on" friction disc. 82mm diameter with single turned up edge. For rivet pack, see part number 893.

Later style large brass disc. Double return outer edge, large hole 40mm diameter, outer diameter 115mm.

Later style small brass friction disc. Double return outer edge, large hole 40mm diameter, outer size 90mm diameter.

Type 103 shock absorber indicator dial. 103mm diameter, F Repusseau & Cie. Paris. Black print on aluminium

Type 100bis shock absorber indicator dial. 80mm diameter, F Repusseau & Cie. Paris. Black print on aluminium.

Supplied complete with nut, 2 7/8" (74mm) long for M type shock absorber models

Supplied complete with nut, 2" (51mm) long for 'S' type shock absorber models

Supplied complete with nut, 2 1/8" (54mm) long, used on type 'S' shock absorber units

Supplied complete with nut, 3" (70mm) long. Used on type 'M' shock absorber units

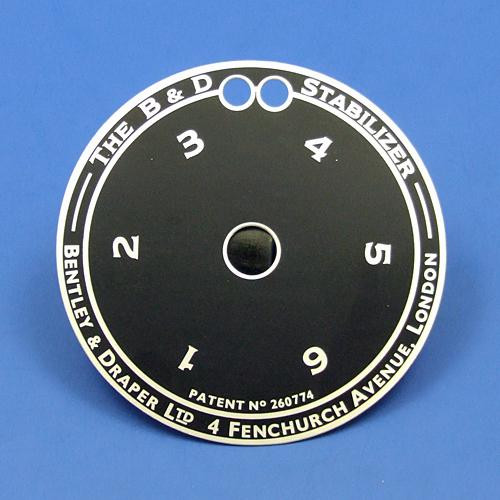

90mm diameter, printed black on tin plate - The B & D Stabilizer, Bentley & Draper Ltd, 4 Fenchurch Avenue, London. Only one dial used per shock absorber unit.

115mm diameter, printed black on tin plate - The B & D Stabilizer, Bentley & Draper Ltd, 4 Fenchurch Avenue, London. Only one dial used per shock absorber unit

Red, white & black printed indicator dial with raised edge. 105mm diameter. Andre Hydro telecontrol shock absorber type HT33. Used on square bag type. Note three holes.

Replacement Andre telecontrol control regulator adjuster knob. As original pattern with brass fitting sleeve.

Replacement dash control regulator bladder bag, with outer brass sleeve housing. This fits inside the dashboard housing.

Type HFC, white print on black domed dial, 82mm diameter. Used on external round pressure bag type.

Large raised edge indicator dial for type 506. Diameter 108mm

Small raised edge indicator dial for type 502/198. Diameter 82mm.

Special tapered castle nut for Andre Hartford shock absorbers, mounting on to chassis bolt. Chamfered base, deep slots for cross pinning, thread 1/2" BSF

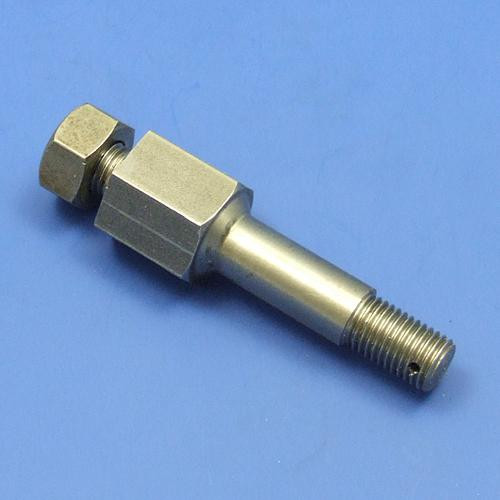

Mounting bolt for Andre Hartford shock absorber, 1/2" BSF threads both ends, 9/16" shaft for bush, hexagon 11/16" (17mm) long.

Mounting bolt for Andre Hartford shock absorber, 1/2" BSF threads both ends, 9/16" shaft for bush, hexagon 1/8" (3mm) long.

Mounting bolt for Andre Hartford shock absorber, 1/2" BSF threads both ends, 9/16" shaft for bush, hexagon 15/16" (24mm) long.

Suitable for the medium size vehicle of approx 1500kg weight. Enamel finish, ready to fit. One blade into two blades at friction end 4.1/2" (104mm) diameter, minimum arm (blade) lengths 4 1/2", maximum length 10". Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard equal length arm units only. Additional charges apply for unequal length arms and 1/2" measurements: Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal lead time before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering

Suitable for smaller vehicles, up to approx 1000kg weight. Enamel finish, ready to fit. One blade into two blades at friction end 3.1/2" (89mm) diameter, minimum arm (blade) length 4.1/2", maximum length 9". Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown on the website is for standard equal length arm units only. Additional charges apply for unequal length arms and 1/2" measurements: Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 1.5kg per unit before any packaging weight.  Normal delay before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering

Suitable for the medium size vehicles of approx 1500kg or competition vehicles. Enamel finish, ready to fit. Two blades into three blades at friction end 3.1/2" (89mm) diameter, minimum arm (blade) length 4 1/2", maximum length 9". Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown on the website is for standard equal length arm units only. Additional charges apply for unequal length arms and 1/2" measurements: Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal lead time before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering

Andre Hartford shock absorber model 306M, powder coated, ready to fit. Two blades into three blades at friction end 5" (125mm) diameter, rolled edges with centre shroud which protects friction material, early type double star springs on the front with pressure disc plate on the rear, pressed rivet ends with pinch bolt holding the rubber bush & inner tube. Illustration shows 306M with 10” equal arms as fitted to Bentley. Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard equal length arm units only. Additional charges apply for unequal length arms and 1/2" measurements: Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 2.50kg per unit before any packaging weight. Normal lead time before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering

Rubber block bush for insertion directly into end of shock absorber arm, approx dimensions 36mm long x 30mm diameter x 15mm bore, requires a certain amount of dexterity when fitting.

Suitable for the medium size vehicles of approx 2000kg or competition vehicles. Enamel finish, ready to fit. to fit. External round pressure bag fitted under Hydro dial with copper pipe connection fitted, two blades into three blades at friction end 4 1/2" (102mm) diameter Minimum arm (blade) length 4.1/2", maximum length 10". Two blade arm normally the longest on un-equal arm units. Andre Hartford shock absorbers are made to specific order against specified arm lengths requested. Please note that the price shown is for standard equal length arm units only. Additional charges apply for unequal length arms and 1/2" measurements: Arm lengths measured in half inches, both same lengths - £9 extraArm lengths measured in full inches, but different lengths - £9 extraArm lengths measured in 1/2 inches and different lengths - £18.00 extra For post and packaging calculations allow a weight of approx 2.10kg per unit before any packaging weight. Normal lead time before despatch is about 6/8 weeks. Occasionally we do have some units already assembled and ready on the shelf - contact us prior to ordering.
