Straight in line tap with 1/4" BSP threads on the inlet and outlet - the inlet is fitted with an integral filter and the outlet has a 60 degree cone seat and is fitted with a 1/4" BSP solder nut and nipple for 1/4" OD pipe. Body length (including threads, excluding filter and solder nut and nipple) 45mm and diameter 19mm. Solder type nut and nipples can only be fitted to the inlet of the tap. Please note that the inlet has a flat seat under the thread, which can be screwed into a tank and sealed with a folded copper washer.

Hexagonal push on/off in line tap with 1/4" and 1/4" BSP inlet and outlet threads. 1/4" BSP thread into tank with integral filter element, 1/4" BSP outlet thread with 60 degree cone seat, complete with solder nut and nipple type fittings for 1/4" OD copper pipe. Overall dimensions 50mm long (including threads, excluding filter and solder nut and nipple) and 16mm diameter. Solder type nut and nipples can only be fitted to the outlet of the tap. The 1/4" BSP thread tank side under the hexagon has a flat seat under, so can be screwed into a tank and sealed with a folded copper washer.

Hexagonal push on/off in line tap with 1/8" and 1/4" BSP threads. 1/8" BSP thread into tank with integral filter element, 1/4" BSP outlet thread with 60 degree cone seat, complete with solder nut and nipple type fittings for 1/4" OD copper pipe. Overall dimensions 50mm long (including threads, excluding filter and solder nut and nipple) and 16mm diameter. Solder type nut and nipples can only be fitted to the 1/4" BSP end of the tap. The 1/8" BSP thread under the hexagon has a flat seat under, so can be screwed into a tank and sealed with a folded copper washer.

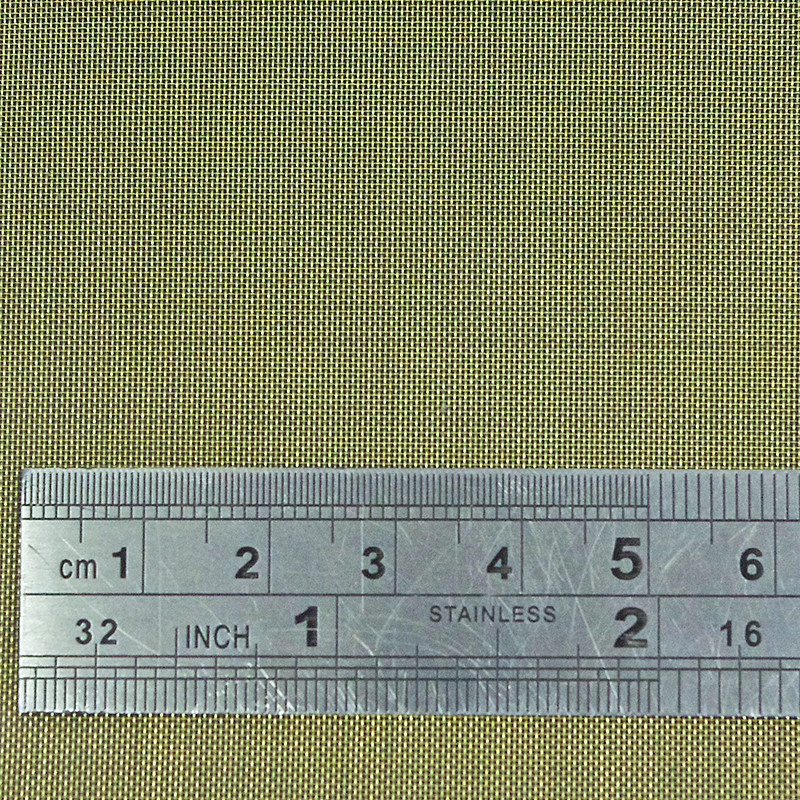

Very fine woven brass mesh (wire cloth). Size 60 no. mesh - 0.17mm wire diameter, 0.25mm aperture. A fine mesh suitable for use as a fuel filter in petrol and diesel fuel tanks and filter assemblies. Also found in some fuel taps with integral filter mesh, carburettors and float chambers. Sold in 4" squares (100mm x 100mm) though as this product is cut to order off a roll, we can supply orders placed for multiple (nominal 100mm x 100mm) pieces as a single piece. E.g. if you order a quantity of four, you will receive a piece measuring 200mm by 200mm.

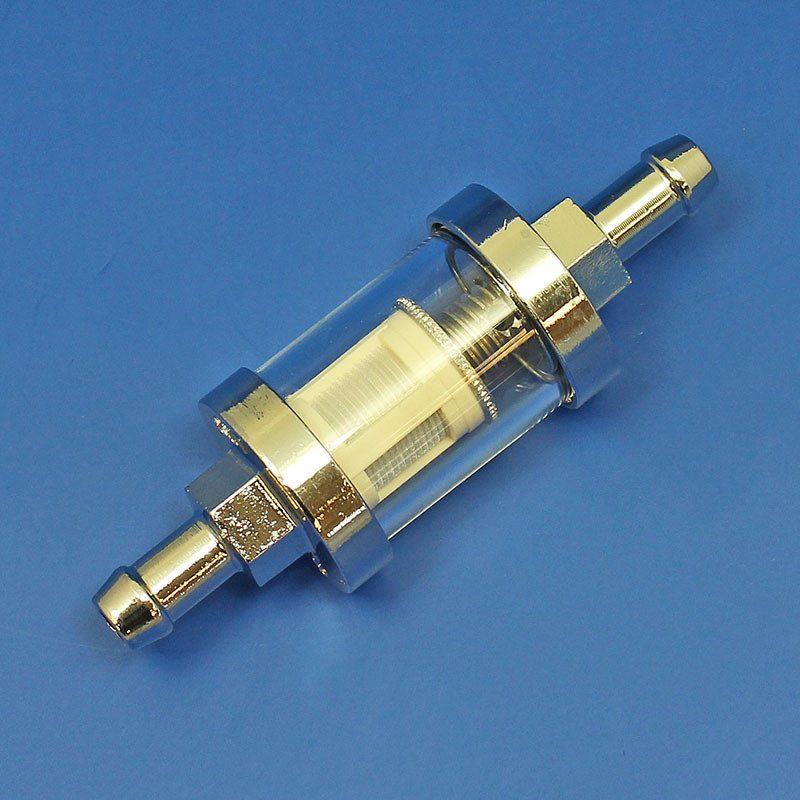

Toughened glass body in line fuel filter, body approx 28mm diameter x 77mm long overall (pipe tails in addition). The ends can be unscrewed and taken apart for washing out or changing the filter liner as necessary. 40 micron nylon mesh filter screen. Use on low pressure systems - max 10psi. Also available in MICRO size - 40mm long, excluding pipe tails.

Malpassi Metal Filter Element for FPR006/7 & FPRV8 Filter Kings Specifications:-Length :- 50mmO/D :- 48mmI/D :- 18mmMicron :- 55Material :- Stainless Steel Mesh

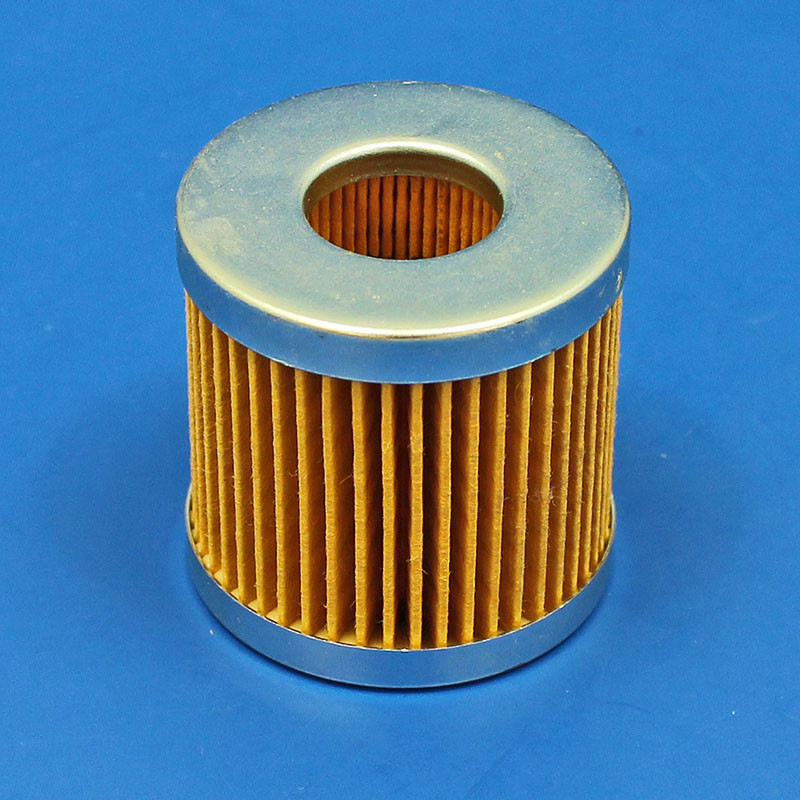

Malpassi Filter Element for FPR006/7 & FPRV8 Filter Kings Specifications:- Length :- 50mm O/D :- 48mm I/D :- 18mm Micron :- 8 Material :- Paper

Metal Filter Element for FPR004/5 Filter Kings Specifications:-Length :- 42mmO/D :- 42mmI/D :- 18mmMicron :- 55Material :- Stainess Steel Mesh

Malpassi Paper Filter Element for FPR004/5 Filter Kings Specifications:- Length :- 42mm O/D :- 42mm I/D :- 18mm Micron :- 8 Material :- Paper

Large disposable, metal-bodied filter for use with solid-state petrol pumps. 1/8" NPT thread and 5/16" push on spigot. The main body is a diameter of 44mm, length 60mm. Overall length 94mm.

Toughened glass body in line fuel filter, MICRO body approx 28mm diameter x 40 mm long overall. The ends can be unscrewed and taken apart for washing out or changing the filter element as necessary. 40 micron nylon mesh screen. Use on low pressure systems, max 10psi

40 micron nylon mesh micro filters - 3 pieces in a pack - Filters - 20mm long, 17mm diameter

Toughened glass body inline fuel filter with 6mm - 1/4 inch ends. MICRO body approx 28mm diameter x 40 mm long overall (pipe tails in addition). The ends can be unscrewed and taken apart for washing out or changing the filter element as necessary. 40-micron nylon mesh screen. Use on low-pressure systems, max 10psi

Toughened glass body inline fuel filter with 8mm - 5/16 end stubs. MICRO size body approx 28mm diameter x 40 mm long overall (pipe tails in addition). The ends can be unscrewed and taken apart for washing out or changing the filter element as necessary. 40 micron nylon mesh screen. Use on low-pressure systems, max 10psi.

Small disposable, metal bodied filter for use with solid state petrol pumps. 1/8" NPT thread and 5/16" push on spigot. Body is 19mm diameter x 40mm Overall length is 72mm

Replacement glass bowl for CA1026 fuel filter assembly, overall dimensions 58mm tall, 53.6mm outside diameter at the top of the bowl, 46mm inside diameter at the top.

Replacement rubber seal for CA1026 fuel filter assembly

Replacement brass gauze for CA1026 filter assembly

Replacement filter element for CA1026 filters

Brass union with filter gauze. 1/4"BSP thread with filter gauze, fitted with 7/16" x 19TPI nut and nipple for 1/4'' O/D pipe.

Toughened glass body in line fuel filter, body approx 28mm diameter x 77mm long overall (pipe tails in addition). The ends can be unscrewed and taken apart for washing out or changing the filter liner as necessary. 40 micron nylon mesh filter screen. Use on low pressure systems - max 10psi. Also available in MICRO size - 40mm long, excluding pipe tails. -- Three pieces in a pack 17mm OD, 39mm Long

Toughened glass body in line fuel filter, body approx 28mm diameter x 77mm long overall (pipe tails in addition). The ends can be unscrewed and taken apart for washing out or changing the filter liner as necessary. 40 micron nylon mesh filter screen. Use on low pressure systems - max 10psi. Also available in MICRO size - 40mm long, excluding pipe tails. --

Toughened glass body in line fuel filter, body approx 28mm diameter x 77mm long overall (pipe tails in addition). The ends can be unscrewed and taken apart for washing out or changing the filter liner as necessary. 40 micron nylon mesh filter screen. Use on low pressure systems - max 10psi. Also available in MICRO size - 40mm long, excluding pipe tails. --

Toughened glass body in line fuel filter, body approx 28mm diameter x 77mm long overall (pipe tails in addition). The ends can be unscrewed and taken apart for washing out or changing the filter liner as necessary. 40 micron nylon mesh filter screen. Use on low pressure systems - max 10psi. Also available in MICRO size - 40mm long, excluding pipe tails. --

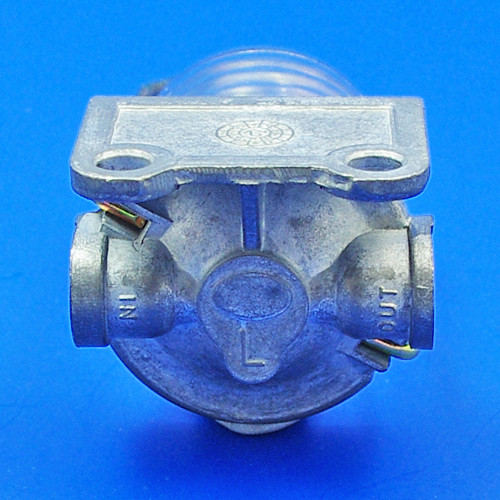

Glass bowl in line fuel filter, with mounting bracket (hole centres approx 40mm centres). Detatchable glass bowl held by U bracket.  This filter is offered with right or left inlet port (as viewed with the mounting bracket away at back). Fitting options: CA1026A & B -  1/2" UNF threaded ports (overall dimensions height 120mm, width 75mm, depth 58mm). No fittings supplied - double ended union with nuts and nipples, or male union nuts 1/4" or 5/16" can be supplied at extra cost. CA1026A-BSP and CA1026B-BSP - Ports tapped out to 1/4" BSP, supplied with double ended unions, nuts and nipples to suit either 1/4" or 5/16" pipe - please selection option from dropdown box under the individual parts.

Glass bowl in line fuel filter, with mounting bracket (hole centres approx 40mm centres). Detatchable glass bowl held by U bracket.  This filter is offered with right or left inlet port (as viewed with the mounting bracket away at back). Fitting options: CA1026A & B -  1/2" UNF threaded ports (overall dimensions height 120mm, width 75mm, depth 58mm). No fittings supplied - double ended union with nuts and nipples, or male union nuts 1/4" or 5/16" can be supplied at extra cost. CA1026A-BSP and CA1026B-BSP - Ports tapped out to 1/4" BSP, supplied with double ended unions, nuts and nipples to suit either 1/4" or 5/16" pipe - please selection option from dropdown box under the individual parts. --

Glass bowl in line fuel filter, with mounting bracket (hole centres approx 40mm centres). Detatchable glass bowl held by U bracket.  This filter is offered with right or left inlet port (as viewed with the mounting bracket away at back). Fitting options: CA1026A & B -  1/2" UNF threaded ports (overall dimensions height 120mm, width 75mm, depth 58mm). No fittings supplied - double ended union with nuts and nipples, or male union nuts 1/4" or 5/16" can be supplied at extra cost. CA1026A-BSP and CA1026B-BSP - Ports tapped out to 1/4" BSP, supplied with double ended unions, nuts and nipples to suit either 1/4" or 5/16" pipe - please selection option from dropdown box under the individual parts. --

Glass bowl in line fuel filter, with mounting bracket (hole centres approx 40mm centres). Detatchable glass bowl held by U bracket.  This filter is offered with right or left inlet port (as viewed with the mounting bracket away at back). Fitting options: CA1026A & B -  1/2" UNF threaded ports (overall dimensions height 120mm, width 75mm, depth 58mm). No fittings supplied - double ended union with nuts and nipples, or male union nuts 1/4" or 5/16" can be supplied at extra cost. CA1026A-BSP and CA1026B-BSP - Ports tapped out to 1/4" BSP, supplied with double ended unions, nuts and nipples to suit either 1/4" or 5/16" pipe - please selection option from dropdown box under the individual parts. -- Tapped out to 1/4BSP, supplied with double ended unions, nuts and nipples to suit either 1/4" or 5/16" pipe

Glass bowl in line fuel filter, with mounting bracket (hole centres approx 40mm centres). Detatchable glass bowl held by U bracket.  This filter is offered with right or left inlet port (as viewed with the mounting bracket away at back). Fitting options: CA1026A & B -  1/2" UNF threaded ports (overall dimensions height 120mm, width 75mm, depth 58mm). No fittings supplied - double ended union with nuts and nipples, or male union nuts 1/4" or 5/16" can be supplied at extra cost. CA1026A-BSP and CA1026B-BSP - Ports tapped out to 1/4" BSP, supplied with double ended unions, nuts and nipples to suit either 1/4" or 5/16" pipe - please selection option from dropdown box under the individual parts. -- Tapped out to 1/4BSP, supplied with double ended unions, nuts and nipples to suit either 1/4" or 5/16" pipe

Glass bowl in line fuel filter which has the useful provision of being able to be supported by an additional bracket on to the threaded portion if required, to carry the weight. Available for either 1/4'' or 5/16'' OD pipe - please selct from the option box. Should you break the bowl replacements can be supplied. Approx 115mm deep x 147mm long including 1/4" BSP pipe fittings.
