Re-manufactured replacement armature for Lucas wiper motor CW1, CWH and CWX type units, as used on many vintage and immediate post war vehicles. Dimensions - overall height 50mm, splined drive shaft 5mm diameter x 15mm long, field windings 40mm diameter, armature commutator 15mm diameter x 8mm deep. --

Re-manufactured replacement armature for Lucas wiper motor CW1, CWH and CWX type units, as used on many vintage and immediate post war vehicles. Dimensions - overall height 50mm, splined drive shaft 5mm diameter x 15mm long, field windings 40mm diameter, armature commutator 15mm diameter x 8mm deep. --

Powerful, robust, silent 12 volt wiper motor with 110 degree sweep, which will drive any wiper set. Mounting hole 10mm, shaft size 6mm, matt black plastic cover with switch built in. Shaft length of 4.7" easily shortened. Body approximately 80mm wide x 52mm high x 76mm deep. As mounted with the drive upper, the electrical connections are on the right side viewed from inside the vehicle. Please note - the metric size shaft will require turning to fit or shimming for the imperial size (3/16" and 1/4") wiper arms we offer. Offered with single threaded sleeve mounting or CWX mounting arrangement. -- Our most powerful wiper motor, modified to feature a CWX style mounting arrangement. Supplied with two plastic spacer blocks, cork gasket and chrome plated brass face plate. Side mounting studs supplied with nuts and washers - 38mm between centres, extending 60mm out from the motor face plate. Main drive shaft 4.7" long and 6mm in diameter - will require shim (supplied) to fit wiper arms with 1/4" socket/collet fitting. A great alternative to the no longer available CWX motor.

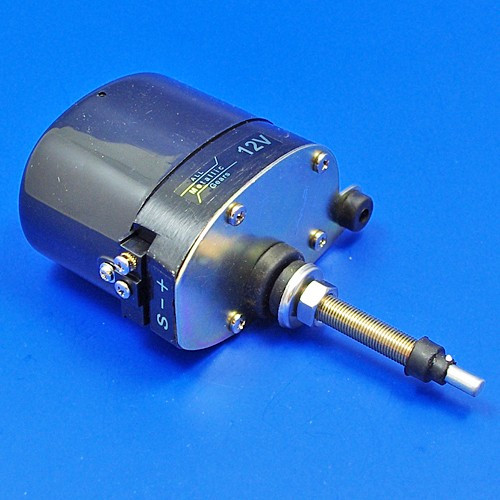

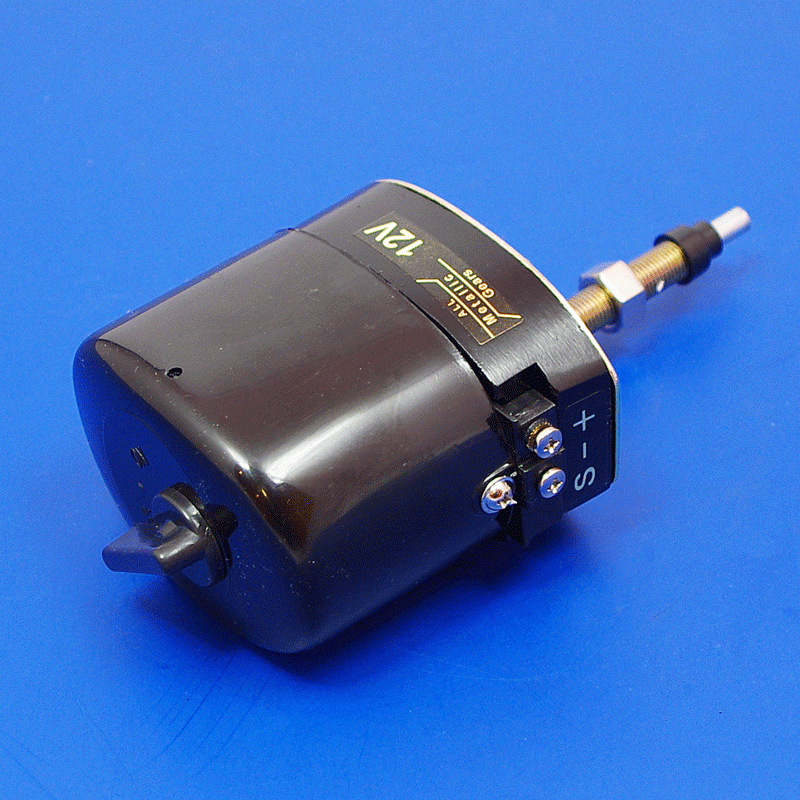

Practical modern wiper motor for continual use, 6 volt or 12 volt. Dull black plastic cover. On/Off switch with 'auto-park'. Central drive offtake 6mm. Requires an 9mm shaft hole through screen, with one or two stabilising mounting points fitted with 6mm ID rubber grommet(s) at centre(s) approx. 45mm from the mounting shaft centre. Body approx 89mm deep overall including switch. Oscillating 110 degree sweep. Length of thread approx 56mm. Please note that this motor has a 6mm shaft and all our shaft fitting wiper arms are for imperial sizes (1/4" and 3/16") - so packing with thin shim material may be required. CWX style mounting option also available, where the front plate is fitted with two mounting studs at 38mm centres either side of the drive shaft, similar to the original Lucas CWX motor mounting arrangement. --

Practical modern wiper motor for continual use. 12 volt. Polished stainless steel cover, will 'auto-park' to one side. Central drive offtake (6mm), requires 8.7mm shaft hole through screen, with one stabilising mounting, body approx 56mm x 80mm wide x 77mm deep. Oscillating 90 degree sweep. Outer shaft approx 61mm long, inner shaft approx 78mm, which may be cut shorter if required. This unit requires a separate switch. Please note - the metric size shaft will require turning to fit or shimming for the imperial size (3/16" and 1/4") wiper arms we offer.

Trico vacuum wiper motor, small size - 100mm wide, 57mm high, 50mm deep, 1/4" shaft, 27mm long beyond plastic spacer including threaded (8mm diameter) section 9mm long. 2mm hole in end of shaft. Chrome handled slide switch. 4.75mm brass connection for tube. Brand new old stock.

Practical modern wiper motor for continual use. 6 volt. Polished stainless steel cover, will 'auto-park' to one side. Central drive offtake (6mm), requires 8.7mm shaft hole through screen, with one stabilising mounting. Body approx 80mm deep x 83mm wide x 58mm deep. Oscillating 110 degree sweep. Shaft approx. 80mm long and may be cut shorter if required. This unit requires a separate switch. Please note - the metric size shaft will require turning to fit or shimming for the imperial size (3/16" and 1/4") wiper arms we offer.

Practical modern wiper motor for continual use, 6 volt or 12 volt. Dull black plastic cover. On/Off switch with 'auto-park'. Central drive offtake 6mm. Requires an 9mm shaft hole through screen, with one or two stabilising mounting points fitted with 6mm ID rubber grommet(s) at centre(s) approx. 45mm from the mounting shaft centre. Body approx 89mm deep overall including switch. Oscillating 110 degree sweep. Length of thread approx 56mm. Please note that this motor has a 6mm shaft and all our shaft fitting wiper arms are for imperial sizes (1/4" and 3/16") - so packing with thin shim material may be required. CWX style mounting option also available, where the front plate is fitted with two mounting studs at 38mm centres either side of the drive shaft, similar to the original Lucas CWX motor mounting arrangement. -- Front plate modified with two mounting studs at 38mm centres either side of the drive, similar to the Lucas CWX motor.

Practical modern wiper motor for continual use, 6 volt or 12 volt. Dull black plastic cover. On/Off switch with 'auto-park'. Central drive offtake 6mm. Requires an 9mm shaft hole through screen, with one or two stabilising mounting points fitted with 6mm ID rubber grommet(s) at centre(s) approx. 45mm from the mounting shaft centre. Body approx 89mm deep overall including switch. Oscillating 110 degree sweep. Length of thread approx 56mm. Please note that this motor has a 6mm shaft and all our shaft fitting wiper arms are for imperial sizes (1/4" and 3/16") - so packing with thin shim material may be required. CWX style mounting option also available, where the front plate is fitted with two mounting studs at 38mm centres either side of the drive shaft, similar to the original Lucas CWX motor mounting arrangement. -- Front plate modified with two mounting studs at 38mm centres either side of the drive, similar to the Lucas CWX motor. For an uprated wiper motor with the same CWX type motor mounting please see part number 479.12CWX

Practical modern wiper motor for continual use, 6 volt or 12 volt. Dull black plastic cover. On/Off switch with 'auto-park'. Central drive offtake 6mm. Requires an 9mm shaft hole through screen, with one or two stabilising mounting points fitted with 6mm ID rubber grommet(s) at centre(s) approx. 45mm from the mounting shaft centre. Body approx 89mm deep overall including switch. Oscillating 110 degree sweep. Length of thread approx 56mm. Please note that this motor has a 6mm shaft and all our shaft fitting wiper arms are for imperial sizes (1/4" and 3/16") - so packing with thin shim material may be required. CWX style mounting option also available, where the front plate is fitted with two mounting studs at 38mm centres either side of the drive shaft, similar to the original Lucas CWX motor mounting arrangement. --

Practical modern wiper motor for continual use, 6 volt or 12 volt. Dull black plastic cover. On/Off switch with 'auto-park'. Central drive offtake 6mm. Requires an 9mm shaft hole through screen, with one or two stabilising mounting points fitted with 6mm ID rubber grommet(s) at centre(s) approx. 45mm from the mounting shaft centre. Body approx 89mm deep overall including switch. Oscillating 110 degree sweep. Length of thread approx 56mm. Please note that this motor has a 6mm shaft and all our shaft fitting wiper arms are for imperial sizes (1/4" and 3/16") - so packing with thin shim material may be required. CWX style mounting option also available, where the front plate is fitted with two mounting studs at 38mm centres either side of the drive shaft, similar to the original Lucas CWX motor mounting arrangement.

Large spring used in Lucas CWX type wiper motors - 6.4mm OD, 34mm free length, 0.6mm wire diameter.

Small spring used in Lucas CWX type wiper motors - 3.6mm OD, 12mm free length, 0.3mm wire diameter.

Carbon brush with copper wire connection for Lucas type CWX wiper motors. 11mm x 5mm x 4.25mm

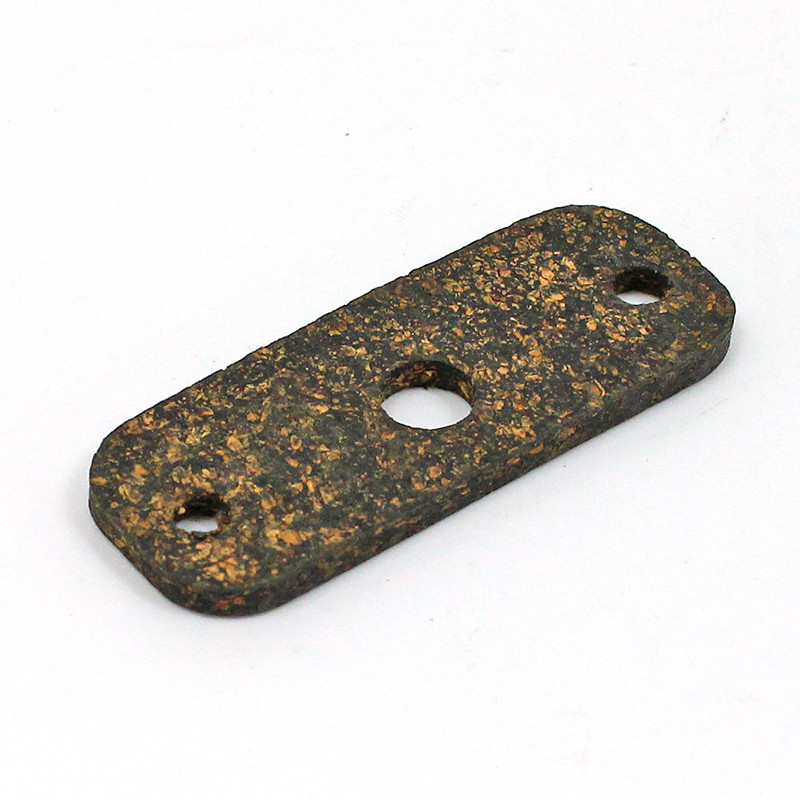

Cork spacer/gasket for Lucas CWX type motors. 48mm long x 19mm wide with radiused corners, 3mm thick. Two mounting holes 4mm diameter, 39mm between centres. Central hole 6.5mm diameter. All 3 hole centres offset accross width at 10.5mm.

Plastic spacer for Lucas CWX type motors. 48mm long x 19mm wide with radiused corners, 6.5mm thick. Two mounting holes 4.75mm diameter, 39mm between centres. Central hole 10.5mm diameter. All 3 hole centres offset accross width at 10.5mm.

Lucas CWX type wiper motor spindle. Made from brass. 165mm long, 5mm diameter, 6mm long threaded section at one end, three cross holes 1.5mm diameter at 20mm, 34mm and 88mm from the threaded end.

Crome finished die cast lever arm for rear of Lucas CWX type wiper motor case. 36mm long arm with locating pin in end. 27mm total depth, 5.25mm bore through spindle, with 6mm counter bore 9mm deep in top. New old stock.

Powerful, robust, silent 12 volt wiper motor with 110 degree sweep, which will drive any wiper set. Mounting hole 10mm, shaft size 6mm, matt black plastic cover with switch built in. Shaft length of 4.7" easily shortened. Body approximately 80mm wide x 52mm high x 76mm deep. As mounted with the drive upper, the electrical connections are on the right side viewed from inside the vehicle. Please note - the metric size shaft will require turning to fit or shimming for the imperial size (3/16" and 1/4") wiper arms we offer. Offered with single threaded sleeve mounting or CWX mounting arrangement. -- Standard mounting, with threaded sleeve around 6mm drive shaft. Supplied with rubber washer and nut set for threaded shaft.

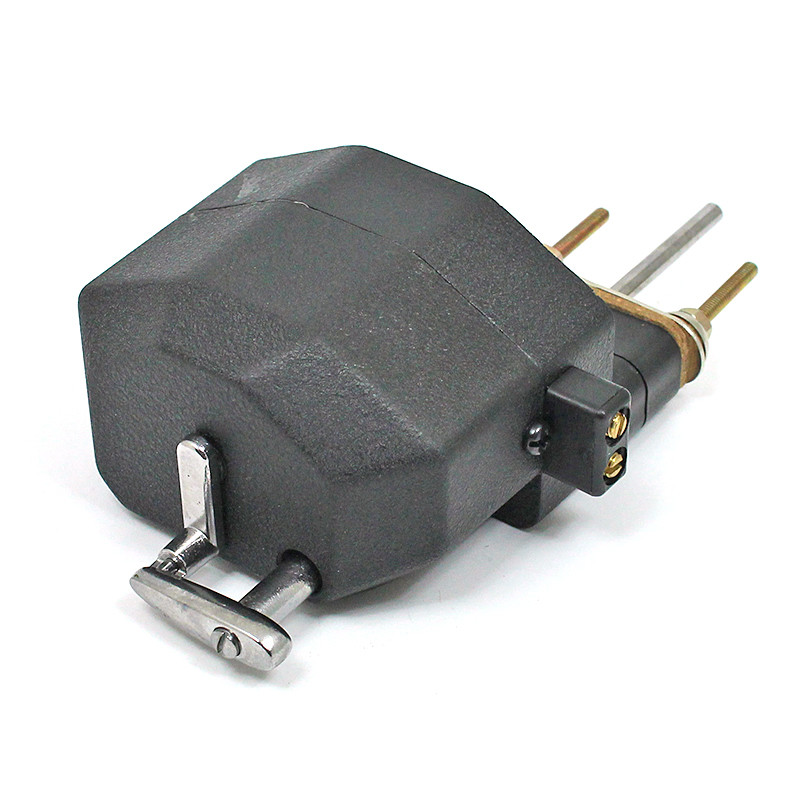

Wiper motor, equivalent to Lucas type CW1 and CWX type. 6 and 12 volt. As fitted to many early cars for mounting on to windscreen frame. Only 6 volt currently available - which can be fitted on 12v vehicles in conjunction with a with a DC12V/24V to DC6V 15A 90W waterproof step-down voltage regulator available on ebay for approximately £15 - which worked very well in testing here, with a powerful wiper action. Re-manufactured item, incorporating on/off switch and 'wiper park' facility. Black crackle finish. Body size approx 90mm wide x 56mm high x 68mm deep. Knobs add 20mm to depth. Drive shaft approx 5mm, mounting studs at 38mm centres. Approx sweep of 125 degree.

Wiper motor, equivalent to Lucas type CW1 and CWX type. 6 and 12 volt. As fitted to many early cars for mounting on to windscreen frame. Only 6 volt currently available - which can be fitted on 12v vehicles in conjunction with a with a DC12V/24V to DC6V 15A 90W waterproof step-down voltage regulator available on ebay for approximately £15 - which worked very well in testing here, with a powerful wiper action. Re-manufactured item, incorporating on/off switch and 'wiper park' facility. Black crackle finish. Body size approx 90mm wide x 56mm high x 68mm deep. Knobs add 20mm to depth. Drive shaft approx 5mm, mounting studs at 38mm centres. Approx sweep of 125 degree.  -- 6 volt unit. Can also fit on 12v vehicles in conjunction with a with a DC12V/24V to DC6V 15A 90W waterproof step-down voltage regulator available on ebay for approximately £15. Worked very well in testing here, with powerful action.

Wiper motor, equivalent to Lucas type CW1 and CWX type. 6 and 12 volt. As fitted to many early cars for mounting on to windscreen frame. Only 6 volt currently available - which can be fitted on 12v vehicles in conjunction with a with a DC12V/24V to DC6V 15A 90W waterproof step-down voltage regulator available on ebay for approximately £15 - which worked very well in testing here, with a powerful wiper action. Re-manufactured item, incorporating on/off switch and 'wiper park' facility. Black crackle finish. Body size approx 90mm wide x 56mm high x 68mm deep. Knobs add 20mm to depth. Drive shaft approx 5mm, mounting studs at 38mm centres. Approx sweep of 125 degree.  -- 12 volt unit - can use 656.6v unit with a DC12V/24V to DC6V 15A 90W waterproof step-down voltage regulator available on ebay for approximately £15.

Black vacuum wiper system tubing, 1/8" (3.25mm) ID x 5/16" (8mm) OB with fine ribs.

Wiper motor stop plate as fitted to CW1, CWX and CWH screen mounted wiper motors, restricts wiper arm sweep. Made from 2.4mm thick powered coated steel, face plate 63mm wide x 18mm tall with two 6mm wide x 38mm long stop bars. Three holes in the face plate, two securing outer holes and one centre hole for wiper motor drive shaft.

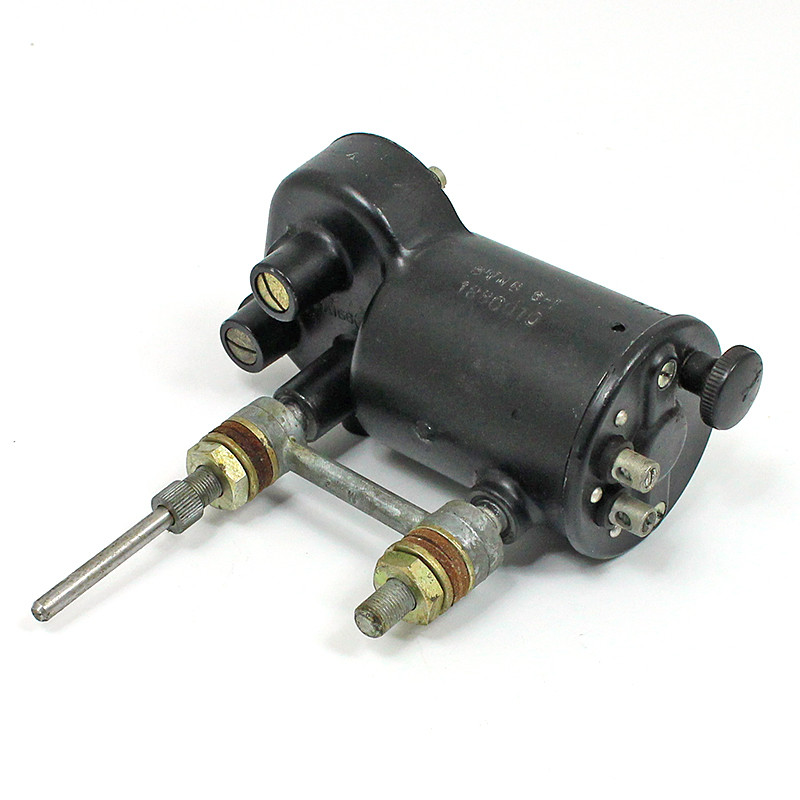

CAV wiper motor, 6 volt and 12 volt stocked with inbuilt on/off switch on end, 24 volt usually stocked without switch. Good quality 'new old' stock. Black finish. Approx 125mm overall length. Mounting bolts at 59mm centres. Please note that we test run these units before despatch. --

CAV wiper motor, 6 volt and 12 volt stocked with inbuilt on/off switch on end, 24 volt usually stocked without switch. Good quality 'new old' stock. Black finish. Approx 125mm overall length. Mounting bolts at 59mm centres. Please note that we test run these units before despatch. --

CAV wiper motor, 6 volt and 12 volt stocked with inbuilt on/off switch on end, 24 volt usually stocked without switch. Good quality 'new old' stock. Black finish. Approx 125mm overall length. Mounting bolts at 59mm centres. Please note that we test run these units before despatch. -- 12 volt CAV wiper units are no longer available so we supply the 24V CAV motor unit with a small 12V (9 to 20V) input to 24V output step up DC converter. Converter output is 24V and 3A (72W).The converter is 42mm x 36mm x 18mm and needs to be installed in a suitable location in the power circuit to the motor.

CAV wiper motor, 6 volt and 12 volt stocked with inbuilt on/off switch on end, 24 volt usually stocked without switch. Good quality 'new old' stock. Black finish. Approx 125mm overall length. Mounting bolts at 59mm centres. Please note that we test run these units before despatch.

3 x 1/4" diameter stud wiper motor fixing for Lucas CR and CRT wiper motors. Equivalent to Lucas part number 741583, overall dimensions 53mm at widest x 75mm long.

Re-manufactured replacement armature for Lucas wiper motor CW1, CWH and CWX type units, as used on many vintage and immediate post war vehicles. Dimensions - overall height 50mm, splined drive shaft 5mm diameter x 15mm long, field windings 40mm diameter, armature commutator 15mm diameter x 8mm deep.

Plastic spacer for Lucas CWX type motors complete with metal spindle tube. 48mm long x 19mm wide with radiused corners, 13mm thick. Mounting holes 4.75mm diameter with counterbore recess 6.25mm diameter, 39mm between centres. Pressed in metal spindle tube 13mm long with clearance hole for spindle. All 3 hole centres offset accross width at 10.5mm.
