Metal headlamp bowl for standard 7" Lucas 700 series type light units. Two adjuster type. Supplied with metal back shell, chrome retaining rim holder and adjusters. Includes nest to body gasket.

High quality stem bolt cup for headlamp mounting. Companion part to STEMBOLTKIT but compatible with many other headlamp stem bolts. Chrome finish of machined part. Good weight and finish. 38mm max outer diameter, 28mm main inner cup diameter, 15.4mm inner bolt hole diameter. 14mm overall depth, 12mm recess depth.

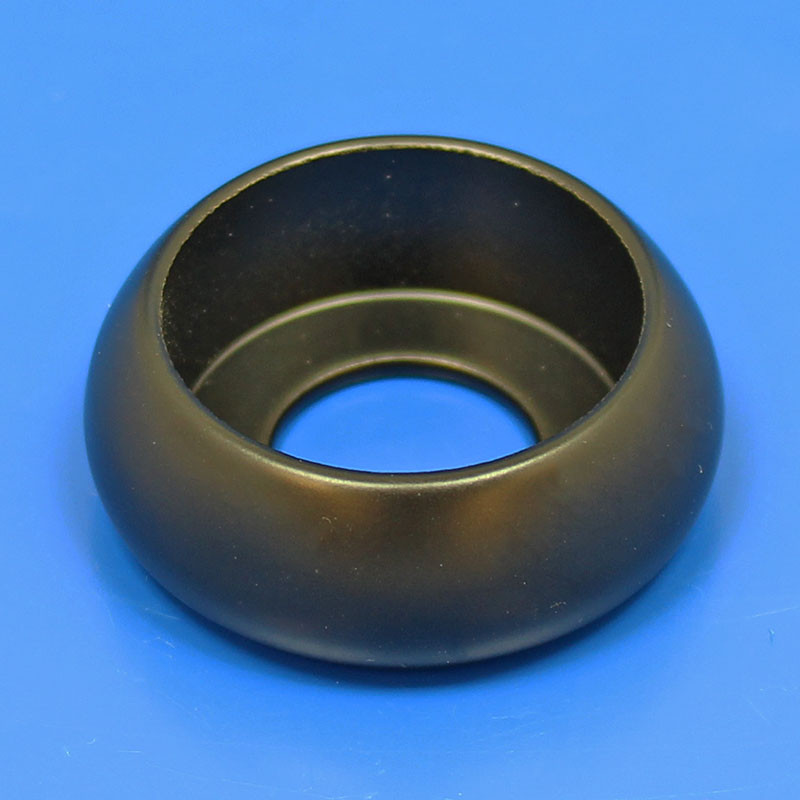

High quality stem bolt cup for headlamp mounting. Companion part to STEMBOLT kit but ompatible with many other headlamp stem bolts. Black half gloss powder coated finish of machined part. Good weight and finish. 38mm max outer diameter, 28mm main inner cup diameter, 15.4mm inner bolt hole diameter. 14mm overall depth, 12mm recess depth.

Stem bolt, shakeproof washer and nut used in free standing headlights such as our 5 3/4" 1267 and and 7" AS700 part number series lamps. Excudes cup mount - please see part numbers STEMBOLTCUPB and STEMBOLTCUPC for black and chrome options.

Headlamp mounting bolt for P80 and RB160 type lamps. Thread 1/2" x 26 tpi (fine thread) as original item. Measures approx 85mm long x 13mm thread diameter (thread runs for 24mm).

Brass headlamp stud mounting nut for Lucas RB160, P100, P80 etc. type lamps. Thread 1/2" x 26 tpi. Equivalent to Lucas part number 500357

Hexagonal nut for many Lucas type sidelamps. 7/16" x 26 tpi (very fine thread) approx 11mm bore.

Hexagonal brass nut for headlamp, 5/8" x 26 tpi (fine thread). Approx 16mm bore. 10mm deep. 13/16" AF.

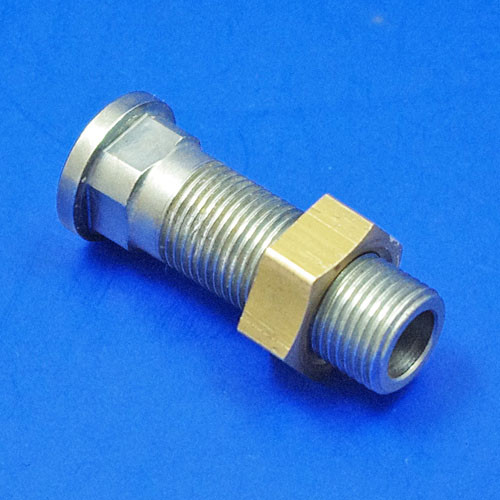

Lamp mounting bolt - hollow. Thread 7/16" x 26 tpi (fine thread) as original. Measures approx 36mm long x 11mm thread diameter. Supplied with hexagon nut. Used on various Lucas spot and sidelamps.

Headlamp mounting bolt and nut for Lucas P100 type lamps. Thread 1/2" x 26 tpi (fine thread) as original item. Measures approx 105mm long x 13mm thread diameter (thread runs for 28mm), head diameter 22mm with a 12.5mm square cut under the head. Supplied with brass nut.

Headlamp mounting bolt - hollow, used on many CAV type lamps. Thread 5/8" x 26 tpi (fine thread) as original item. Measures approx 50mm long x 16mm thread diameter.

Headlamp mounting bolt - hollow, used on Butler type lamps. Thread 5/8" x 26 tpi ( ine thread). Measures approx 68mm long x 16mm thread diameter.

Headlamp mounting bolt - hollow, with loose collar. Thread 5/8" x 26 tpi (fine thread) as original item. Measures approx 50mm long x 16mm thread diameter.

Headlamp mounting bolt - hollow. Thread 5/8" x 26 tpi (fine thread) as the original item. measures approx 56mm long x 16mm thread diameter.

Plastic nest for 5 3/4" light units - includes nest to body gasket. Suitable for light unit part numbers LA1014, LA1015, LA1016 and LA1017 and many other 5 3/4" light units.

Open backed 7" plastic nest (open backed version of part number S5400) used for pop up headlights or where rear space is limited. Includes nest to body gasket.

Shallow dome head lamp base repair kit. Approx. 11mm diameter across head of bolt, stem approx. 4.5mm thread x 12mm long. Polished stainless steel, supplied with hex nuts. Per packet of 12 bolt and nut/lock washer assemblies. Also suitable for fixing bonnet panels to hinge.

Nest with black plastic back shell for 7" light units - includes nest to body sealing ring/gasket, plated retaining rim holder and adjusters. This is a direct replacement for the Lucas type metal nest (see part numbers 357A and 357B) and suits nearly all 7" (700 series) light units.

Metal headlamp bowl for standard 7" Lucas 700 series type light units. Three adjuster version. Supplied with metal back shell, chrome retaining rim holder and adjusters.
