Red reflector with a shallow surround equivalent to Lucas type RER5, flat faced rubber back with screw. Choice of chromium, nickel or polished brass rim. Overall diameter of base approx 53mm.

Dipping reflector pivot used on Lucas two piece dipping reflectors. Spring steel 'P' clip and ball bearing holds inner refector bowl and outer reflector rim togther, allowing the inner reflector to pivot on the ball when moved by the EDS dipping module/return spring. 'P' clip 12.75mm wide, 30.5mm maximum length, 7mm hole one side of clip, 2mm deep dish for ball on other side, 3.25mm wide slot and 11mm inner diameter of 'P'. 1/4" diameter chrome plated steel ball bearing. Sold EACH.

Small self adhesive reflector 55mm diameter, supplied as a pair

E marked red rear reflector on black plastic mounting plate with 10mm long M5 stud supplied complete with nut and washer.

E marked red rear reflector on black plastic mounting plate with 10mm long M6 stud supplied complete with nut and washer.

Red reflector disc, 40mm diameter, will fit our 394, 167, 872 and 240 reflectors.

Amber reflector disc, 40mm diameter, alternative to red disc, will fit our 394, 167, 872 and 240 reflectors.

Large rimmed reflector, with nickel rim, approx 71mm diameter overall. Single centre screw fitting. Equivalent to Lucas type RER14. Rubber backing has slight curve to follow radius of panel

Large rimmed reflector, with chrome rim, approx 71mm diameter overall. Single centre M5 screw fitting. Equivalent to Lucas type RER14. Rubber backing has slight curve to follow radius of panel.

Very high quality backlight crystal glass round reflector lens, manufactured in transparent deep amber glass, 57mm diameter with 2mm recess around the edge which is 3mm thick, total thickness 6mm. Smooth front face, rear has a multi faceted surface.

Very high quality backlight crystal glass round reflector lens, manufactured in transparent deep red glass, 57mm diameter with 2mm recess around the edge which is 3mm thick, total thickness 6mm. Smooth front face, rear has a multi faceted surface.

Very high quality backlight crystal glass round reflector lens, manufactured in transparent deep red glass, 54mm diameter with 1mm recess around the edge which is 2.2mm thick, total thickness 9.2mm. Smooth front face, rear has a multi faceted surface.

Very high quality backlight crystal glass round reflector lens, manufactured in transparent deep red glass, 40mm diameter with 1mm recess around the edge which is 2.1mm thick, total thickness 6.6mm. Smooth front face, rear has a multi faceted surface.

Very high quality backlight crystal glass round reflector lens, manufactured in transparent deep red glass, 52mm diameter with 1mm recess around the edge which is 2.8mm thick, total thickness 7.25mm. smooth front face, rear has a multi faceted surface with 15mm bulls eye at the top.

Very high quality backlight crystal glass round reflector lens, manufactured in transparent deep red glass, 52mm diameter with 1mm recess around the edge which is 2.8mm thick, total thickness 7.25mm. Smooth front face, rear has a multi faceted surface.

Very high quality backlight crystal glass round reflector lens, manufactured in transparent deep red glass, 85mm diameter with 2mm recess around the edge which is 3.6mm thick, total thickness 8mm. Smooth front face, rear has a multi faceted surface.

Red reflector, diameter 58mm, integral threaded stud fixing.

Rear red reflector with metal surround with rear mounting stud and nut supplied. Approx 42mm diameter.

Lucas type RER25 Round red reflector with deep chromium surround, rubber back, flat, screw fixing. Approx 51mm base diameter. Also offered with a polished brass or nickel plate finished rim. --

Lucas type RER25 Round red reflector with deep chromium surround, rubber back, flat, screw fixing. Approx 51mm base diameter. Also offered with a polished brass or nickel plate finished rim. --

Lucas type RER25 Round red reflector with deep chromium surround, rubber back, flat, screw fixing. Approx 51mm base diameter. Also offered with a polished brass or nickel plate finished rim. --

Large flat back rubber surround reflector approx 90mm diameter. Screw fixing around edge, for those who want reflectors that can be seen. Particularly suits commercial applications

Angled rubber red reflector, equivalent to Lucas type RER2, for mounting on to sloping rear wings etc. Base measure approx 74mm diameter. We have a limited stock of original Lucas manufactured items, which are marked 'LUCAS' on the long slope edge (240-orig) as well as the re-manufactured items assemblies (240) --

Angled rubber red reflector, equivalent to Lucas type RER2, for mounting on to sloping rear wings etc. Base measure approx 74mm diameter. We have a limited stock of original Lucas manufactured items, which are marked 'LUCAS' on the long slope edge (240-orig) as well as the re-manufactured items assemblies (240)

Re-manufactured Lucas type reflector with metal surround (42mm dia) and stepped steel mounting bracket. Aluminium spinning with black metal painted side mounting bracket (7mm hole)

Flat rubber surround for vertical surfaces equivalent to Lucas type RER6. Self tapping screw for mounting supplied, approx 48mm base diameter.

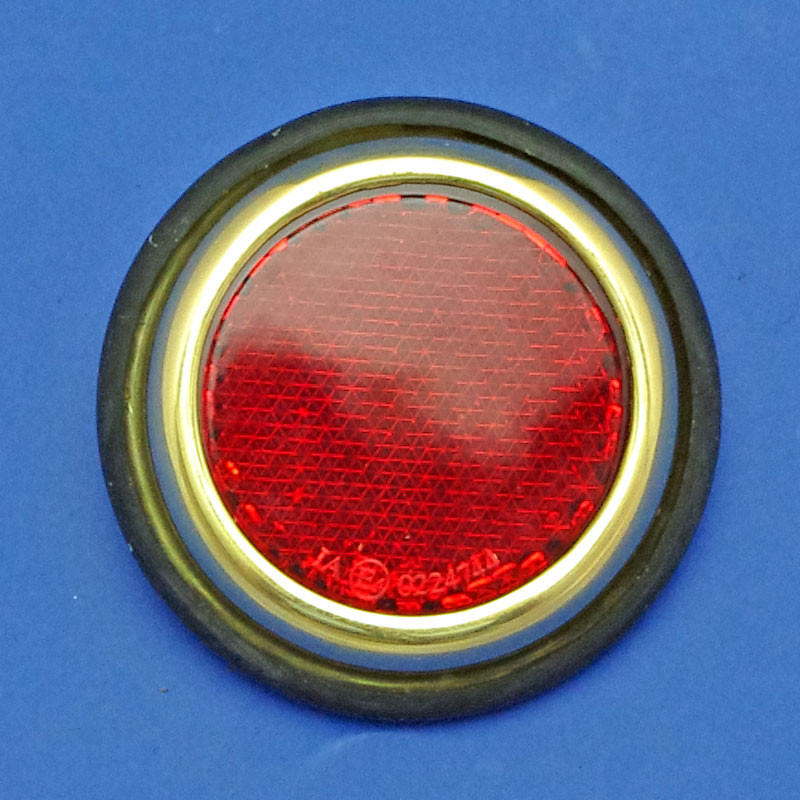

Red reflector with a shallow surround equivalent to Lucas type RER5, flat faced rubber back with screw. Choice of chromium, nickel or polished brass rim. Overall diameter of base approx 53mm. -- Red reflector with brass rim

Red reflector with a shallow surround equivalent to Lucas type RER5, flat faced rubber back with screw. Choice of chromium, nickel or polished brass rim. Overall diameter of base approx 53mm. -- Red reflector with nickel rim

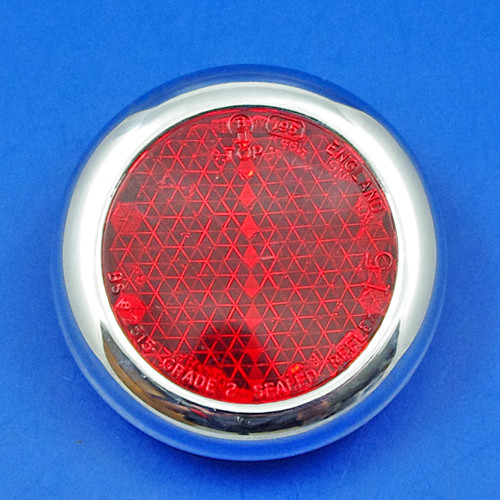

Red reflector with a shallow surround equivalent to Lucas type RER5, flat faced rubber back with screw. Choice of chromium, nickel or polished brass rim. Overall diameter of base approx 53mm. -- Red reflector with chrome rim

Angled rubber red reflector, equivalent to Lucas type RER2, for mounting on to sloping rear wings etc. Base measure approx 74mm diameter. We have a limited stock of original Lucas manufactured items, which are marked 'LUCAS' on the long slope edge (240-orig) as well as the re-manufactured items assemblies (240) --

Large self adhesive reflector 80mm diameter, supplied as a pair

Red reflector with chrome rim. 89 mm x 43 mm. As fitted to Triumph GT6 from 1968 to 1970 and Austin Healey Sprite/MG Midget, and Morgan cars. E marked

Rectangular self adhesive 104mm x 51mm x 7mm.

Lucas type RER25 Round red reflector with deep chromium surround, rubber back, flat, screw fixing. Approx 51mm base diameter. Also offered with a polished brass or nickel plate finished rim.

A small reflector with five bright 12v red LEDs behind the lens, can be used as additional tail or brake light. 37mm diameter approx.
